Specifications
Tr-dimension Composite Geonet for Drainage1.Excellent drainage function
2.High tensile strength
Tr-dimension Composite Geonet for Drainage
Description

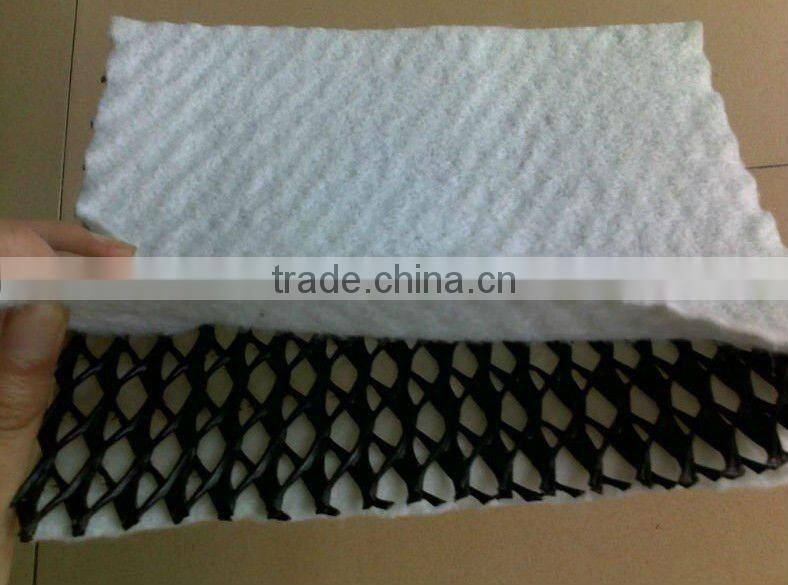

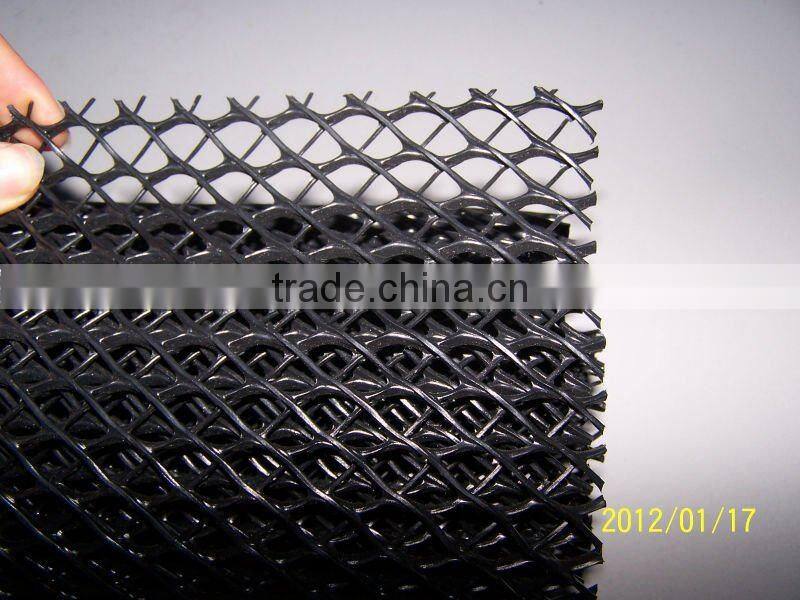

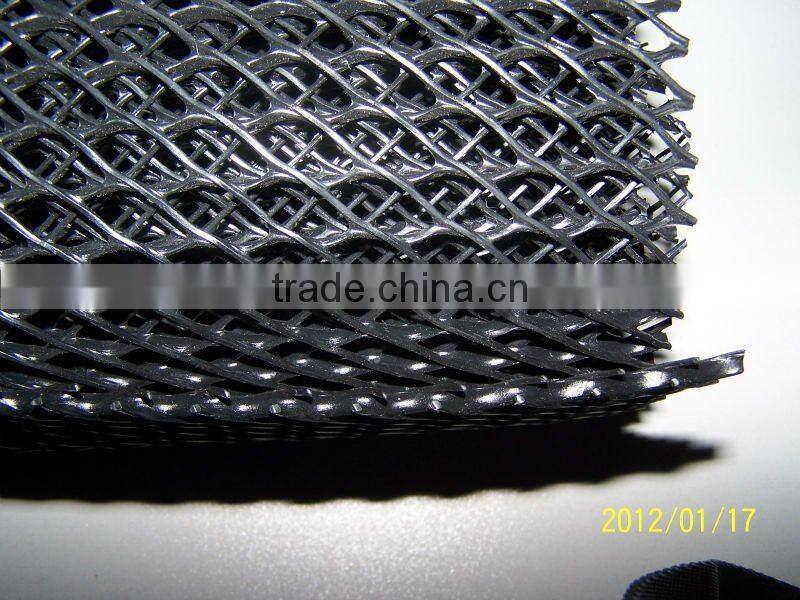

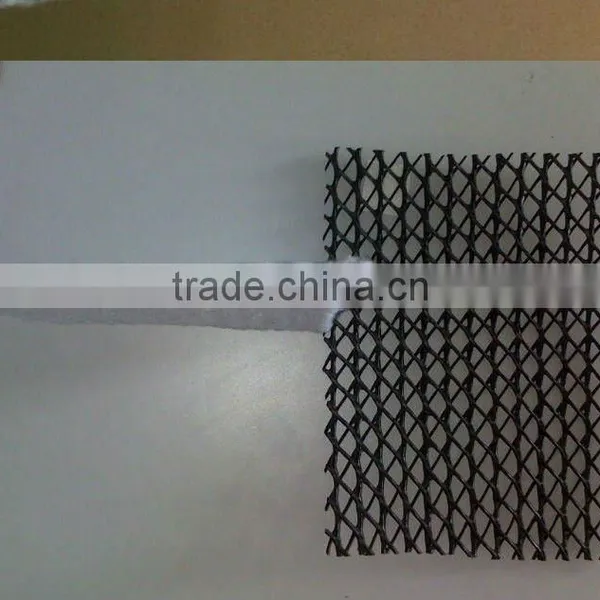

Tr-dimension composite geonet for drainage is made of a unique tri-dimension geonet adhibited geotextile on both sides.it has the property of geotextile(filtration function ) and geonet (drainage and protection ) and provide a function system"filtration-drainage-protection".the core of net with its unique tri-dimension structure can bear higher compressing load in construction and remain the certain
thickness,provide good water conductivity.
Application
1pass through strict quaility control production line and have stable performance and good property of conducting water .
2.light ,no more extral load ,anti-pill,anti-compress,anti-impact and can prevent geomembrane from damage .
Width 4-6m
Specification membrane thickness 0.2mm-0.8mm; protective geotextile 100g/m2-800g/m2 (produced by our factory, conforming to the related national standard).
Table1 Basic Technological Requirement
Serial number Items Indices Allowance, %
1 Mass-area ratio, g/m2 According to design or contractual specifications -10
2 Width, cm According to design or contractual specifications -1.0
3 Breaking strength 1),KN/m According to design or contractual specifications -5 Vertically and horizontally
4 Tearing extensibility % Adherence to specification 30~100 Vertically and horizontally
5 Ripping strength 1), KN According to design or contractual specifications -8 Vertically and horizontally
6 CBR bursting strength, KN According to design or contractual specifications -5
7 Stripping strength 2), N/cm 6 Not below the standard Vertically and horizontally
8 Resistance to hydrostatic pressure, Mpa According to design or contractual specifications Not below the standard
9 Permeability coefficient, cm/s According to design or contractual specifications Adherence to specification
1) For the strength requirements of common short-fiber needling nonwovens/polyethylene composite geomembrane,
2) If the sample is tested hard to predict its stripping and not beyond the high strength base material and membrane material, it will be regarded as qualified one
