Specifications
Geonet-geotextile Drainage Geocomposite1.Quickly remove subsurface water from pavement.
2.Excellent drainage performance
Geonet-geotextile Drainage Geocomposite

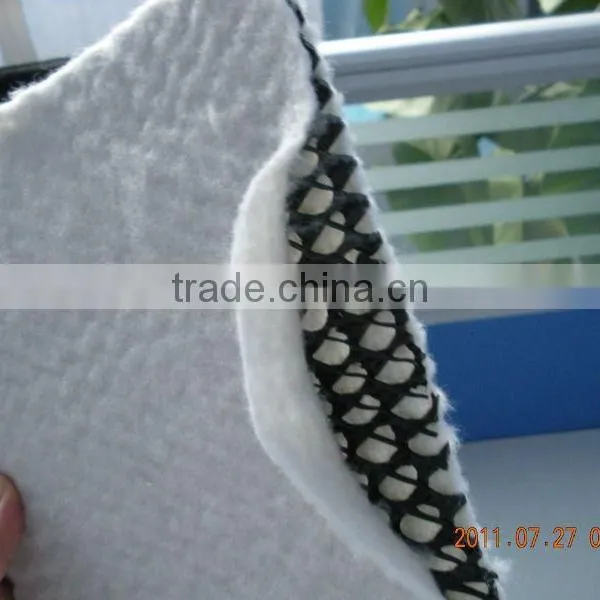

Geonet-geotextile Drainage Geocomposites are engineered to replace costly, conventional open graded aggregate and/or perforated- pipe subsurface drainage systems. The Geonet-geotextile Drainage Geocomposite is created by laminating a filtration geotextile on one or both sides of a Geonet. Geocomposite Drainages have reached acceptance as state-of-the-practice because they provide sufficient in-place drainage and offer reduced material cost, installation time and design complexity over conventional systems.
Technical parameter
|
Item |
Unit |
|
|||||
1200g |
1400g |
1600g |
1800g |
2000g |
||||
1 |
Compound Weight of Unit Area |
g/m2 |
≥1200 |
≥1400 |
≥1600 |
≥1800 |
≥2000 |
|
2 |
Compound Thickness |
mm |
≥6.0 |
≥7.0 |
≥8.0 |
≥9.0 |
≥10.0 |
|
3 |
Compound Tensile Strength |
KN/m |
≥16.0 |
≥16.0 |
≥16.0 |
≥16.0 |
≥16.0 |
|
4 |
Compound Hydraulic Conductivity |
m2/s |
≥1.2×10-4 |
≥1.2×10-4 |
≥1.2×10-4 |
≥1.2×10-4 |
≥1.2×10-4 |
|
5 |
Net and Non-woven Geotextile Peel Strength |
KN/m |
≥0.3 |
≥0.3 |
≥0.3 |
≥0.3 |
≥0.3 |
|
6 |
Net Thickness |
mm |
≥5.0 |
≥5.0 |
≥6.0 |
≥7.0 |
≥8.0 |
|
7 |
Net Tensile Strength |
KN/m |
≥13.0 |
≥15.0 |
≥15.0 |
≥15.0 |
≥15.0 |
|
8 |
Non-woven Geotextile Weight of Unit Area |
g/m2 |
≥200 |
≥200 |
≥200 |
≥200 |
≥200 |
|
9 |
Non-woven Geotextile Permeability |
cm/s |
≥0.3 |
≥0.3 |
≥0.3 |
≥0.3 |
≥0.3 |
|
10 |
Width |
m |
2.1 |
2.1 |
2.1 |
2.1 |
2.1 |
|
11 |
Roll Length |
m |
30 |
30 |
30 |
30 |
30 |
|
