Specifications
Drainage Geonetmaterial:HDPE
specification:CE121 CE131 CE151 DN1 HF10
excellent weather ability

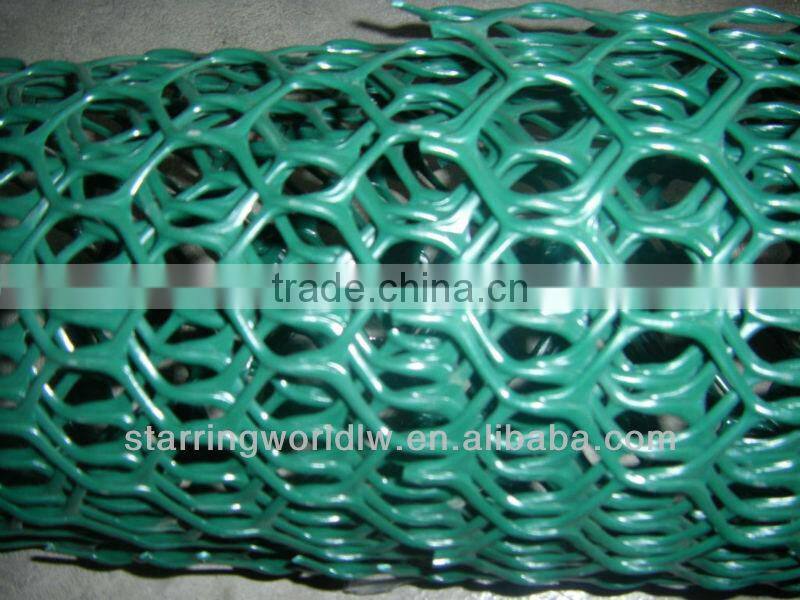

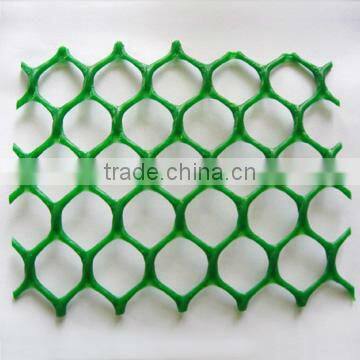

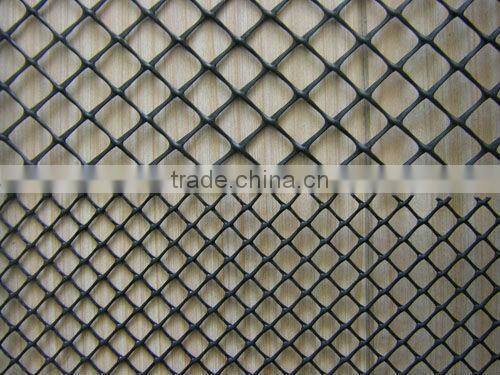

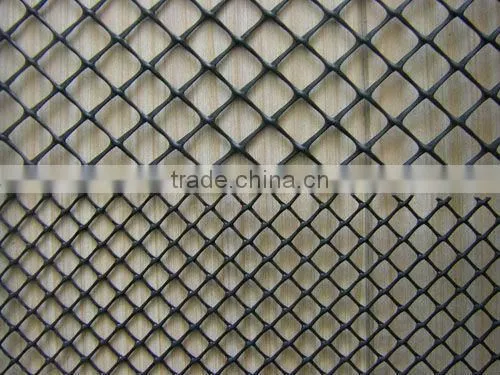

Drainage Geonet
Drainage Geonet introduction:
Drainage Geonet is made of high density polyethylene which squeezed out forming net of square and rhombus and hexagon,widely used in many aspects of rock project.The Drainage Geonet have nice chemical stability,excellent weather ability,resistance to corosive and higher tensile strength and duration.
Drainage Geonet create space for liquids to flow by separeing 2 geomembrane layers and ensuring a flow path.
Drainage Geonet application:
1.make reinforecement treatment for normal soft soil foundation and sand-fixation gabion
2.used in drain cushion,side slop
3.grass planting for slope proctection
astal operation

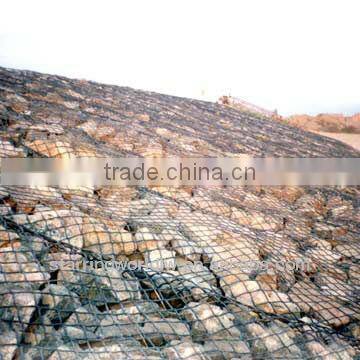

5.geonet in rectangular,quadrate and tubular stone from which can be directly set underwater without diving cost much money.
tect the surface of bank and rock from being encroached,collapse,rock movement and losses of water and soil.
Drainage Geonet Index:
|
Spec Item |
CE121 |
CE131 |
CE151 |
DN1 |
HF10 |
Weight per sq.m.(g/m2) |
730±35 |
630±30 |
550±25 |
750±35 |
1240±60 |
Mseh size(mm) |
8±1X6±1 |
27±2X27±2 |
74±5X74±5 |
10±1×10±1 |
10±1×6±1 |
Net width(m) |
2.00+0.06or2.50+0.06 |
||||
Length of the reel(m) |
50.00+1or40.00+1 |
||||
Maximum drawing force≥(KN/m) |
6.2 |
5.8 |
5.0 |
6.0 |
18 |
Remark |
The special spec or size can be manufactured according to the demands of the contract or agreement |
||||
Pls feel free to contact us:
