Specifications
high elongation PP nonwoven geotextleMaterial:PP/PET
Width:1-6m
Weight:100-1200gsm
anti-aging,anti-acid and alkali,abrasion
high elongation PP nonwoven geotextle
high elongation PP nonwoven geotextle Introduction:
Geotextile Non-Woven sheet China can be made of polypropylene (PP) or polyester(PET), The weight is available from 100G/M2 to 1200G/M2 and the width from 1m to 6m, Two kinds of processing technical to select: Needle punched and thermally bonded. Long fiber or short fiber. All kinds of colors are available. Our annual production ability is 20 million square meters.
Geotextile Non-Woven sheet China is widely known as earthwork material and industry fabric, used in the areas of railway, highway, water conservancy, dam, tunnel, subway, environment protection and so on.
high elongation PP nonwoven geotextle Feature:
Good flexibility, permeability, filterability, isolation and easy for construction.
High strength and nice temperature-resistant performance (can be used in the 180°C environment for long time
Aging- and ultraviolet-resistant
High elongation, stability and nice air permeability
Corrosion-resistant, sound insulation, moth-proof and non-toxic
high elongation PP nonwoven geotextle Application:

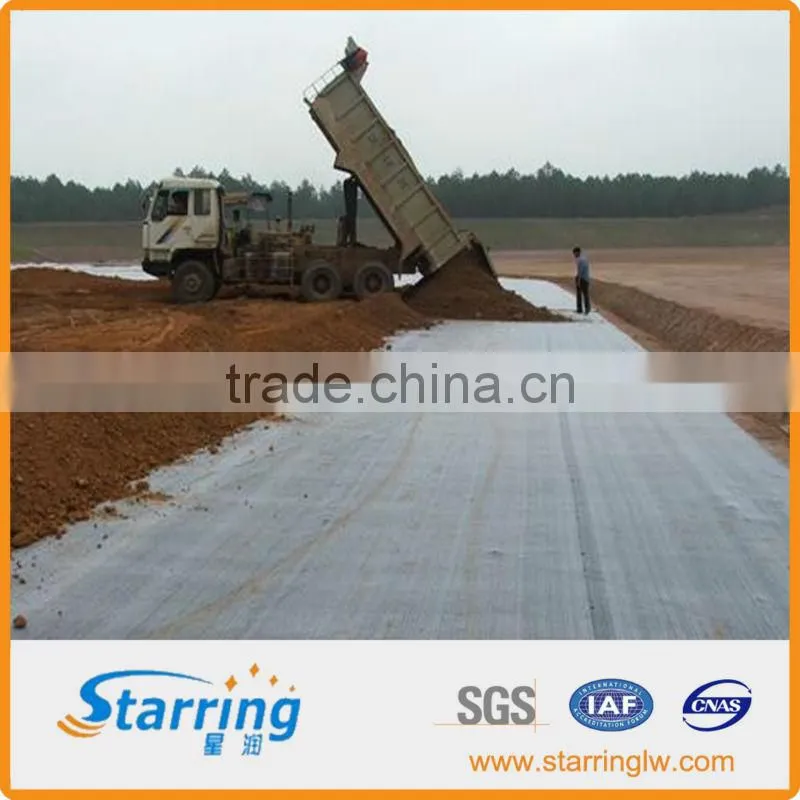

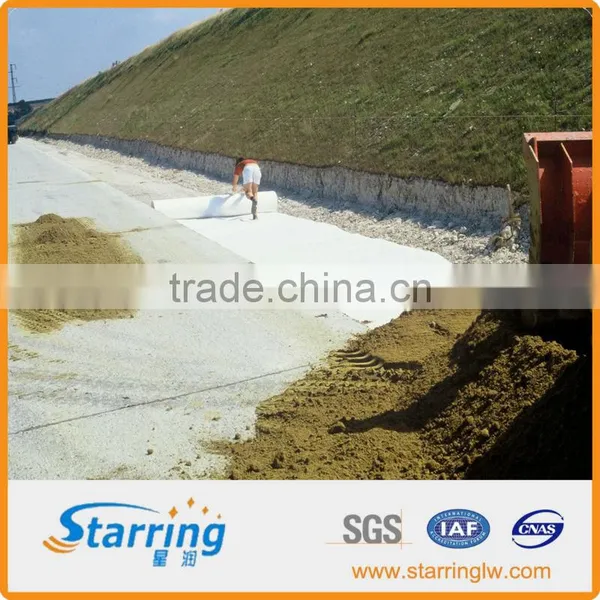

Used in the project of highway, railway, dam and reclamation for anti-filtering, isolating and water drainage, maintenance.
Decoration: wall decoration cloth, floor leather base cloth and electrostatic flocking fabric
Agriculture: agricultural harvest protective cloth, crop and plant protection, weed strip
Waterproof material: high-grade breathable waterproof fabric
Industrial applications: filter materials, insulation materials, electrical appliances, reinforcement materials and supporting materials
Car decoration materials
high elongation PP nonwoven geotextle specification:
2-6m Width, 50-100m length (or according to client's requirements
high elongation PP nonwoven geotextle Parameter Index:
|
Density |
Thickness |
Breaking Strength |
Elongation of Fracture |
Tearing Strength |
CBR Bursting Strength |
Vertical Penetration Parameter |
Equivalent Aperture |
|
g/m2 |
mm |
KN/m |
% |
KN |
KN |
cm/s |
O 95 mm |
|
100 |
0.9 |
2.5 |
25 ~ 100 |
0.08 |
0.3 |
K x (10 -1 ~ 10 -3) (K = 1.0 ~ 9.9) |
0.07 ~ 0.2 |
|
150 |
1.3 |
4.5 |
0.12 |
0.6 |
|||
|
200 |
1.7 |
6.5 |
0.16 |
0.9 |
|||
|
250 |
2.1 |
8.0 |
0.20 |
1.2 |
|||
|
300 |
2.4 |
9.5 |
0.24 |
1.5 |
|||
|
350 |
2.7 |
11.0 |
0.28 |
1.8 |
|||
|
400 |
3.0 |
12.5 |
0.33 |
2.1 |
|||
|
450 |
3.3 |
14.0 |
0.38 |
2.4 |
|||
|
500 |
3.6 |
16.0 |
0.42 |
2.7 |
|||
|
600 |
4.1 |
19.0 |
0.46 |
3.2 |
|||
|
800 |
5.0 |
25.0 |
0.60 |
4.0 |
