Specifications
non-toxic Geotextile sheetMaterial:PP/PET
Width:1-6m
Weight:100-1200gsm
anti-aging,anti-acid and alkali,abrasion
non-toxic Geotextile sheet
non-toxic Geotextile sheet Introduction:
Geotextile Non-Woven sheet China can be made of polypropylene (PP) or polyester(PET), The weight is available from 100G/M2 to 1200G/M2 and the width from 1m to 8m, Two kinds of processing technical to select: Needle punched and thermally bonded. Long fiber or short fiber. All kinds of colors are available. Our annual production ability is 20 million square meters.
Geotextile Non-Woven sheet China is widely known as earthwork material and industry fabric, used in the areas of railway, highway, water conservancy, dam, tunnel, subway, environment protection and so on.
non-toxic Geotextile sheet Feature:
- Engineered to provide high strength and high elongation at break to ensure excellent resistance to damage during construction.
- Manufactured from high tenacity UV stabilised virgin polypropylene or polyester fibers which have been heavily drawn to ensure excellent long term durability in all soil types.
- Manufactured using a randomly orientated web to proide completely isotropic properties,ensuring that high strength is not limited to a single direction.
- Excellent uniformity with high permeability and low pore size for soil filtration.
- Supplied to a maximum width of 6.5mts,ensuring minimum waste over large construction areas.
- 100% polypropylene or polyester staple fibers ,needle punched and random network formation.
- UV and rot resistant and biological degradation resistant.
non-toxic Geotextile sheet Application:

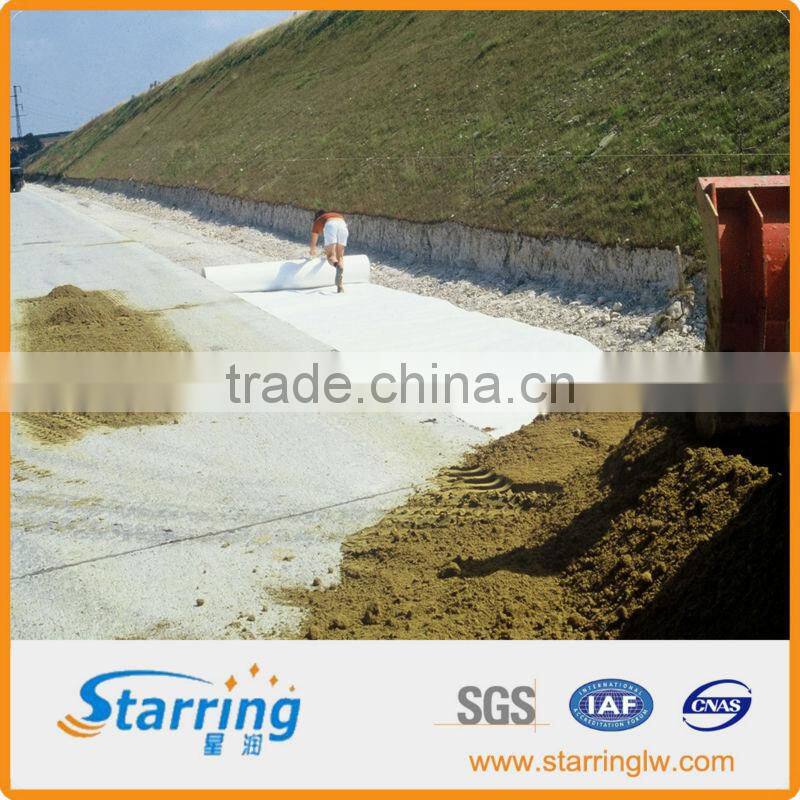

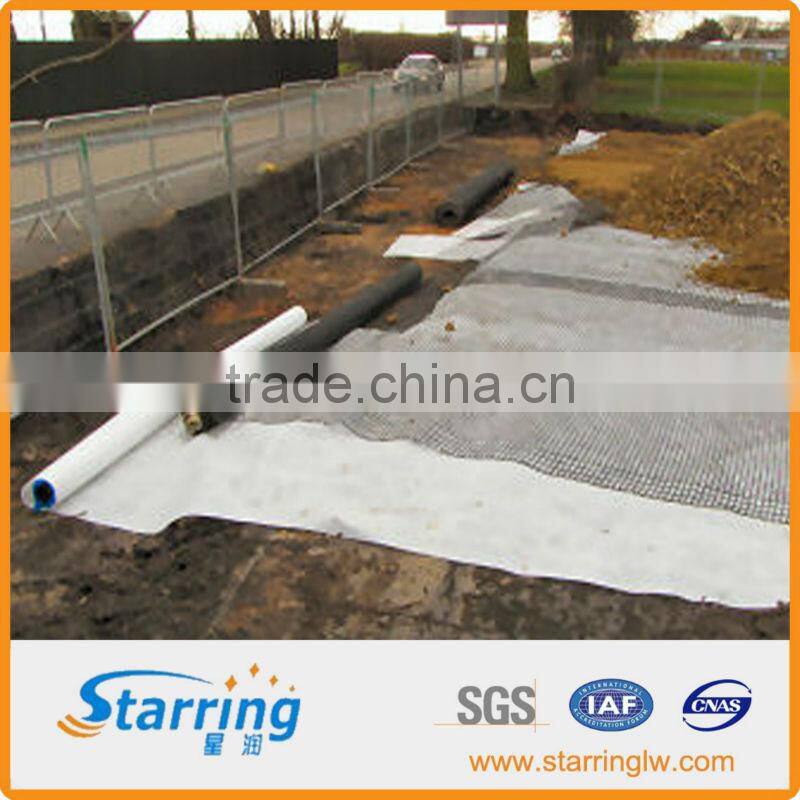

Used in the project of highway, railway, dam and reclamation for anti-filtering, isolating and water drainage, maintenance.
Decoration: wall decoration cloth, floor leather base cloth and electrostatic flocking fabric
Agriculture: agricultural harvest protective cloth, crop and plant protection, weed strip
Waterproof material: high-grade breathable waterproof fabric
Industrial applications: filter materials, insulation materials, electrical appliances, reinforcement materials and supporting materials
Car decoration materials
non-toxic Geotextile sheet specification:
2-8m Width, 50-100m length (or according to client's requirements
non-toxic Geotextile sheet Parameter Index:
|
Density |
Thickness |
Breaking Strength |
Elongation of Fracture |
Tearing Strength |
CBR Bursting Strength |
Vertical Penetration Parameter |
Equivalent Aperture |
|
g/m2 |
mm |
KN/m |
% |
KN |
KN |
cm/s |
O 95 mm |
|
100 |
0.9 |
2.5 |
25 ~ 100 |
0.08 |
0.3 |
K x (10 -1 ~ 10 -3) (K = 1.0 ~ 9.9) |
0.07 ~ 0.2 |
|
150 |
1.3 |
4.5 |
0.12 |
0.6 |
|||
|
200 |
1.7 |
6.5 |
0.16 |
0.9 |
|||
|
250 |
2.1 |
8.0 |
0.20 |
1.2 |
|||
|
300 |
2.4 |
9.5 |
0.24 |
1.5 |
|||
|
350 |
2.7 |
11.0 |
0.28 |
1.8 |
|||
|
400 |
3.0 |
12.5 |
0.33 |
2.1 |
|||
|
450 |
3.3 |
14.0 |
0.38 |
2.4 |
|||
|
500 |
3.6 |
16.0 |
0.42 |
2.7 |
|||
|
600 |
4.1 |
19.0 |
0.46 |
3.2 |
|||
|
800 |
5.0 |
25.0 |
0.60 |
4.0 |
