Waterproofing Membranes for Concrete Bridge Decks1.Excellent weathering characteristics
2.Free samples
Waterproofing Membranes for Concrete Bridge Decks
Product Information

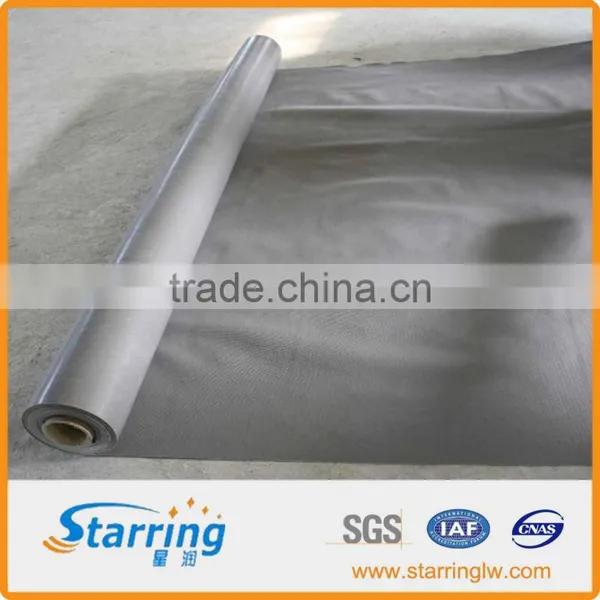

The PVC waterproofing rolls formulas are based upon polyvinyl chloride resin with other assistants added to provide flexibility and stability such as anti-oxidant, absorbent of ultraviolet light, plasticizer and plastic filling agent.
Product Features
- System flexibility to match project and construction needs.
- An ability to be made in a spectrum of colors, including white reflective roofing that has proven to save energy, mitigate urban heat island effects, and improve air quality.
- High resistance to puncture and impact.
- Excellent resistance to flame exposure and subsequent fire propagation.
- Proven durability against rooftop soiling and contamination.
- Good low-temperature flexibility and high-temperature tolerance.
- Excellent roof installation productivity.
Application Range
Construction Method

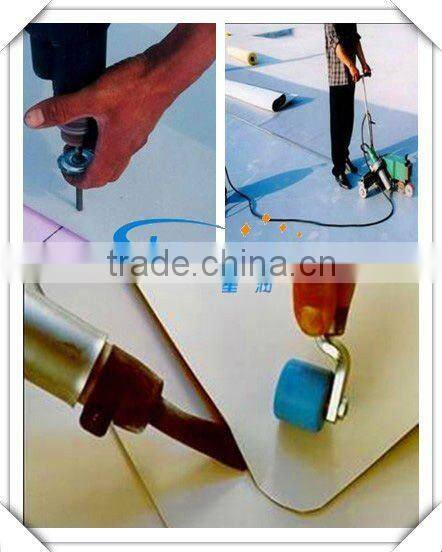

The membranes are installed using three different methods: ballasted (ballast, paving slabs, green roof), mechanical fastening or adhered (glue or self-adhered).
Heat welded seams and flashing guarantee long performance, no drying time is needed, you can walk on a new membrane just after the installation.
Product Technical Parameters
GB12952-2010
No. |
Test Item |
Indicators |
||
Code H | ||||
1 |
Stretching Performance |
Tension Strength Mpa≥ |
10 |
|
Breaking Elongation%≥ |
200 |
|||
2 |
Heating Treatment Size Change Rate%≤ |
2.0 |
||
3 |
Low-temperature Bending |
-25°C No Craze |
||
4 |
Water Impermeability |
0.3Mpa,2h Water Impermeability |
||
5 |
Impact Resistance |
0.5kg·m , Water Impermeability |
||
6 |
Seam Peel Strength N/mm ≥ |
4.0 or Membrane Breaking |
||
7 |
Right-angle Tear Strength N/mm ≥ |
50 |
||
8 |
water absorption(70°C168h)% |
After Soaking ≤ |
4.0 |
|
After Airing ≥ |
-0.40 |
|||
9 |
Heat aging(80°C) |
Time |
672h |
|
Appearance |
No blisters, cracks, delamination, bonding and holes |
|||
Tensile Strength (max. tensile)Retention%≥ |
85 |
|||
Elongation Retention %≥ |
80 |
|||
Cold Bending |
-20°C No Craze |
|||
10 |
Chemical Resistance |
Appearance |
No blisters, cracks, delamination, bonding and holes |
|
Tensile Strength (max. tensile)Retention %≥ |
85 |
|||
Elongation Retention %≥ |
80 |
|||
Cold Bending |
-20°C No Craze |
|||
11 |
Artificial climate accelerating ageing c |
Time |
1500hb |
|
Appearance |
No blisters, cracks, delamination, bonding and holes |
|||
Tensile Strength (max. tensile)Retention %≥ |
85 |
|||
Elongation Retention %≥ |
80 |
|||
Cold Bending |
-20°C No Craze |
|||
