Specifications
PVC Flat Roofing Material1.Excellent weathering characteristics
2.High tensile strength
3.Surface:with polymer
40.8mm-3.0mm

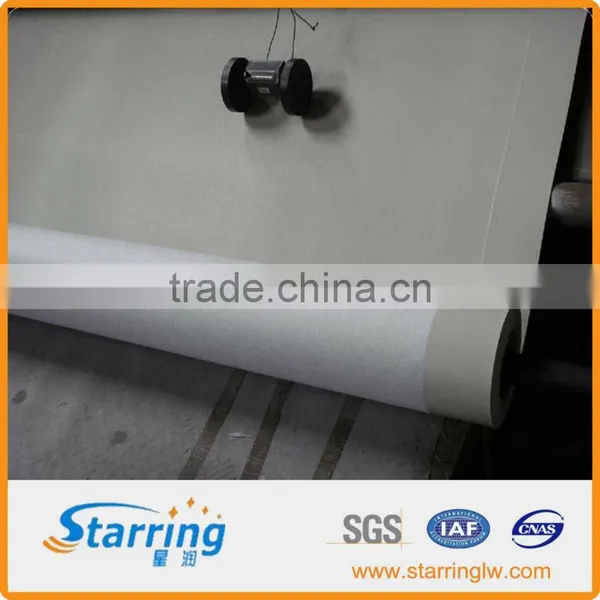

PVC Flat Roofing Material
Product Description
Reinforced waterproof membrane forms an effective barrier to liquid water or water vapor in the roof construction for industrialThis membrane is polyester reinforced, which provides high breaking and tearing strength needed to prevent excessive elongation and sheet deformation under the stresses produced by the lifting of the membrane under wind loads.
Product Features
They have good properties compared to that of Butyl, EDPM and HYPALON based water proofing membrane. They have high tensile strength and elongation properties are added to provide flexibility and stability such as anti-oxidant, absorbent of ultraviolet light, plasticizer and plastic filling agent.

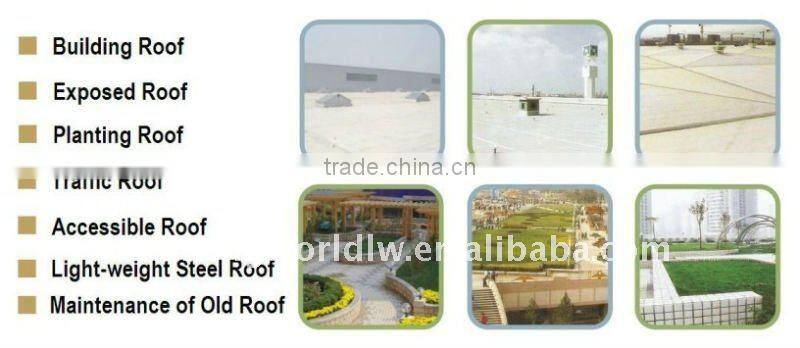

Application Range
Product Technical Parameters
GB12952-2010
No. | Test Item | Indicators | ||
Code L | ||||
1 | Stretching Performance | Maximum Tension N/cm ≥ | 120 | |
Breaking Elongation%≥ | 150 | |||
2 | Heating Treatment Size Change Rate%≤ | 1.0 | ||
3 | Low-temperature Bending | -25°C No Craze | ||
4 | Water Impermeability | 0.3Mpa,2h Water Impermeability | ||
5 | Impact Resistance | 0.5kg·m , Water Impermeability | ||
6 | Seam Peel Strength N/mm ≥ | 4.0 or Membrane Breaking | ||
7 | Trapezoid Tear Strength N≥ | 150 | ||
8 | water absorption(70°C168h)% | After Soaking ≤ | 4.0 | |
After Airing≥ | -0.40 | |||
9 | Heat aging(80°C) | Time | 672h | |
Appearance | No blisters, cracks, delamination, bonding and holes | |||
Tensile Strength (max. tensile)Retention%≥ | 85 | |||
Elongation Retention %≥ | 80 | |||
Cold Bending | -20°C No Craze | |||
10 | Chemical Resistance | Appearance | No blisters, cracks, delamination, bonding and holes | |
Tensile Strength (max. tensile)Retention %≥ | 85 | |||
Elongation Retention %≥ | 80 | |||
Cold Bending | -20°C No Craze | |||
11 | Artificial climate accelerating ageing c | Time | 1500hb | |
Appearance | No blisters, cracks, delamination, bonding and holes | |||
Tensile Strength (max. tensile)Retention %≥ | 85 | |||
Elongation Retention%≥ | 80 | |||
Cold Bending | -20°C No Craze | |||
