Specifications

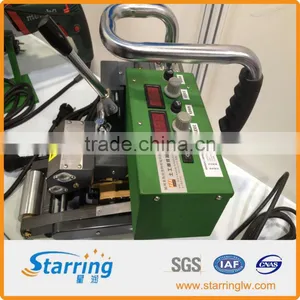

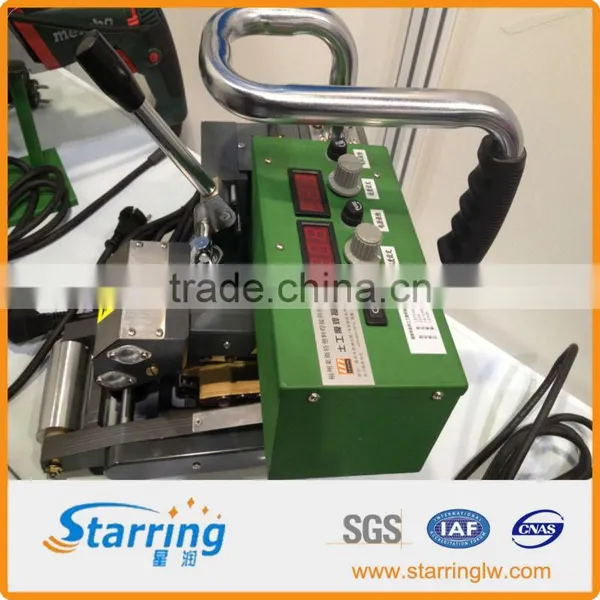

Geomembrane Overlap Wedge Welder

i.              Summarize

Geo-membrane welder is a new welding machine which is developed by our company. They can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and PVC,HDPE,EVA,PP

The control of this series adopt PID automatic thermostatic control with high control and low temperature fluctuation. Speed control of this series adopt PWM automatic voltage and regulation speed circuit. Direct current servo the motor drive with great output torque and staple performance in walking. It can maintain a constant speed on the condition of creeping, vertical creeping and road load. Also this series of welding machine are stable in performance despite of external temperature and voltage variation.

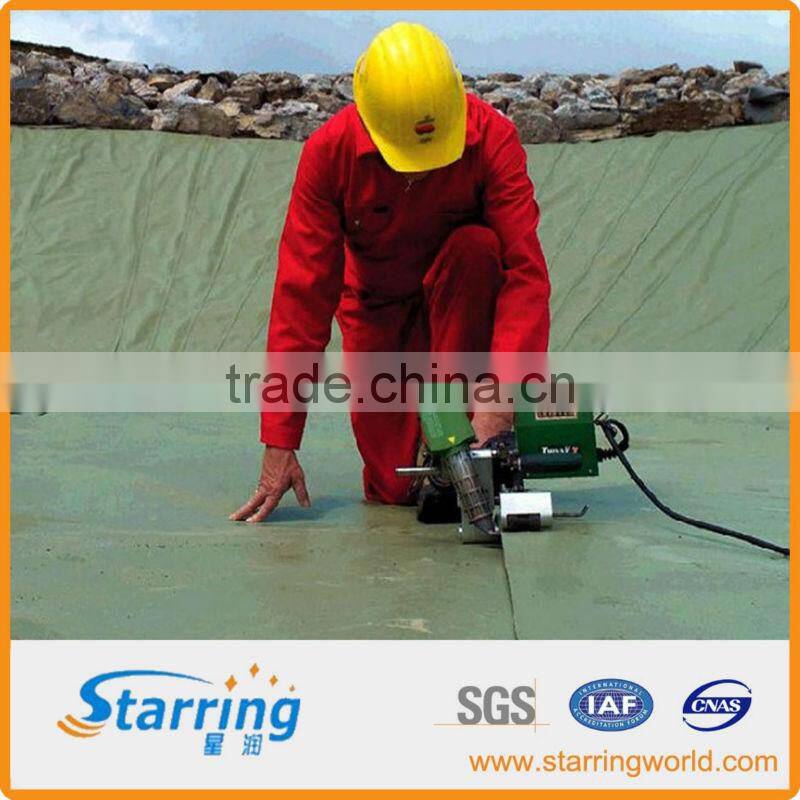

This series of welding machine is excellent in performance and easy for operating, with high welding speed and good work quality. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on.

ii.              Technical Parameter

1. Output Voltage:220V                 Frequency:50Hz

2,Power:1800W

3,Welding speed:0.5~5m/min

4 The temperature of Heating up:0~450°C

5,The thickness of welding material:1.0mm~3.0mm(Single membrane thickness)

6,Welding width:14mm×2   Interior Cavity :16mm

7,Welding intention≥85%Maternity material(Resistance to the direction of cutting)

8,Joint width:120mm

9 .Machine body weight:13kg
