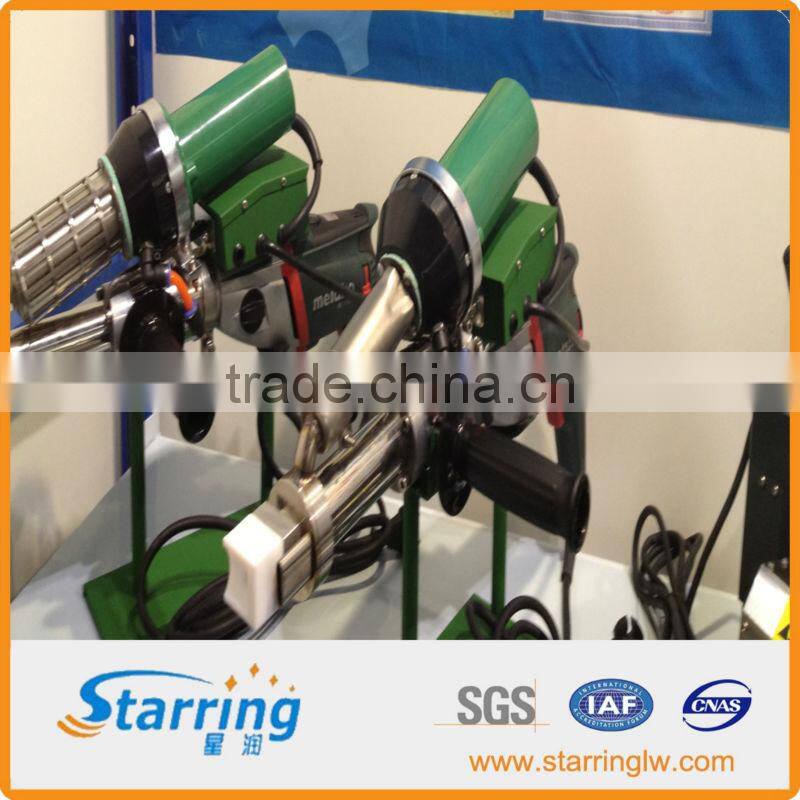

extrusion welder machine

Specifications

extrusion welder machine
Heating temperature : 0-450 degree
Thickness of material be welded: 0.2-1.5mm

                                             extrusion welder machine

extrusion welder machine Performance



Item no.:	LST610A(with German accessories)
Voltage:	220V
Frequency:	50/60HZ
Power:	1100W drive motor and 1600W hot air welding gun
Wind temperature:	20-600°c
Heating temperature when extruding:	200-300° c
Welding speed:	2kg/h
Diametere of welding rod:	Φ3.0mm-3.5mm
Weight:	7.0kg



 extrusion welder machine Application:

Application covers refuse landfill anti-seepage project, sewage disposal anti-seepage project, lake anti-seepage project, water conservancy anti-seepage project, tunnel anti-seepage project, minerals place anti-seepage project, cultivation pond anti-seepage project, roofing waterproofing project etc.

1.  Please carefully read the literary in order to use the machine carefully.



2.  Please use the three holes receptacle with earthing which capacity is more than 15A.No changing the pin at random and drag the wire to take the pin out.



3.  In order to guarantee the quality of welding, please ask the people who is specialized in the line to manipulate.



4. Don’t let the iron wheel be at the impress status when the machine racing.



5. Don’t use the machine in a damp place for fearing the body of the machine damaged by watering.



6. The machine all were debugged before left the factory, please don’t adjust at random.



7. The circuitry board in the control case carry electricity, non professional people shouldn’t disassemble it at will.



8. Don’t heat up for racing the body of the machine for a long time when there is no welding or the long interval of welding since the big power in this machine is great.



9. The temperature of welding isn’t allowed to surpass 400’C in generally when it works normal.



10. Please heat up the machine about 30 minutes before open it when the machine don’t use or be damped for a long time.



11. Without second notice if it has changed since the products in our factory consistently improve on.
