Specifications

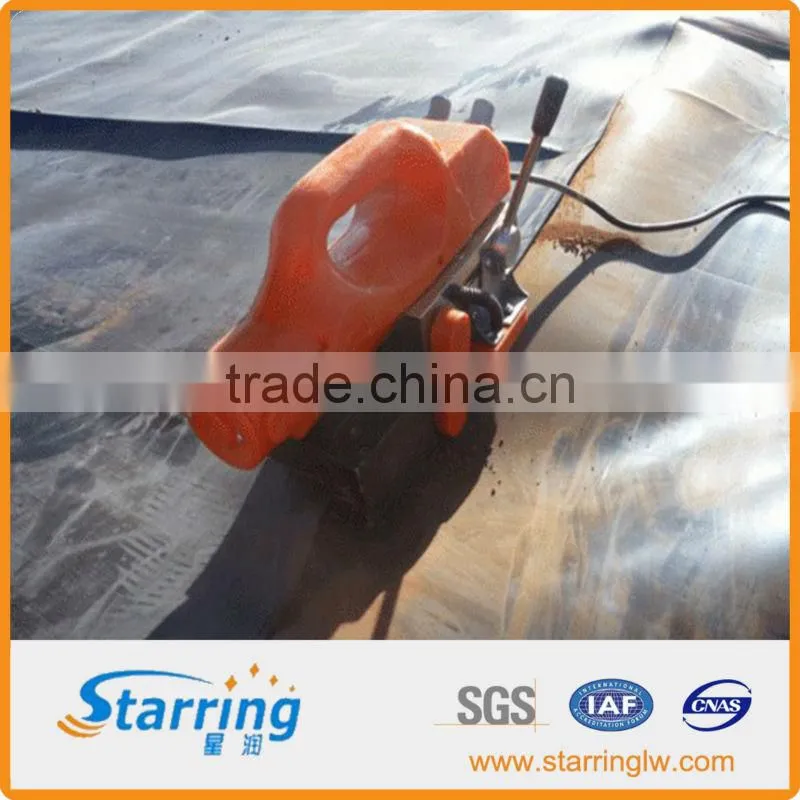

HDPE Geomembrane Welding MachineHDPE Geomembrane Welding Machine
1. Technical parameters
Voltage (V): 220V
Frequency (Hz): 50Hz
Power (P): 800W
Welding speed (V): 0.8-6m/min
Heating temperature (T): 0-450°C
Thickness of material to be welded: 0.2mm-2.0mm
Overlap width: 100mm
Welding width: 12.5mm×2, interior cavity 12mm
Seam strength: ≥85% base material (tensile resistant in shear direction), complete machine
Dimensions: L32 x W15cm x H22cm
Net Weight: 4.8kg
Gross Weight: 8.5kg
Insulation class: class II
2. Precautions
1). For correct operation, please carefully read this instruction.
2). Use with grounded 3-cords mains cable and socket (socket with 10A capacity. On the corresponding welder, phase L connected to live wire, N to zero line, phase o grounded protection line), plug will not be modified without prior permission.
3). For good welding quality, please assign specified personnel for operation.
4). Pressure roller will not engage on free running.
5). Do not operate when it is exposed to water to prevent inferior quality.
6). The machine has been regulated before leaving factory. Please do not adjust it at will.
7). Circuit board in control box is electrified. Do not remove it without prior notice to authorized personnel.
8). Preheat for 30 minutes before start up if machine has been long unused or exposed to moisture.
9). Modifications may be made for continuous improvement, without prior notice.
