Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Welding Machine > LS900 HDPE Automatic Welding Machine for 1.0-3.0mm

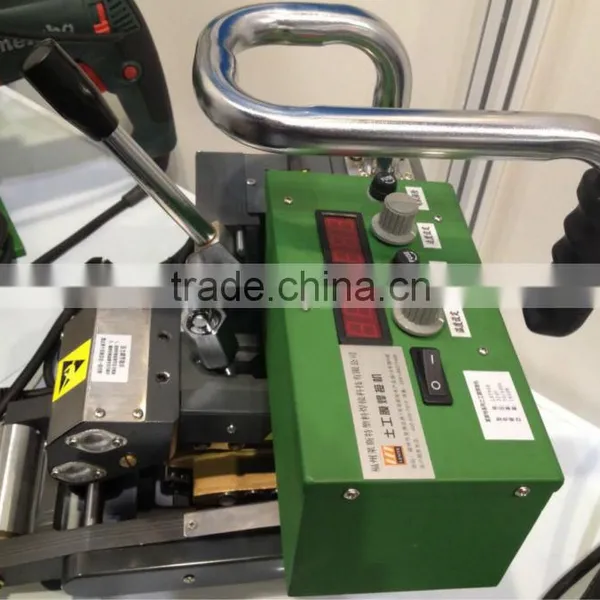

LS900 HDPE Automatic Welding Machine for 1.0-3.0mm

Name: LS900 HDPE Automatic Welding Machine for 1.0-3.0mm
Brand: Starring
SKU: 142587588
Availability: InStock

LS900 HDPE Automatic Welding Machine for 1.0-3.0mm thumbnail-1

LS900 HDPE Automatic Welding Machine for 1.0-3.0mm photo-1

US$ 2,500 - 2,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

Starring

Model Number:

LS900

Contact Supplier Request Quote Chat Now

Laiwu Starring Project Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name Starring

Model Number LS900

Voltage 220V

Rated Capacity 1800W

Weight 13KG

Usage Welding HDPE

Certification ISO9001

Specifications

HDPE Automatic Welding Machine
1. Thickness: 0.3-3.0mm
2. One year warranty

Geo-membrane Overlap Wedge Welder

Garbage Imbedding Anti-filtering Welder

User’s Guide

(LS900)

Notice

1. Please carefully read the literary in order to use the machine carefully.

2. Please use the three holes receptacle with earthing which capacity is more than 15A.No changing the pin at random and drag the wire to take the pin out.

3. In order to guarantee the quality of welding, please ask the people who is specialized in the line to manipulate.

4. Don’t let the iron wheel be at the impress status when the machine racing.

5. Don’t use the machine in a damp place for fearing the body of the machine damaged by watering.

6. The machine all were debugged before left the factory, please don’t adjust at random.

7. The circuitry board in the control case carry electricity, non professional people shouldn’t disassemble it at will.

8. Don’t heat up for racing the body of the machine for a long time when there is no welding or the long interval of welding since the big power in this machine is great.

9. The temperature of welding isn’t allowed to surpass 400’C in generally when it works normal.

10. Please heat up the machine about 30 minutes before open it when the machine don’t use or be damped for a long time.

11. Without second notice if it has changed since the products in our factory consistently improve on.

i. Summarize

Geo-membrane welder is a new welding machine which is developed by our company. They can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and PVC,HDPE,EVA,PP

The control of this series adopt PID automatic thermostatic control with high control and low temperature fluctuation. Speed control of this series adopt PWM automatic voltage and regulation speed circuit. Direct current servo the motor drive with great output torque and staple performance in walking. It can maintain a constant speed on the condition of creeping, vertical creeping and road load. Also this series of welding machine are stable in performance despite of external temperature and voltage variation.

This series of welding machine is excellent in performance and easy for operating, with high welding speed and good work quality. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on.
