Product Specification-Biaxial Geogrid BX1200
Product Type: Integrally Formed Biaxial Geogrid
Polymer: Polypropylene
Load Transfer Mechanism: Positive Mechanical Interlock

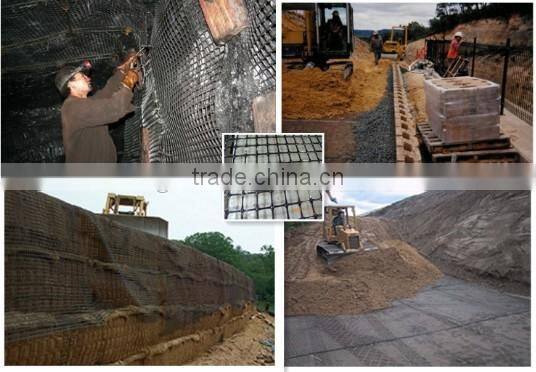

Primary Applications: Spectra System(Base Reinforcement,Subgrade Improvement)
Product Properties
Index Properties | Units | MD Values | XMD Values |
Aperture Dimensions | mm(in) | 25(1.0) | 33(1.3) |
Minimun Rib Thickness | mm(in) | 1.27(0.05) | 1.27(0.05) |
Tensile Strength @2% Strain | KN/m(lb/ft) | 6.0(410) | 9.0(620) |
Tensile Strength @5% Strain | KN/m(lb/ft) | 11.8(810) | 19.6(1,340) |
Ultimate Tensile Strength | KN/m(lb/ft) | 19.2(1,310) | 28.8(1,970) |
Junction Efficiency | % | 93 |
|
Flexural Stiffness | Mg-cm | 750,000 |
|
Aperture Stability | m-N/deg | 0.65 |
|
Resistance to Installation Damage | %SC/%SW/%GP | 95/93/90 |
|
Resistance to Long Term Degradation | % | 100 |
|
Resistance to UV Degradation | % | 100 |
|
Dimension and Delivery
The biaxial geogrid shall be delivered to the jobsite in roll form with each roll individually identified and nominally measuring 3.0 meters(9.8 feet) or 4.0 meters(13.1 feet) in width and 50.0 meters(164 feet) in length,A typical truckload quantity is 160 to 210 rolls
