Geogrid Price
Products Description

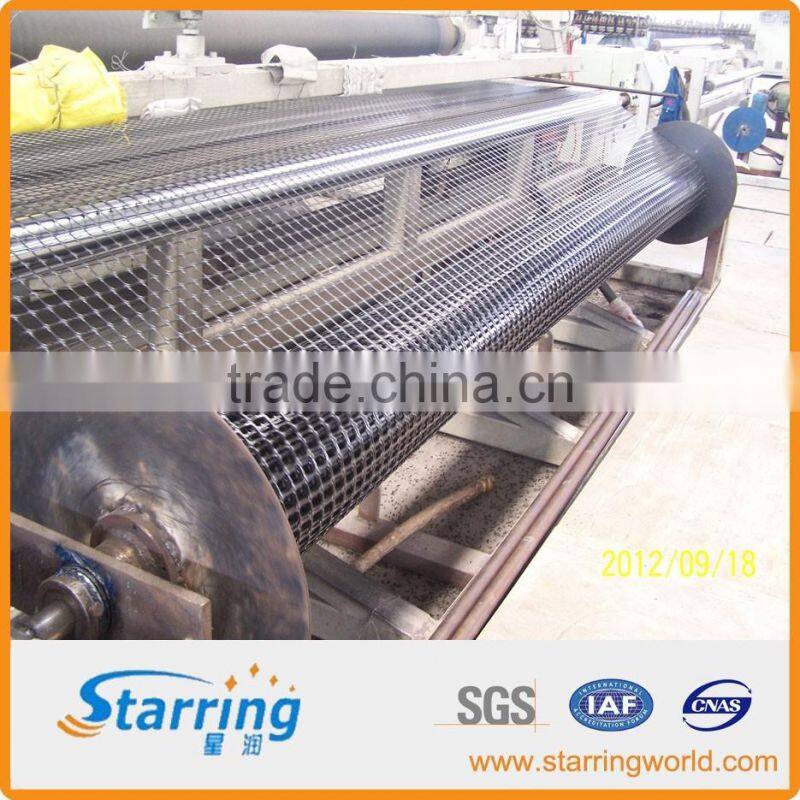

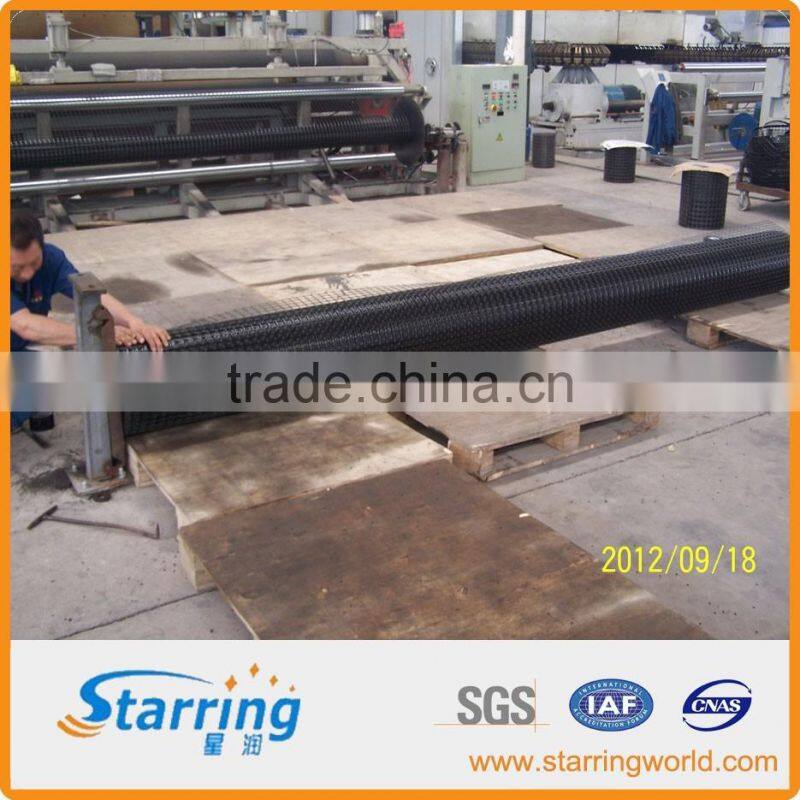

Biaxial geogrid made from polypropylene and high-density polyethylene appears network structure of square. The product us formed after the processes of extrusion, punching, longitudinal and horizontal stretch . This kind of geogrid has high tensile longitudinally and horizontally, which can be used to reinforce the basement.
Product Features
1.High tension resistance, high plane torsion resistance modulus, excellent creep resistance and stable chemical property.
2.High mechanic damage resistance and durability and large friction with sandy stone.
3.Improve bearing capacity of foundation and increase diffusion angle.
4.when geogrid reinforcement is used, the bearing capacity of road bed of the same thickness can increase 3-5 times.
Application Range
1.Reinforcement of permanent bearing road beds of highways, railways, airports ,large parking area and dock goods yard.
2.Slope protection and culvert reinforcement of railway and highway.
Product Specifications and Technical Parameters
Project | TGSG15-15 | TGSG20-20 | TGSG30-30 | TGSG40-40 | TGSG45-45 | TGSG50-50 | |||||
Mass per Unit Area (g/m2) | 300±30 | 330±30 | 400±40 | 500±50 | 550±50 | 600±50 | |||||
Width (m) | 1-6m | ||||||||||
Tensile Yield Force per Linear Meter (KN/m) (MD) | 15 | 20 | 30 | 40 | 45 | 50 | |||||
Tensile Yield Force per Linear Meter(KN/m) (CD) | 15 | 20 | 30 | 40 | 45 | 50 | |||||
(MD)Yield Elongation (%)≤ | 16 | ||||||||||
(CD)Yield Elongation (%)≤ | 13 | ||||||||||
Strength at 2% Strain, (KN/m)≥(MD) | 5 | 8 | 11 | 13 | 16 | 19 | |||||
Strength at 2% Strain(KN/m) ≥(CD) | 7 | 10 | 13 | 15 | 20 | 24 | |||||
Strength at 5% Strain (KN/m) ≥(MD) | 8 | 10 | 15 | 16 | 25 | 27 | |||||
Strength at 5% Strain (KN/m) ≥(CD) | 10 | 13 | 15 | 20 | 22 | 23 | |||||
Remark | Special specifications can be customized according to the contract. | ||||||||||
