Home > Products > FRP Grating > Fibre Reinforced Plastic (FRP) Floor Grid
Fibre Reinforced Plastic (FRP) Floor Grid
- 1000 Kilogram / Kilograms per Month
- SHANGHAI
- T/T D/P D/A Credit Card
- Great load bearing GRP Pultruded Grating, FRP GRP Grating
- High strength GRP Floor Grating, grp grating
- GRP Angle, Glass fiber angle profile
- GRP Grating
- ISO Fiberglass pultruded grating walkway/frp walkway, chemcial resistant, big load bearing
- Chemical resistant GFRP Grating, popular for chemical plant platform walkway
Product Details
Place of Origin: | Henan, China | Brand Name: | zzyalong | Model Number: | plastic floor grid height:38mm |
Material: | Other, FRP |
Packaging Details
In wooden cases,cartons,plywood case, wood pallets,containers,according to demand
Product Description

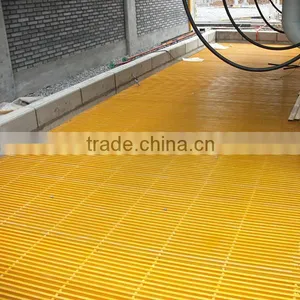

Fibre Reinforced Plastic (FRP) Floor Grid
The fibre reinforced plastic floor grid is built with a much stronger process, and can carry a far superior load, and handle much greater impacts than molded grid.
long-term durability, offers the strength of steel at a fraction of the weight, plus it won’t corrode, spark or conduct electricity. Because it weighs less, it’s easier to install. And the color is molded all the way through, so no painting is required. Good performance and cost effectiveness makes it a better choice than steel in several major industries.
Pultruded frp grating advantages
- Corrosion Resistant.
- High Strength-to-Weight Ratio.
- Long Service Life.
- Fire Retardant.
- Slip & Impact Resistant.
- Nonconductive.
- Easy to Install & Fabricate.
Applications:
Bridge walkways
Platforms
Trench Covers
Walkways
Pedestrian Ramps
Decks and Patios
Staircase
Floorings
Foot Bridges
Swimming Pool Overflow
Fencing
Elevated Car parking
Yalong frp grating specification list:
Item | high (inches) | top wide (mm) | bottom wide (mm) | top space wide (mm) | theoretical weight (KG/M2) |
25mm I | 1 | 30 | 30 | 13 | 13 |
25mm I | 1 | 30 | 30 | 30 | 10 |
25mm I | 1 | 15 | 15 | 10 | 17 |
25mm I | 1 | 15 | 15 | 23 | 11 |
38mm I | 1.5 | 15 | 15 | 10 | 26 |
38mm I | 1.5 | 15 | 15 | 15 | 22 |
38mm I | 1.5 | 15 | 15 | 23 | 18 |
40mm I | 1.6 | 40 | 20 | 27 | 19 |
40mm I | 1.6 | 40 | 20 | 40 | 17 |
40mm I | 1.6 | 40 | 20 | 60 | 14 |
40mm I | 1.6 | 30 | 30 | 20 | 14 |
40mm I | 1.6 | 30 | 30 | 30 | 12 |
40mm I | 1.6 | 30 | 30 | 45 | 10 |
58mm I | 2.2 | 15 | 15 | 10 | 32 |
58mm I | 2.2 | 15 | 15 | 15 | 27 |
58mm I | 2.2 | 15 | 15 | 23 | 22 |
65mm I | 2.5 | 30 | 30 | 20 | 17 |
65mm I | 2.5 | 30 | 30 | 30 | 15 |
60mm I | 2.5 | 30 | 30 | 45 | 12 |
Performance compare list of pultreded FRP grating and steel grating | |||
Serial number | Item | Pultreded FRP grating (I38-6000) | Steel grating |
NO.1 | WEIGHT | (60%)about 13Kg/m2 | (76%)about 26Kg/m2 |
NO.2 | PROFILES INTENSITY | Pulling strength:≥300MPa | Pulling strength>210Mpa |
Bending strength: ≥350MPa | Bending strength: >210Mpa | ||
NO.3 | CORROSION RESISTANCE | Never rust,and isolation | Bad corrosion resistance |
NO.4 | DURABILITY | 30 years | 15 years |
NO.5 | ECONOMY | Higher first investment, Mever maontain lifelong | Smaller first investment, Maintenance needed every year |
NO.6 | TRANSPORTATION INSTALLATION | Low transportation costs, Easy installation quickly | High transportation costs, Installation waste time and energy |
NO.7 | POPULARITY | Popularly applied in environment of 40-60 | Can not adapt to low temperature |
NO.8 | SOCIAL EFFECTS | Little pollution, Less energy consumption | Large pollution,and energy consumption |
Goods packing
Company Profile
Zhengzhou Yalong Pulterx composites Co., Ltd. was established in September 1994 and became a member of China Fiber Reinforced Plastics (FRP) association in April 1995, was recognized as a high-tech enterprise in Zhengzhou.
Yalong took part in many important construction project in China, for example, China western area Aluminium smelter plant construction, Northeast power plant cooling tower anti-freeze project, the biggest nylon"66"project in Ping Ding Shan, etc.
Yalong products recommended by the Standardization Committee of China Construction Department, meanwhile, selected in "Anti-corrosion structure in construction "J333(BII)" Selected national standard design drawings", won the third term Scientific and Technical Advance Prize of Henan Province.
We produce different FRP profiles with different resin such as: polyester, polyethylene, epoxy, and phenolic.
FRP fiberglass profiles also could be assembled to different fiberglass product according to customer requirement, such as:
Fiberglass window and shutter
Pultruded Fiberglass Grating
Fiberglass guardrail handrail fence
Fiberglass ladders and stairs
Cooling tower FRP components
filler supports, anti-freeze board, grating walkway
Fiberglass Structure and support
Yalong have great quality control from raw materials to finished product, also offer best after sale service.
20 years producing experience ensure top class quality, we also welcome OEM and ODM, welcome contact us freely.
