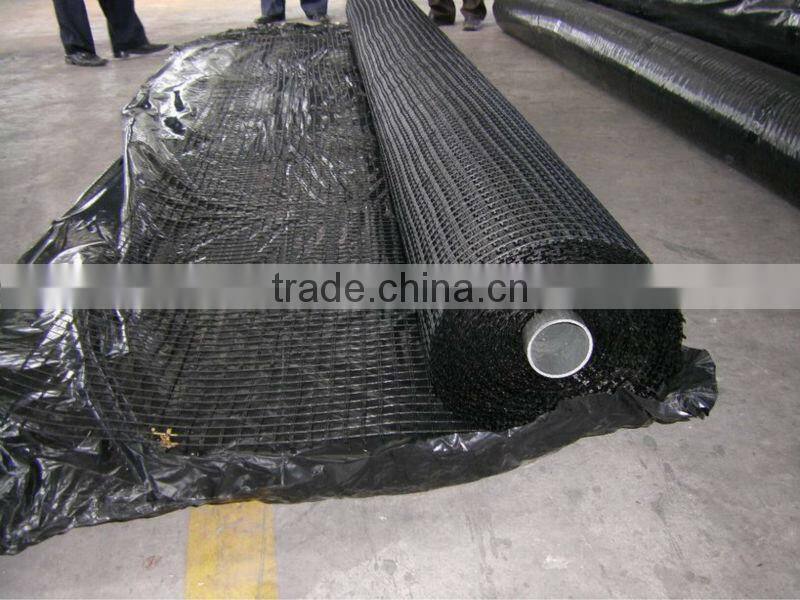

Bitumen coated fiberglass geogrid
- 1000000 Square Meter / Square Meters per Month
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | starring | |
| Model Number | starring | Material | Fiberglass |
Product Description
Specifications
Bitumen coated fiberglass geogridHigh tensile strength in the warp and weft direction
excellent temperature range
low elonga

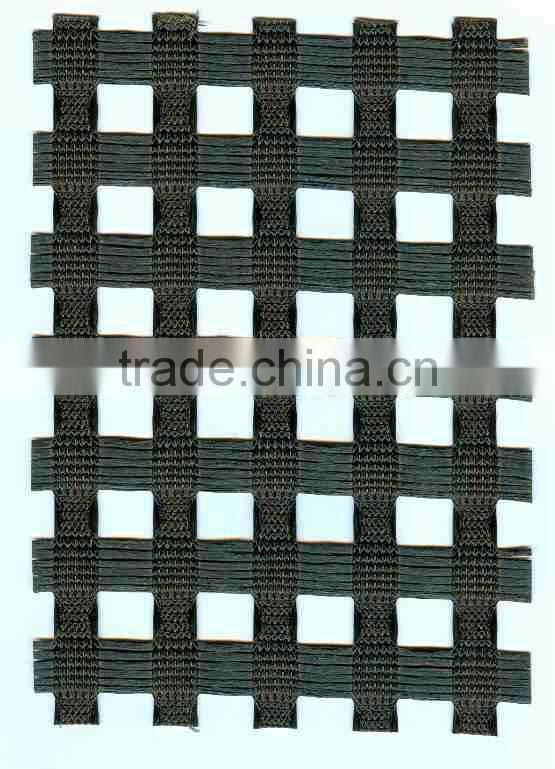

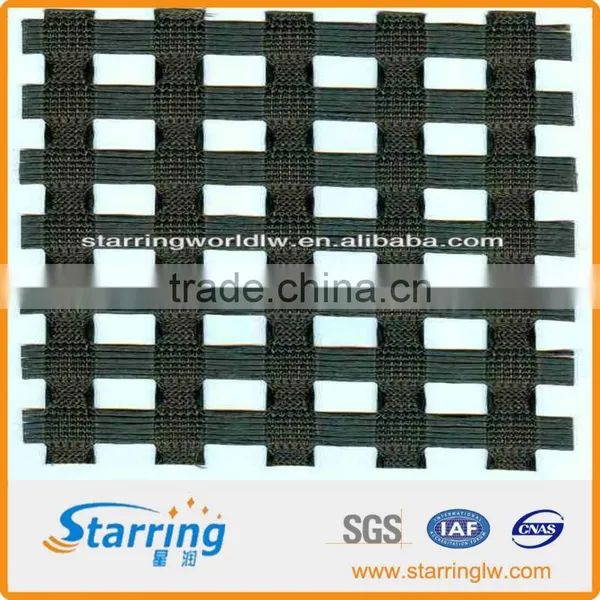

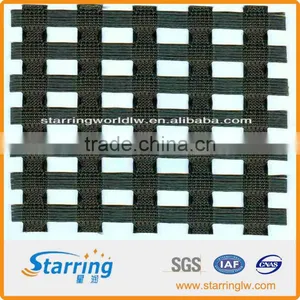

Bitumen coated fiberglass geogrids
Fiberglass geogrids are extensively used for the reinforcement of asphalt pavement, concrete pavement and roadbeds. Compared to traditional materials, the use of fiberglass geogrids can reduce construction costs, extend road service life, and prevent deflection cracks. They can also be used to reinforce roadbeds in soft soil for railways, airfields, irrigation channels, and water dams.
Fiberglass geogrid is kind of fine solutions for pavement restoration, soft soil foundataion, asphalt overlay or road construction projects with reduced costs and increased performance. It repairs worn, ugly pavement and reinforces asphalt overlays.
Bitumen coated fiberglass geogrids Properties:
(1)High intension, high tenacity, high occlusive force with soil or gravel, erosion-resistant, water drainage, light weigth.
(2)Reinforce soft soil roadbed, rib side slope of embankment, enhance isolation, inhibit ground deformation, prevent crack by reflection, increase strength of roadbed.
Bitumen coated fiberglass geogrids Benefits :
(3)Extends the useful life of the overlay
(4)Strengthens the entire pavement system
(5)Retards the propagation of an existing crack through the new overlay (reflective cracking)
(6)Effectively transfers pavement stress
(7)Provides a waterproof barrier for the subgrade foundation soil protection
Bitumen coated fiberglass geogrids Technical papameters:
Performancespecification | TGS-B-25-25 | TGS-B-30-30 | TGS-B-40-40 | TGS-B-50-50 | TGS-B-80-80 | TGS-B-50-50-Z Autohesion type | |
Intensity(KN/m) | Longitudinal | 25 | 30 | 40 | 50 | 80 | 50 |
Lateral | 25 | 30 | 40 | 50 | 80 | 50 | |
Breaking elongation % | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | |
Grid (mm) | 25.4×25.4 | 25.4×25.4 | 25.4×25.4 | 25.4×25.4 | 25.4×25.4 | 25.4×25.4 | |
Width (m) | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | |
