Specifications
plastic paver gridThermal stability
anti-corrosive
long life using
nice tensionreisitance ,tearing resistanc
plastic paver grid
plastic paver grid Performance:
High Tensile Strength
Low Elongation
Creep
Consistency
Temperature Stability
Chemical and Physical Stability

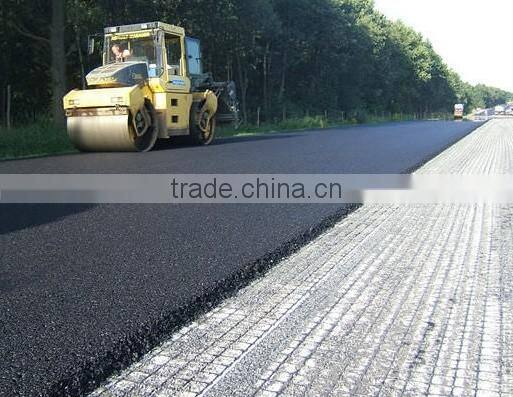

Reinforcement fiberglass geogrid forms a composite mechanics limited system when asphalt concrete goes through the structure.
plastic paver grid Introduction:
The reinforcement fiberglass geogrid is made by weaving and covering fiberglass filament
Fiberglass geogrid is a kind of plane network shape material that selects excellent reinforcement non-alkali fiberglass yarn.it is weaven into base material by using foreignadvanced warp knitter and adopts warp knitted directional structure.It follows similar and compatible princple,lays stress on its synthetic performance with asphalt mixture.ptotects glassfiber base material fully and improve wearing resistance and shearing force resistance of base material so as to make road surface reinforce.
plastic paver grid Index
Index Properties |
Test Method |
Unit |
GG1515 |
GG2020 |
GG3030 |
GG4040 |
MD TD |
MD TD |
MD TD |
MD TD |
|||
Polymer |
-- |
-- |
PP |
PP |
PP |
PP |
Minimum Carbon Black |
ASTM D 4218 |
% |
2 |
2 |
2 |
2 |
Tensile Strength@ 2% Strain |
ASTM D 6637 |
Kn/m |
5 5 |
7 7 |
10.5 10.5 |
14 14 |
Tensile Strength@ 5% Strain |
ASTM D 6637 |
Kn/m |
7 7 |
14 14 |
21 21 |
28 28 |
Ultimate Tensile Strength |
ASTM D 6637 |
Kn/m |
15 15 |
20 20 |
30 30 |
40 40 |
Strain @ Ultimate Strength |
ASTM D 6637 |
% |
13 10 |
13 10 |
13 10 |
13 10 |
Structural Integrity | ||||||
Junction Efficiency |
GRI GG2 |
% |
93 |
93 |
93 |
93 |
Flexural Rigidity |
ASTM D 1388 |
Mg-cm |
700000 |
1000000 |
3500000 |
10000000 |
Aperture Stability |
COE Method |
mm-N/deg |
646 |
707 |
1432 |
2104 |
Dimensions | ||||||
Roll Width |
-- |
M |
3.95 |
3.95 |
3.95 |
3.95 |
Roll Length |
-- |
M |
50 |
50 |
50 |
50 |
Roll Weight |
-- |
Kg |
39 |
50 |
72 |
105 |
MD denotes Machine direction. TD denotes transverse direction. | ||||||
