Specifications
Geogrid for steep slope1.Tensile strength in warp & weft direction;
2.Mesh size:12.7,25.4,50mm.
3.Roll width:1-6m

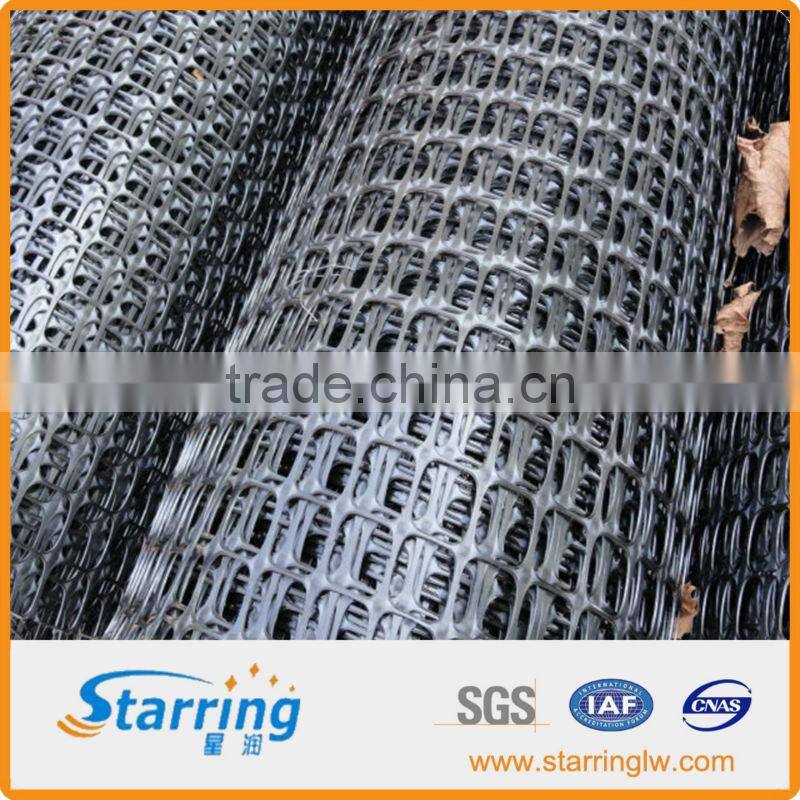

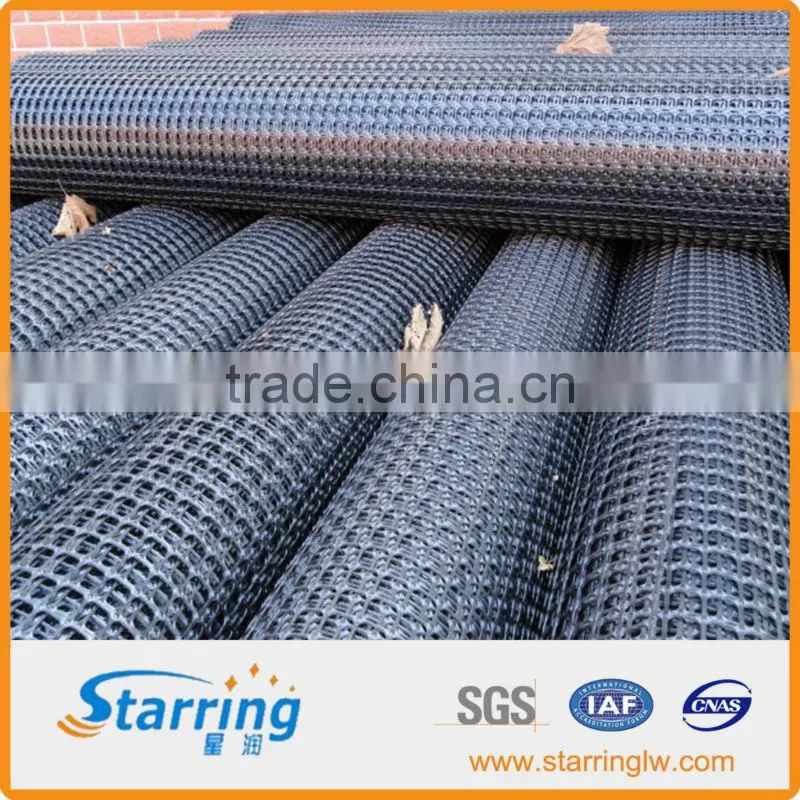

Geogrid for steep slope
Geogrid for steep slope Introduction
Geogrid is widely used in civil construction over the whole world. It is manufactured on the basis of high-impact polyethylene and polypropylene. Geogrids are used as reinforcement materials on mellow soils for railway and car roads, parking places, landing grounds and for the reinforcement of bridge piers, slopes and earth banks, for erosion protection of slopes.
Geogrid for steep slope Application recomandation:
Geogrids carry out the function of slopes protection, even of very steep ones, filling it with permeable materials, which increases slopes resistance to erosion. Specific moisture level inside the grid meshes provides vegetation (and esthetic view of earthworks).
Geogrids with gravel chippings for fill material provides horizontal stability of the road surface bed (fixation of gravel chippings under surface to prevent horizontal rupture). Geogrid application allows using gravel chippings of different kinds.
Geogrid application filled with ground material is one of the easy of soil reinforcement. The thickness of such construction may be 50% less than the thickness of standard replacement which allows avoiding costly soil replacement.
Geogrid protects channel slopes, provides resistance and stability, protecting this object from erosion. Additional advantage is drainage along channels. Geogrid application considerably reduces losses, connected with fall of ground, landslides and deformation of slopes. In case of water streams construction, geogrid application allows planting trees and shrubs along the banks protecting them from ablation. Geogrids are an economical solution for filling water stream base and creates almost an ideal surface for laying down a water resistant layer.
Slopes and subgrades with rails are a serious problem in railroad construction. Under high pressure the layers slide and deform consequently causing rail deformation, which requires closing railroad segments for a long time. Geogrid application allows carrying out comlex repair operations of the necessary road segment in shortest time (which is very essential in transportation).
Geogrid allows assembling within the temperature range from -40°C to +60°C. The material is neutral to aggressive environments and ecologically safe. Laying does not require additional machinery. In fold position geogrid does not take much place.
Geogrid for steep slope Specifiation
| Geogrid type GE 50 | Fin length, mm | Stretched mesh width, mm | Number of meshes according to the module width | Number of meshes according to the module length | Geogrid sizes in operating condition, mm | Module area, m2. | Cassette weight,< br />kg |
| GE 50/200 | 50 | 200/200 | 10 | 30 | 14,872 | 2400/6200 | 105 |
| GE 74/200 | 75 | 200/200 | 10 | 30 | 14,872 | 2400/6200 | 155 |
| GE 100/200 | 100 | 200/200 | 10 | 30 | 14,872 | 2400/6200 | 195 |
| GE 150/200 | 150 | 200/200 | 10 | 30 | 14,872 | 2400/6200 | 290 |
| GE 200/200 | 200 | 200/200 | 10 | 30 | 14,872 | 2400/6200 | 390 |
| GE 50/400 | 50 | 400/400 | 5 | 20 | 19,200 | 2400/8000 | 70 |
| GE 75/400 | 75 | 400/400 | 5 | 20 | 19,200 | 2400/8000 | 80 |
| GE 100/400 | 100 | 400/400 | 5 | 20 | 19,200 | 2400/8000 | 160 |
| GE 150/400 | 150 | 400/400 | 5 | 20 | 19,200 | 2400/8000 | 210 |
| GE 200/400 | 200 | 400/400 | 5 | 20 | 19,200 | 2400/8000 | 290 |
Pls feel free to contact us:
