Geocell used in Road

Specifications

Geocell used in Road
1.To the Improvement of shalllow riverway
2.To Support the Pipeline and Sewer

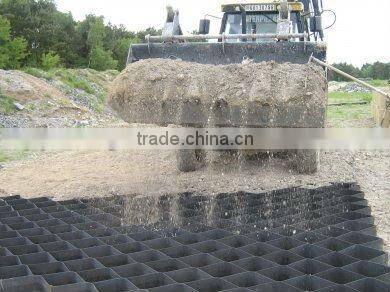

                                                                                Geocell used in Road

Functions:



1.Fix railway ground.

2.Fix weak ground of roads.

3.Block loading capacity.

4.Treat river way of shallow water.

5.Act as support in pipeline and sewer.

6.Act as comprehensive block stopping land sliding and bearing loading capacity.
7.Act as independent wall, dock and break-water.

8.Treat desert, beach, riverbed and bank



Product Description

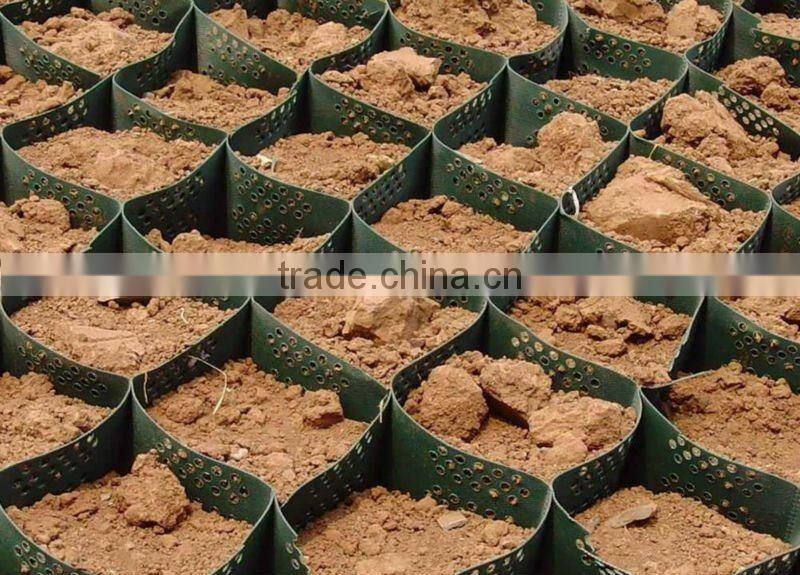

Geocell is made of a new type of high strength geosynthetics,which is popular with both domestic and abroad,in accordance with GB/T 19274-2003 implementation fo the standards,which welding the strengthened HDPE sheets by the high-power ultrasonic and forming to be a structure of the three-dimensional reticular formation,Easily folding and convenient for transportation.When be in construction,the geocell can be pull into a network and launched into a three-dimensional honeycomb grid,As it filled in soil,macadam,concrete or other granular materials,constituted to be a construction which has strong sidewise restraint and high rate of stiffness.





Technical Parameters





Item No.	Hight of Each Cell(mm)debiation	Welding points distance (mm)	Thickness of Geocell Sheet (mm)	Tensile Strength of Welding Points (N/cm)	Tensile Strength of Connection of Cells (N/cm)	Tensile Strength at Yield of Each Sheet (N/mpa)
LWST-G02	50	330≤A<1000	≥1.1	≥100	≥120	≥20
LWST-G03	75	330≤A<1000	≥1.1	≥100	≥120	≥20
LWST-G01	100	330≤A<1000	≥1.1	≥100	≥120	≥20
LWST-G04	150	330≤A<1000	≥1.1	≥100	≥120	≥20
LWST-G05	200	330≤A<1000	≥1.1	≥100	≥120	≥20
