Specifications
Plastic Geocell1.welding distance:330-1000mm
2.height:50-250mm
3.Textured or Smooth surface
Plastic Geocell
Plastic Geocell Introduction:

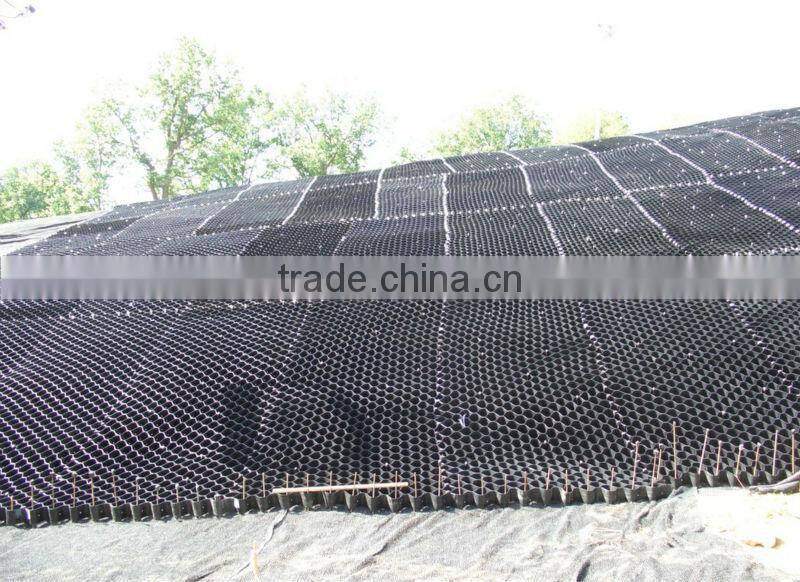

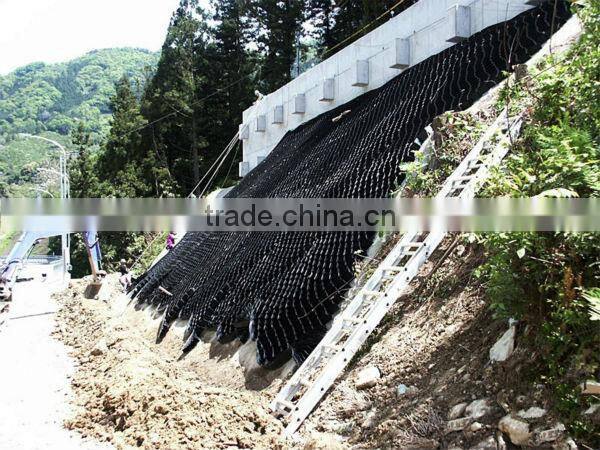

Plastic Geocell basement contruction structure holds the infill material in place on the slope and prevents settlement, or washout from wave action or other erosive forces.
1.welding distance:330-800mm
2.height:50-250mm
3.Textured or Smooth surface
4.Color: black,brown,green
Plastic Geocell Parameter Index:
Item Model | Height (mm) | Welding distance (mm) | Sheet thickness (mm) | Tensile yield strength of the cell (MPa) | Seam peel strength (N) | |
smooth | textured | |||||
TGLG-50-400 | 50 | 400 | 1~1.1 | 1.4~1.5 | 20.0 | 500 |
TGLG-100-400 | 100 | 400 | 1~1.1 | 1.4~1.5 | 20.0 | 1000 |
TGLG-150-400 | 150 | 400 | 1~1.1 | 1.4~1.5 | 20.0 | 1500 |
TGLG-200-400 | 200 | 400 | 1~1.1 | 1.4~1.5 | 20.0 | 2000 |
TGLG-75-330 | 75 | 330 | 1~1.1 | 1.4~1.5 | 20.0 | 750 |
TGLG-100-330 | 100 | 330 | 1~1.1 | 1.4~1.5 | 20.0 | 1000 |
TGLG-150-330 | 150 | 330 | 1~1.1 | 1.4~1.5 | 20.0 | 1500 |
Notes:(1)welding distance can be made: 330mm, 400mm, 500mm,550mm or according to the demands (2)The special spec or size can be manufactured according to the demands of the contract | ||||||
Pls feel free to contact us:
