Specifications
composite geomembrane with non-geotextile and membranetwo piece geotextile and one membrane
one piece geotextile and two
Composite geomembrane with non-geotextile and membrane

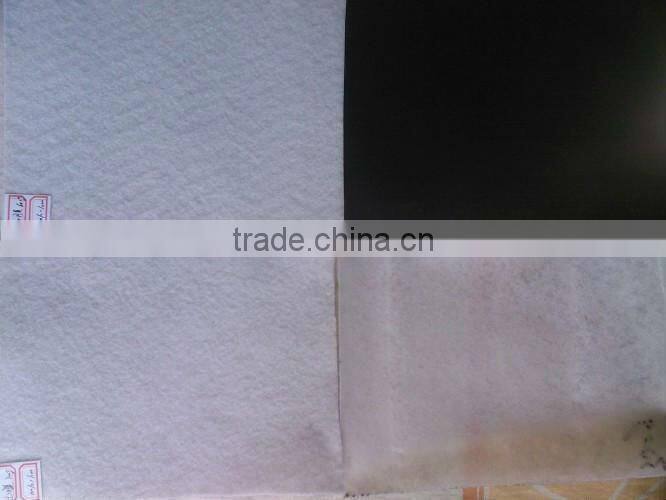

composite geomembrane with geotextile and membrane Introduction:
The composite geomembrane with geotextile and membrane compared with the other similar products,it can reduce the engineering cost,the length of juncture and shorten the construction period.The composite membrane with excellent aging resistance strength,its service life will last longer if it is buried underground.
Feature and usage of composite geomembrane with geotextile and membrane :
As a result of use of geotextile composite geomembrane (weaving machines or plastic woven cloth) for fabric, it has a geotextile In addition to isolation, drainage, reinforcement, protection, and other things have also closed (anti-) function can be widely used and Water dams, roads, airports, water, housing, environmental protection, and many other fields
composite geomembrane with geotextile and membrane Packing Specification:
Width:2-6m Length:50-100m (customized)
composite geomembrane with geotextile and membrane Application range:
Widely used in dam ,traffic tunnel,road,airport ,drainage, housing,environmental protection and many other fields for waterproof protection,reinforcement,etc.
GB/T17642-2008
Item |
Value |
|||||||||
|
Nominal Breaking Strength |
5 |
7.5 |
10 |
12 |
14 |
16 |
18 |
20 |
||
1 |
Breaking Strength(MD/CD) |
5.0 |
7.5 |
10 |
12 |
14 |
16 |
18 |
20 |
|
2 |
Breaking Elongation(MD/CD) |
30-100 |
||||||||
3 |
CBR Mullen Burst Strength |
1.1 |
1.5 |
1.9 |
2.2 |
2.5 |
2.8 |
3.0 |
3.2 |
|
|
4
|
(KN/m)≥ Tear Strength(MD/CD) |
0.15 |
0.25 |
0.32 |
0.40 |
0.48 |
0.56 |
0.62 |
0.70 |
|
5 |
Hydraulic Pressure |
As table 2 |
||||||||
6 |
/(N/cm) Peel Strength |
6 |
||||||||
7 |
Vertical Permeability Coefficient |
According to request |
||||||||
8 |
Width Variation/% |
-1.0 |
||||||||
Pls feel free to contact us:
