Dam Liner Compound LDPE Geo-membrane

Laiwu Starring Project Material Co., Ltd.

Negotiable MOQ: 10 Square Meters (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Trading Company

Year Established:

2010

Factory Size:

Below 1,000 square meters

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Specifications

Dam Liner Compound LDPE Geo-membrane
1.Excellent impermeable performance
2.Shorten construction period

Dam Liner Compound LDPE Geo-membrane

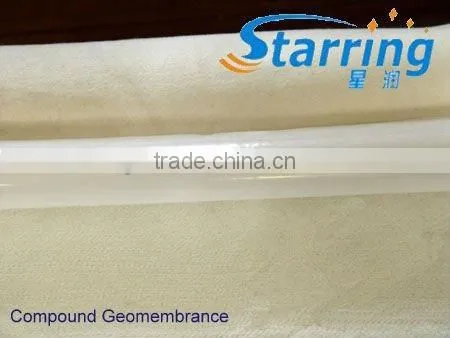

Name	Compound Geomembrane
Description	Compound geomembrane is a waterproof material formed with the fusing of non woven fabric and Polyethylene membrane. Compound geomembrane may be of two types - one side non woven fabric and one side PE membrane and two sides non woven fabric with PE membrane in between. Geomembrane Material:LDPE geomembrane Geotextile Material:PP or PET staple nonwoven geotextile PET filament spunbond nonwoven geotextile
Features	1.Excellent tensile strength
	2. High bursting resistance
	3.Aging resistance
	4.Anti-corrosion
	5.Long temperature range and life span
Application	As compound geomembranes have good plane drainage, excellent seepage resistance and high mechanic strengths such as tension, tearing, breaking and puncture resistance. River dike, lank bank, tailing bank, reservoir area, water channel and liquid tank (pit). Anti-seepage blocking of subway, basement and tunnel Waterlogging and anti-seepage of roadbed and other foundations. Horizontal anti-seepage laying of dike and bank, vertical anti-seepage layer of foundation, construction cofferdam and waste material yard. Seawater and freshwater cultivation farm.

Acupuncture common short-fabric non-woven / polyethylene composite geotextile strength requirements

Mass per unit are g/m2	400	500	600	700	800	900	1000	Marks
Thickness of membrane mm	0.250.35			0.30.5
Tensile at break kN/ m	5	7.5	10.0	12.0	14.0	16.0	18.0	MD/CD
CBR strength kN	1.1	1.5	1.9	2.2	2.5	2.8	3.0
Tear strength kN	0.15	0.25	0.32	0.40	0.48	0.56	0.62	MD/CD
Note: According to the specifications of thickness per unit area, the actual specifications in the range of specifications between the adjacent table, according to the interpolation method to calculate the appropriate evaluation indicators; beyond the scope of the table, the assessment indicators to be negotiated by the supply and demand.
