Specifications
Compound HDPE Geomembrane1.Good flexibility, isolation, drainage, reinforcement
2.Safe and easy for construction
Compound HDPE geomembrane
Product Specification
1.One piece of geotextile and one piece of membrane:Weight of base geotextile:100-1000g/m
Thickness of geomembrane :0.1-1.5mm
2.Two pieces of geotextile and one piece of membrane:Weight of base geotextile:80-600g/m2;Thickness of geomembrane: 0.2-1.5mm
3.One piece of geotextile and two pieces of geomembrane:Weight of base geotextile :100-1000g/m2;Thickness of geomembrane :0.1-0.8mm
4.Multi-layers:Weight of base geotextile :100-1000g/m2; Thickness of geomembrane :0.1-0.8mm
Sorts:
1) One layer of geo-textile fabric, and one layer of geo-membrane.
The weight of geo-textile fabric ranges from 100g/sqm to 600g/sqm.
The thickness of geo-membrane ranges from 0.2mm to 1.5mm.
2) Two layers of geo-textile fabric, and one layer of geo-membrane. The weight of geo-textile fabric ranges from 100g/sqm to 600g/sqm.
The thickness of geo-membrane ranges from 0.2mm to 1.5mm.
2. Advantages:
Good flexibility, with the same isolation, drainage, reinforcement, protective functions of geo-textile fabric, and also being impermeable.
3. Usage:

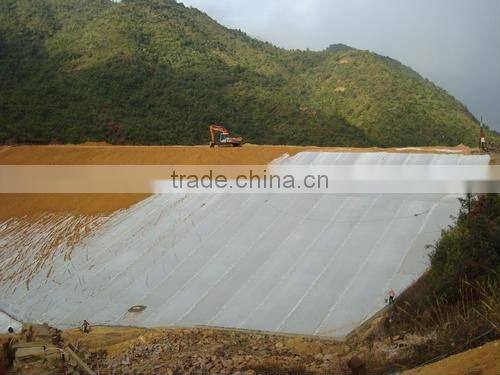

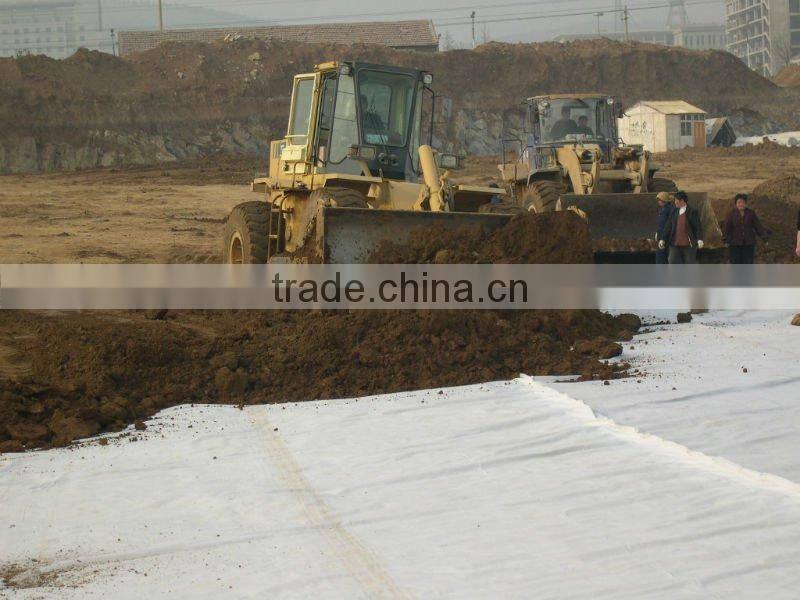

Widely used in dam, traffic tunnel, road, airport, drainage, housing, environmental protection and many other fields for waterproof, reinforcement etc.
4. Technical specification (GB/T17642--2008):
GB/T17642-2008
Item |
Value |
|||||||||
|
(KN/M) Nominal Breaking Strength |
5 |
7.5 |
10 |
12 |
14 |
16 |
18 |
20 |
||
1 |
/(KN/m) Breaking Strength(MD/CD) |
5.0 |
7.5 |
10 |
12 |
14 |
16 |
18 |
20 |
|
2 |
Breaking Elongation(MD/CD) |
30-100 |
||||||||
3 |
CBR Mullen Burst Strength |
1.1 |
1.5 |
1.9 |
2.2 |
2.5 |
2.8 |
3.0 |
3.2 |
|
|
4
|
/(KN/m)≥ Tear Strength(MD/CD) |
0.15 |
0.25 |
0.32 |
0.40 |
0.48 |
0.56 |
0.62 |
0.70 |
|
5 |
/MPA Hydraulic Pressure |
As table 2 |
||||||||
6 |
/(N/cm) Peel Strength |
6 |
||||||||
7 |
(CM/S) Vertical Permeability Coefficient |
According to request |
||||||||
8 |
Width Variation/% |
-1.0 |
||||||||
