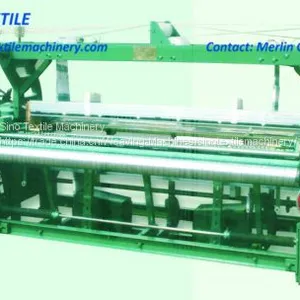

GA788 rapier loom is a kind of mini weaving loom; it is the updated model of 747 series rapier looms with many improvements. This type of shuttleless loom provides higher speed, more stable performance and longer function life, with a wide weaving adaptability including natural fibers like cotton, polyester, wool, linen, and chemical yarns and blended yarns.
It meets the requirements of the textile weaving industry with its high unit area yield, higher fabric quality and wider fabric adaptability; it is the most successful weaving solution for the textile industry.
It is controlled by micro-computer and equipped with automatic warp/weft stop devices and semi-automatic oil supply. The strengthened walls offer better machine stability, lower vibration, lower noise and higher density fabrics. The GA788 rapier loom machine price is on the low side so as to meet most customers’ needs.
Salient Features
Nice appearance
Stable performance
Strong structure and heavy machine body
Thick upper girders with inclined support
Solid square steel tube central and lower girders
Low noise
Long endurance
Easy maintenance
Continuous take-up mechanism optional
Double fabric pressing rollers optional
Square/round gearbox optional
Tuck in device optional
Cross front support
Technical Parameters
Width |
1800mm-3600mm |
Operation speed |
120-215rpm |
Weft density |
10~47picks/cm |
Take up |
mechanical take-up, beam diameter φ600mm |
Let off |
mechanical let-off, beam diameter φ300mm or φ400mm |
Shedding |
GT221 inhead type mechanical dobby or electronic dobby, 20 heald frames at most |
Color selector |
4~6 colors |
Selvage |
Left, right and central tuck in device optional |
Main drive |
1.5kw |
Automatic functions |
automatic warp stop, automatic weft stop |
Electronic control |
micro-computer control, LCD display of working statistics data |
