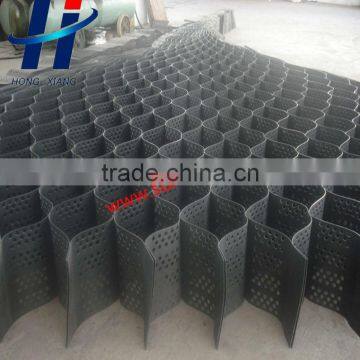

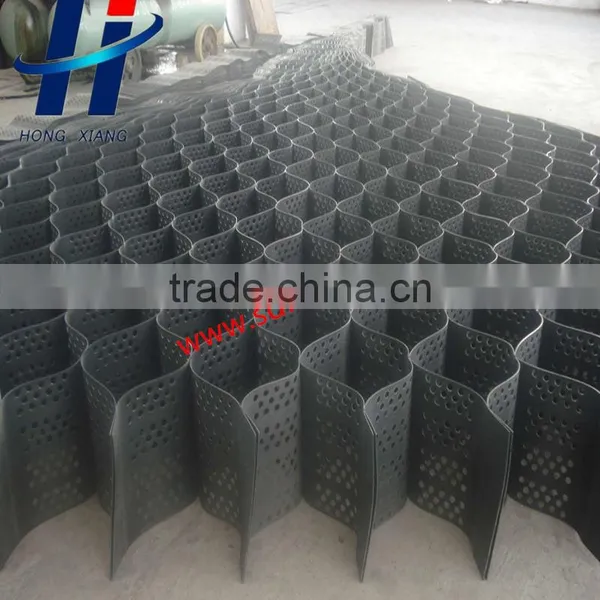

Smooth Black Perforated HDPE Geocell

Smooth Black Perforated HDPE Geocell thumbnail-1
Smooth Black Perforated HDPE Geocell thumbnail-2
Smooth Black Perforated HDPE Geocell thumbnail-3
Smooth Black Perforated HDPE Geocell photo-1
Smooth Black Perforated HDPE Geocell photo-2
Smooth Black Perforated HDPE Geocell photo-3
US$ 1.72 - 1.76 MOQ: 20000 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Hongxiang
Model Number:
GS-100-500
Contact Supplier Request Quote Chat Now
Hongxiang New Geo-Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Hongxiang
Model Number GS-100-500
Material HDPE
Product Description

Geocell is made of high strength HDPE or PP broadband or geobelt, Forming a three-dimensional honeycomb grid structure after a strong welding (or fastening) .

1. Property:

It is retractile , folds up easily for transport,stretched and filled concrete and stone, forming strong lateral limitations and stiffness structure.

In geotechnical engineering, geocell with soil, sand, stone or concrete filler constitutedifferent apparent cohesion .Cushion of  different reinforcement strength and different depth,

These cushion can be placed in the desired position according to the requirements of the project, To reinforce the highway, railway subgrade and soft soil foundation, slope protection and greening structure and construction of retaining wall, etc.



The biggest characteristic is to be able to  complete a variety of difficult problems that  is difficult to deal with conventional method in geotechnical engineering, such as vehicle bumping at bridge head, soft foundation subsidence, frost boiling, landslides and desert roadbed. At the same time, the construction of this material is also very convenient.

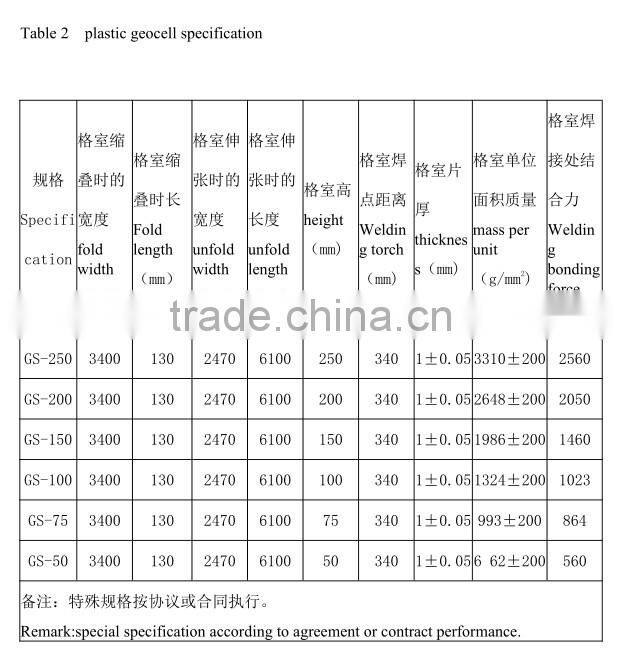

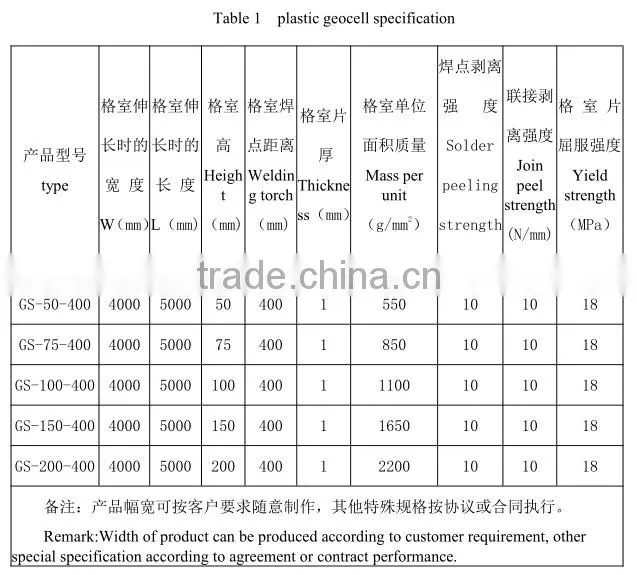

Specification:

Smooth Black Perforated HDPE GeocellSmooth Black Perforated HDPE Geocell

Smooth Black Perforated HDPE Geocell

3,Application of HDPE geocell

 (1). processing  half  fill Semi roadbed
 build up the embankment on the ground on the slopes of the natural slope ACTS in 1:5, supporting subsoil should dig the steps, The step width shall be less than 1 m, when building or rebuilding roads widened by installments, Convergence between the new and old roadbed fill slope ,should dig the step, high grade highway width is 2 m,  laid large geocell in each of the steps horizontally, using the large geocell  of their own facade confining reinforcement effect, better solve the problem of uneven settlement
Smooth Black Perforated HDPE Geocell
(2). subgrade in wind drift sand region
Sand subgrade should be given priority to with low embankment, region filling height not less than 0.3 m. generally due to its low subgrade, sand subgrade construction in professional requirements and heavy load, adopting large chamber loose packing confining effect, can be in limited the height of the roadbed with high stiffness and strength, to inherit the load stress of large vehicles.
(3). Reinforced back subgrade soil
Using large geocell  can better achieve the goal of  abutment back reinforced ,  can generate enough friction between the geocell and packing .  and effectively reduce roadbed uneven subsidence, finally can effectively relieve the abutment jump car "disease early impact damage of bridge deck.
(4). subgrade in permafrost region
In permafrost regions fill roadbed construction, should reach a minimum filling height in order to prevent or cause a frozen layer ceiling Frothing decreased, resulting in an excess of embankment settlement occurs. Geocell unique overall unconfined facades reinforced effect and effectively implemented, can ensure a minimum filling height in some special area to the maximum extent, and to fill a high-quality strength and stiffness.
(5). The collapsibility loess roadbed treatment
When the highway and the highway collapse loess and loess lot better compression by wet, or foundation bearing capacity is lower than the high embankment to allow third-party vehicle load and weight of pressure embankment, subgrade bearing capacity requirements should also for processing, then the superiority of Geocell on manifest is no doubt.
Smooth Black Perforated HDPE Geocell
Packaging & Shipping

  1 *20 FT Loading QTY: 20000m2



1 *40HC Loading QTY:30000M2

Smooth Black Perforated HDPE Geocell

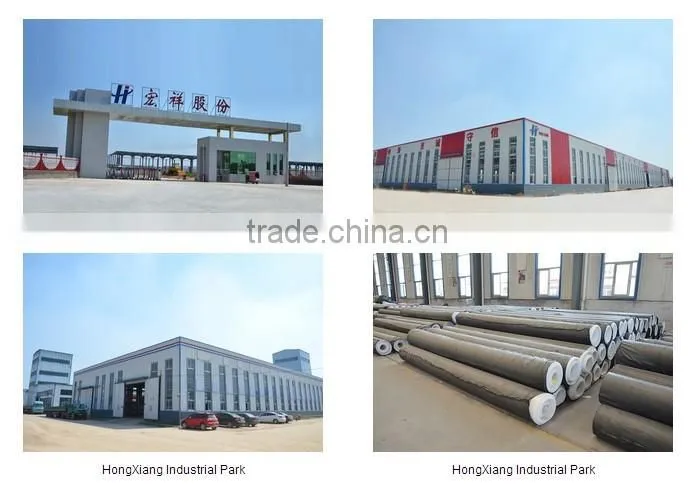

Company Information

 Hongxiang established since 1987, it occupies a land of 530000 m2, more than 25 years experience,



there are 135 production lines,  and we can produce more than 90% geosynthetics products now.



Smooth Black Perforated HDPE Geocell

Our Services



1. Send your geo-material detail requirement to us.( Attached with technical data or Sample will be better)

2. We will quote you the price and leading time based on your information by email.

3. Sign PI or contract as we agreed. Production will be start after receive the deposit.

4. We will send you the production photo or video for your reference.

5. QC check. You can send your QC worker or we will send you our photo or video.

6. We will ship your GEO-MATERIL GOODS (and provide B/L) after we received the balance.

Smooth Black Perforated HDPE Geocell
