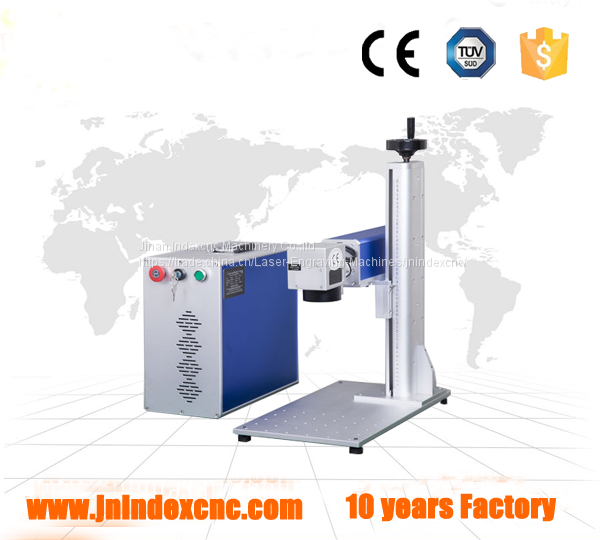

20w fiber laser marking machine
for stainless steel,
leather, aluminum
Applicable industry:
Morn Fiber laser marking series machine is widely used in metal and non-metal fields,such as automatic parts industry, medical equipment, electronic components, IT industry, hardware industry, precision apparatuses, jewelry, crafts, high-low-boltage appliances, packaging indstry,etc.
Applicable material:
Morn Fiber laser marking machine is professional for both metal and non-metal material marking. Such as stainless steel, carbon steel,aluminum,copper, chrome, anodized aluminum,silicon wafer, etc. as well as lots of non metal materials, like ceramic, rubber, plastic, leather, cardboard, etc.
Product Application of fiber laser marking machine
This 20W air cooling portable fiber color laser marking machine widely apply to electronics, computer,
watches, hardware, many kinds of tools and other industries, and mark on the surface of many kinds of
metal material ( stainless steel, high speed steel, alloy steel, iron, aluminum and aluminum alloy, etc )
and parts of non-metallic materials ( ABS, PC etc)
Technical Parameters of fiber laser marking machine:
No |
Item Name |
Parameter |
1 |
Model |
INJ 20W |
2 |
Laser Power |
20W (100w 30w 50w for optional) |
3 |
Laser wavelength |
1064nm |
4 |
Laser type |
Germany IPG (Domestic Raycus,CAS,MAX,SUPER for optional) |
5 |
Laser beam quality |
M2:1.5 |
6 |
Repeat Frequency |
30KHz-60KHz |
7 |
Repeat Positioning Accuracy |
0.005mm |
8 |
Min linear width |
0.01mm |
9 |
Marking Depth |
0.01-0.5mm |
10 |
Standard Marking Area |
110*110mm(optional150*150mm/200*200mm/300*300mm) |
11 |
Cooling |
Air cooling |
12 |
Rated Power Consumption |
500W |
13 |
Operating Voltage |
110V- 240V/50-60 Hz/15A |
14 |
Gross weight |
80 kg |

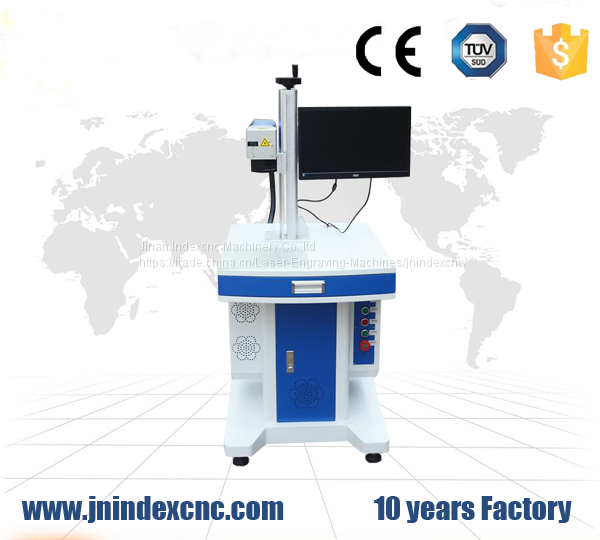

Available model of fiber laser marking machine

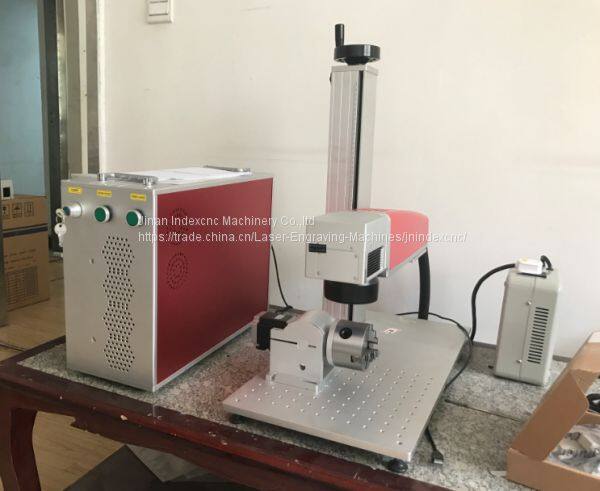

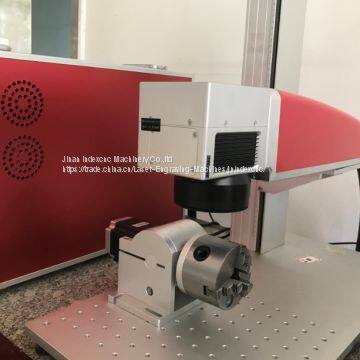

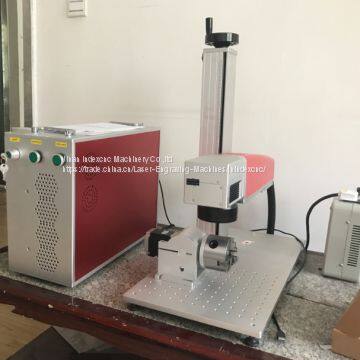

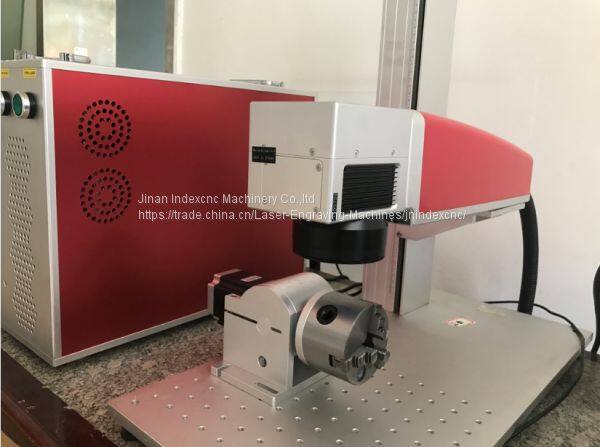

Details of fiber laser marking machine

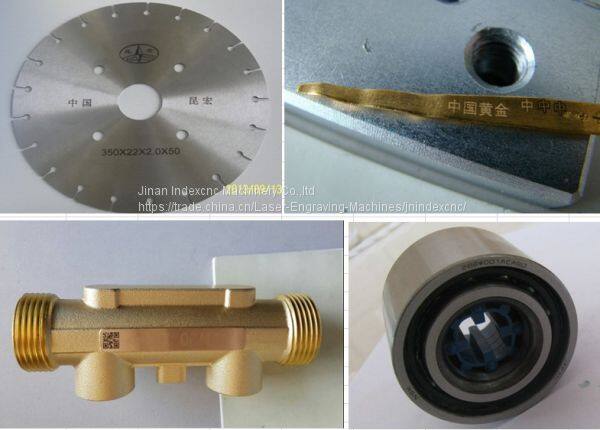

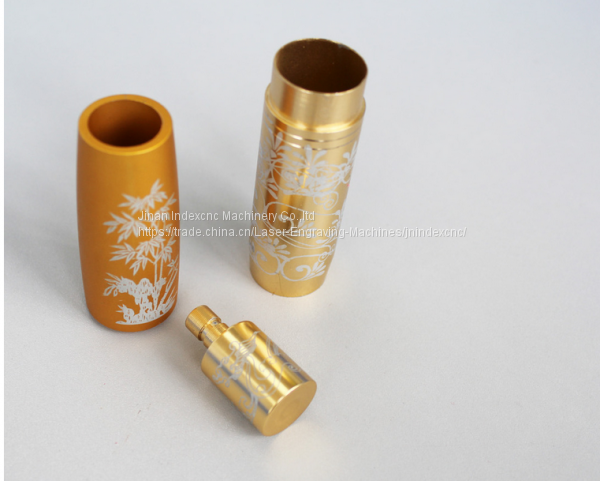

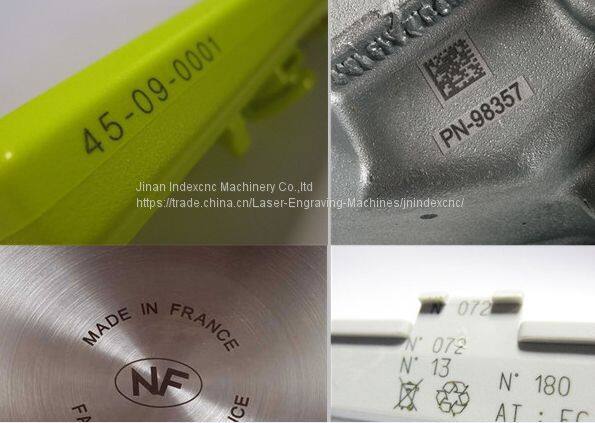

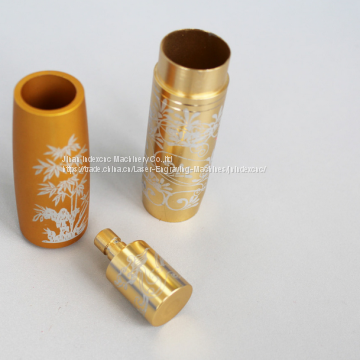

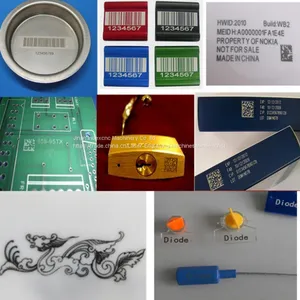

samples of fiber laser marking machine
Pre-sale service:
1. Free sample making:
For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Sample shipping back cost should be paid by purchaser.
2. Progressing Solution Design:
According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
After-sale service:
1. Warranty
Two years warranty for whole machine.
2. Technical support
Lifelong technical support online or by email and 18 hours online service to help you use our machine well.
3. Oversea service
Offer oversea service for training,installing, operating if necessary (Buyer need offer food & accommodation, round tickets and engineer charges USD200/day)
4. Tranining service
Offer training at our factory for free (you could visit us and learn)
