Latest Fiber Laser Marking Machine

Name: Latest Fiber Laser Marking Machine
Brand: YUNNENG
Price: USD $7,500 - 9,900 / Set

FOB Price

USD $7,500 - $9,900 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Laser Type:	Fiber Laser	CNC or Not:	Yes
Cooling Mode:	Air Cooling	Control Software:	EZCAD	Graphic Format Supported:	AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Working Accuracy:	0.003mm	Place of Origin:	Shandong, China	Brand Name:	YUNNENG
Model Number:	YN-20	Power(W):	20W	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas

Packaging Details

plywood case to protect portable fiber laser marking machine well

Product Description

Latest Fiber Laser Marking Machine

Product Description

Portable fiber laser marking machine applicable materials and industry
1. Ink and paint; phone battery labels, panels, phone key-press, small daily necessities ,accessories and so on.
2. Ceramics, EP materials; marking of electronic component package, IC, etc.
3. Plastic products; mark device shell, electronic products, LOGO, and other numerical orders
4. Metal and its surface; Stainless steel, copper, aluminum and oxidation, electroplating; used in marking hardware, daily necessities, electric cladding, Phone case etc.
5. Keyboard and keystoke; Fine Marking of keyboard and keystoke

Product Specification

Model		YN10	YN20	YN30
Laser Power		10W	20W	30W
Laser Wave length		1064nm
Q-frequency		20KHz~30KHz
Divergence		0.3mard
Marking Range		110110mm /175175mm
Minimum Line Width		0.02mm
Minimum Character		0.15mm
Marking Depth		0~0.5mm
Engraving Line Speed		≤7000mm/s
Repeatability Accuracy		±0.001mm
Beam Quality		M2:1.2~1.8
Marking Format		Graphics,Text,Bar Codes,Two-dimensional Code, Automatically Marking theDate,Batch Number, Serial Number,Frequency,etc.
Graphic Format Supported		bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Working Voltage		220V±10%/50Hz/4A
Unit Power		<0.5kw
Use of the Environment		Clean and Dust Free or Dust less
Working Condition:Humidity		5%-75%,Free of Condensed Water
Laser Module Life		>100000hours
Optional Marking Area	50mm50mm / 100mm100mm / 200mm*200mm
Optional (Not free of charge)	Rotary Device, Moving Table, other customized Automation

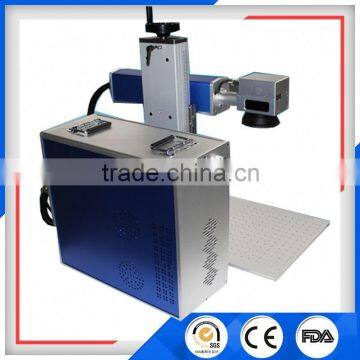

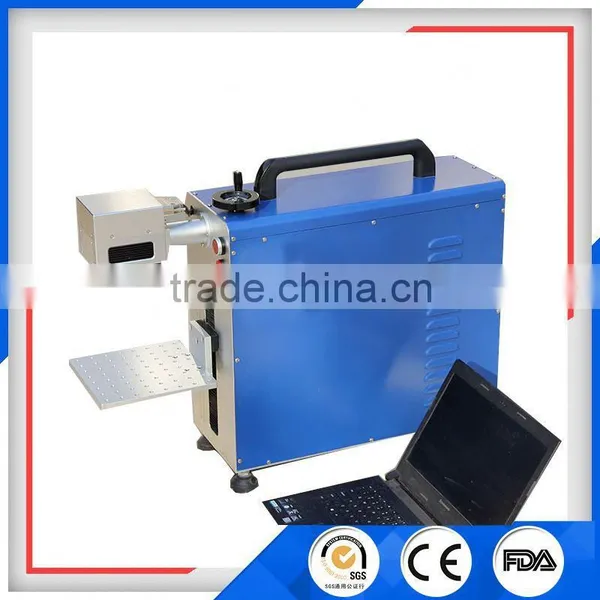

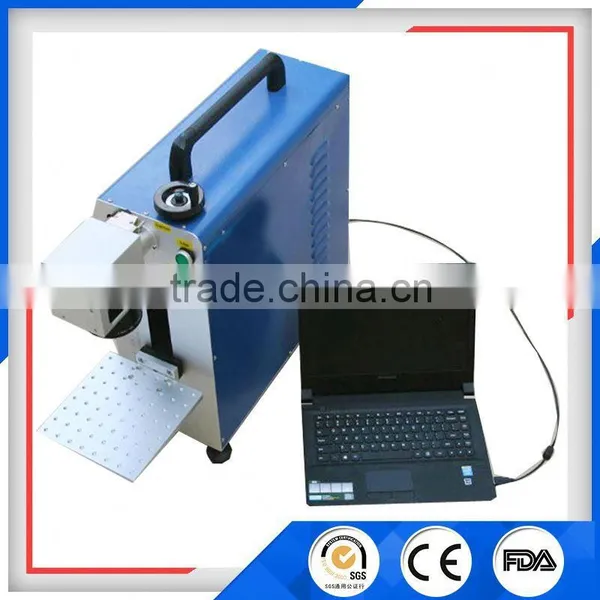

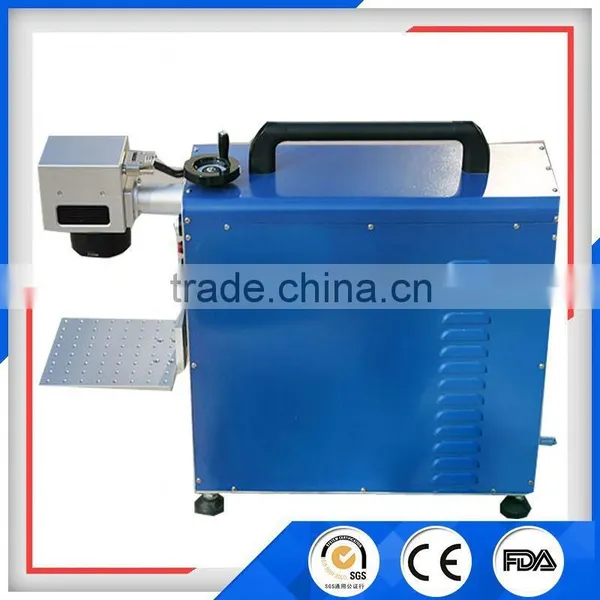

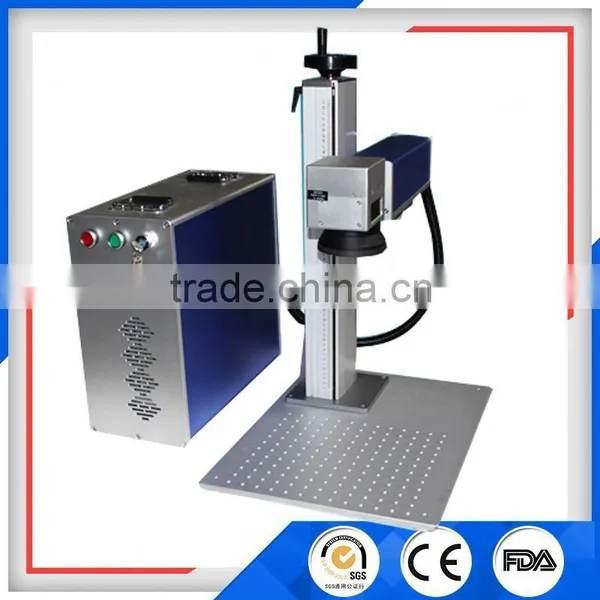

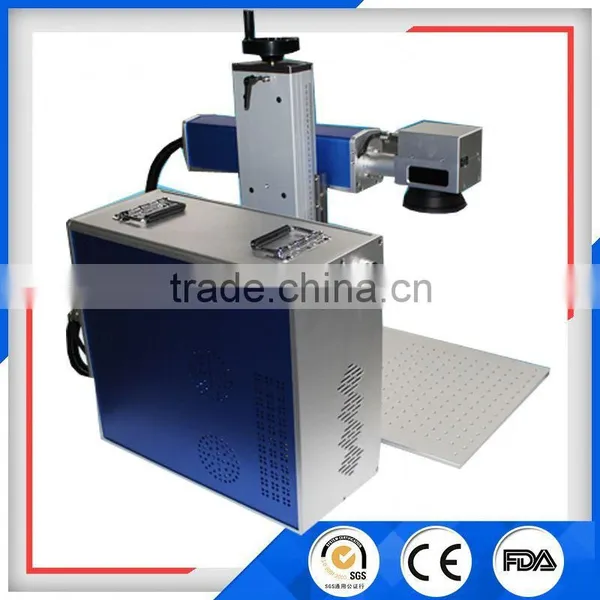

Detailed Images

Samples Show

Portable fiber laser marking machine Main Features

1.Fiber laser, Basic model, high speed galvo scanner; IPG laser and Chinese Brand laser for option.
2.Maintenance Free, save equipment and worker cost;
3.Imported Galvonometer, Higher precision,faster speed;
4.Higher photoelectric conversion efficiency, Low power consumption;
5.Red light preview, more accurate and reduce positioning time;
6.Laptop with Powerful marking software;
7.User friendly software interface, easy operation;
8.Set and deal different layers graphic separately;
9.Support PLT,PCX,AL,DXF, BMP,JPG formats file;
10.Compatible AutoCAD,CorelDraw,Photoshop etc software Automatic serialization,date coding letter, symbol, pattern, figure, image, bar code, 2D code auto arrangement and amendment.

Our Services

Pre-Sales Service

1.Inquiry and consulting support.

2.Sample testing support.

3.View our Factory.

After-Sales Service

1.Training how to instal the machine, training how to use the machine.

2.Engineers available to service machinery overseas.But the fee should be paid by the buyer

One year to guarantee the total machine

Packaging
Size	600(L) * 200 (W) * 700 (D)
Weight	98kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
