Floral Foam Production Line

Floral Foam Production Line photo-1
Floral Foam Production Line photo-2
Floral Foam Production Line photo-3
Floral Foam Production Line photo-4
US$ 125,000 - 125,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Pe Film
Place of Origin:
Hebei, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Xingang Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Pe Film
Place of Origin Hebei, China
Brand Name HUIYA
Model Number HUIYA
Voltage 380v
Power(W) 100kw
Dimension(L*W*H) 4500*1840*4100
Weight 5700KG
Certification CE, UL
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

 The Floral Foam production line includes resin synthesis equipment,automatic foaming machine,foaming mould,cutting and printing machine,PH processing equipment.etc.



Main equipment introduction:



1.The heating container



product porpose:Using electric heating technology,melting the raw material,and keep the best state.

Floral Foam production line

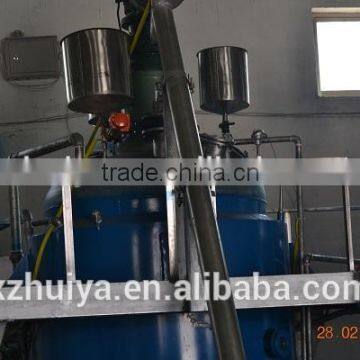

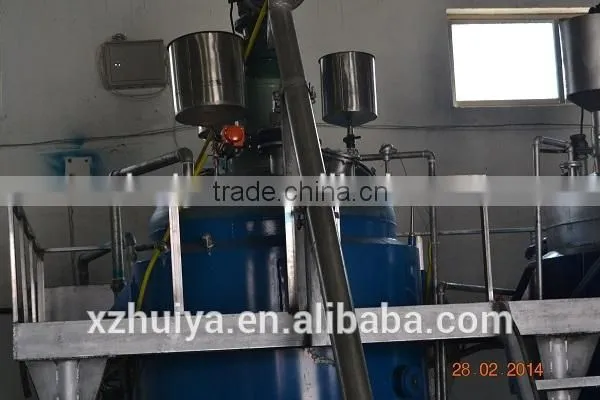

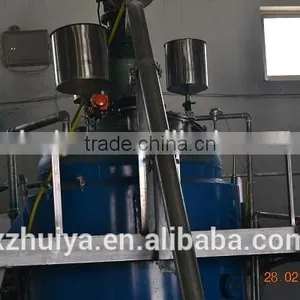

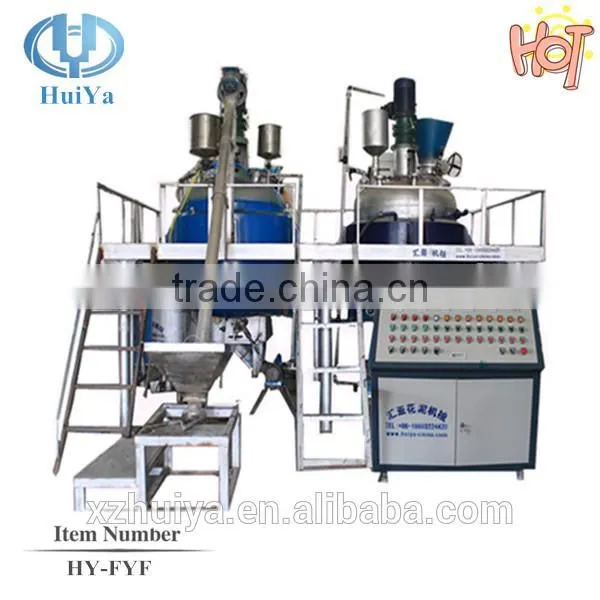

2.Synthetic Resin Equipment



product purpose:The inside wall of reactor is 304 stainless steel,Automatic control cabinet is used to accurately control the temperature and input materials,which can enjoy stable product quality and reduce production time and labor.



Size(m)

Weight(t)

1 reactor

2*2*3

1t

1 reactor+1 storage tank

2*4*3

1.9t

2 reactors+1 storage tank

2*6*3

2.8t

2 reactors+2 storage tanks

2*8*3

3.7t

Screw Feeder Electricity

1.5kw

Heating Element Electricity

One tank include 4 heating elements,4kw/each one.

Material

Inside:304 stainless steel,6mm  Outside:carbon steel,6mm

Capacity

Max:1000L ,We usually use 800L

Package

Plain Packaging

Electricity

1 motor:5.5KW

Voltage

380V,can be customized

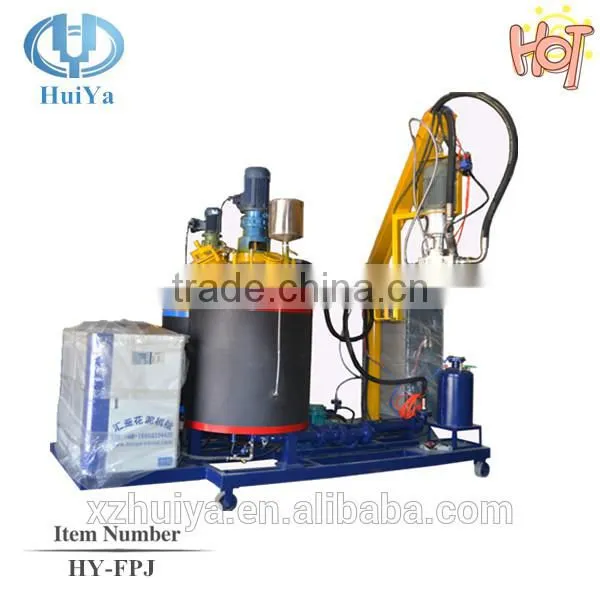

3.Two Component Floral Foaming Machine
Microcomputer PLC control:TIAN electrical components exclusively imported to achieve the goal for automatic,accurate and reliable control,it can be imputed with more than 500 working position data"pressure,temperature and rotation rate digital tracking and display and automatic control:equipmed with abnormit or fault alarm devices,Imported converter(PLC)can control eight different product ratio.
size:3.8m*2.2m*2.2m        weight:2 ton


Material

Power

capacity

Container A

Inside:304 stainless steel  oueside:carbon steel

4.0KW

800L

Container B

Inside:pp  oueside:carbon steel

1.1KW

400L

Gear Pump

Used in Container A,Motor power:5.5kw

Screw Pump

Used in Container B,Motor power:2.2kw

Floral Form Machine Size:3.8m*2.2m*2.2m      Weight:2 ton   can be customized

 Floral Foam production line

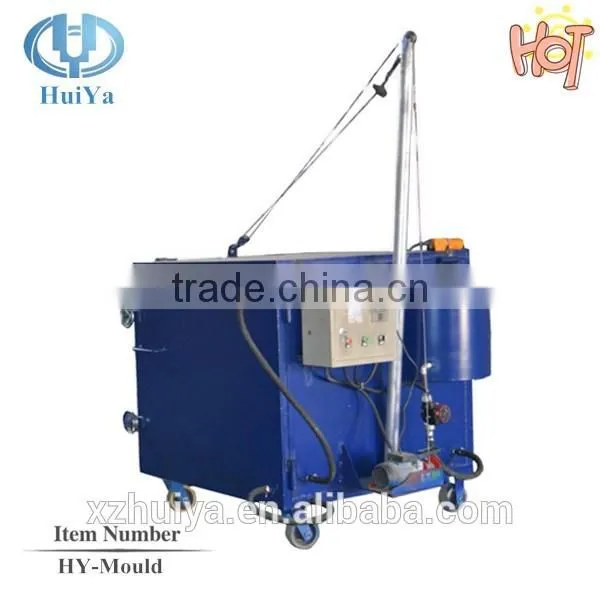

4.Foaming mould
Using automatic electricao heating temperature control system to make foloral foam heat evenly and maintain the temperature.And it makes floral form shapped constantly with uniform density and enjoys little waste.

Material

Inside:10mm,carbon steel    Outside:6mm,carbon steel

Normal size

1.3m*1.1m*1.4m

Weight

1.3ton

Back cover hoist electricity

0.5kw

Heating Machine power

3kw

 Floral Foam production line

5.cutting machine
Computer control,simple operation,Equipped with suction machine,greatly reduces the floral foam powder pollution,make working environment healthy.

vertical cutting machine



Size

1.8m*2.85m*2.5m

Weight

0.8 ton

Electricity

2.5kw

Standard configuration

3 saw blade,vacuum cleaner,20m PVC pipe





horizontal cutting machine



Size

5m*3.3m*2.5m

Weight

2.3t

Standard configuration

3 saw blade



 Floral Foam production line









Our Services

  The engineers are available to seve overseas. We will teach you the operation of the production line, and provide service for you.At the same time, your workers can come to our factory to learn the whole technology and operation.

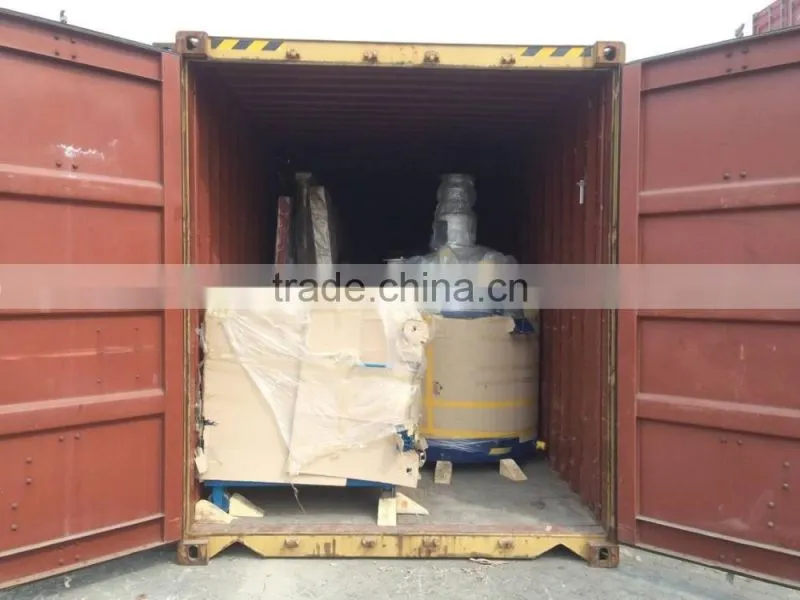

Packaging & Shipping



Selling Units:Single item
Single package size: 500X300X200 cm
Single gross weight:2000.0 KG

 Floral Foam production lineFloral Foam production line

Company Information



We are specializing in exporting wet floral foam, floral foam machine, technology and chemial materials.
Our company also have one floral foam factory , the factory's name is Hebei Huiya Floral Foam special equipment Co.,Ltd. So we can give you the good price and we can guarantee the quality of our floral foam .

We are a professional enterprise of highly efficient and energy-saving equipment and technology, integrating research and development, production, marketing and service.

 Our main business range includes:
*The floral foam production Line
* Floral foam Machines & Technology
* Chemical materials for making floral foam
* Various size of floral foam
