HUIYA Production Line for Floral Foam

HUIYA Production Line for Floral Foam photo-1

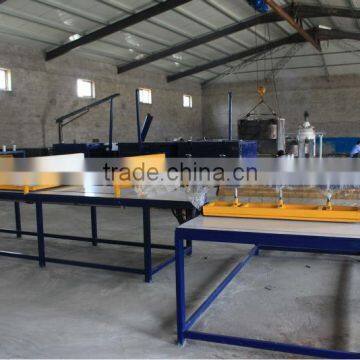

HUIYA Production Line for Floral Foam photo-2
HUIYA Production Line for Floral Foam photo-3
US$ 100,000 - 120,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Bubble Film
Place of Origin:
Hebei, China
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Bubble Film
Place of Origin Hebei, China
Brand Name HUIYA
Model Number HY-P1
Voltage 380V
Power(W) 150KW
Dimension(L*W*H) 4500*1840*4100
Weight 5700KG
Certification CE, UL
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Product Description



 The Floral Form production line includes resin synthesis equipment,automatic foaming machine,foaming mould,cutting and printing machine,PH processing equipment.etc.



Main equipment introduction:

1.The heating container

product porpose:Using electric heating technology,melting the raw material,and keep the best state.

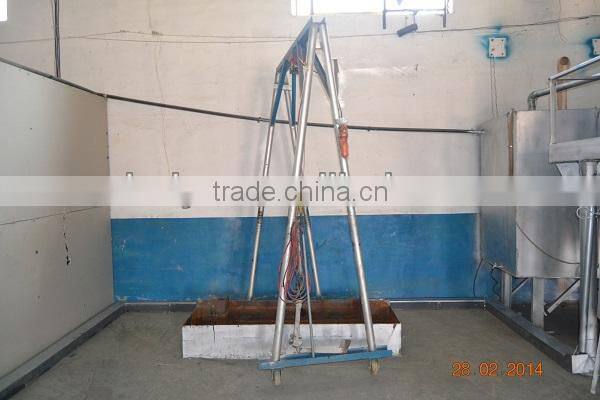

 HUIYA production line for floral foam

2.Synthetic Resin Equipment

product purpose:The inside wall of reactor is 304 stainless steel,Automatic control cabinet is used to accurately control the temperature and input materials,which can enjoy stable product quality and reduce production time and labor.

Size:



Size(m)

Weight(t)

1 reactor

2*2*3

1t

1 reactor+1 storage tank

2*4*3

1.9t

2 reactors+1 storage tank

2*6*3

2.8t

2 reactors+2 storage tanks

2*8*3

3.7t

 Electric power:1 electric motor,5.5kw

                            heating machine,4kw
HUIYA production line for floral foam
3.Two Component Floral Foaming Machine
Microcomputer PLC control:TIAN electrical components exclusively imported to achieve the goal for automatic,accurate and reliable control,it can be imputed with more than 500 working position data"pressure,temperature and rotation rate digital tracking and display and automatic control:equipmed with abnormit or fault alarm devices,Imported converter(PLC)can control eight different product ratio.
size:3.8m*2.2m*2.2m        weight:2 ton
HUIYA production line for floral foam
4.Foaming mould
Using automatic electricao heating temperature control system to make foloral foam heat evenly and maintain the temperature.And it makes floral form shapped constantly with uniform density and enjoys little waste.
.HUIYA production line for floral foam
5.cutting machine
Computer control,simple operation,Equipped with suction machine,greatly reduces the floral foam powder pollution,make working environment healthy.
 HUIYA production line for floral foamHUIYA production line for floral foam
At first we cut the surface,then we cut it into pieces.
Our Services

 The engineers are available to seve overseas. We will teach you the operation of the production line, and provide service for you.At the same time, your workers can come to our factory to learn the whole technology and operation.

Company Information



We are specializing in exporting wet floral foam, floral foam machine, technology and chemial materials.
Our company also have one floral foam factory , the factory's name is Hebei Huiya Floral Foam special equipment Co.,Ltd. So we can give you the good price and we can guarantee the quality of our floral foam .

We are a professional enterprise of highly efficient and energy-saving equipment and technology, integrating research and development, production, marketing and service.

 Our main business range includes:
*The floral foam production Line
* Floral foam Machines & Technology
* Chemical materials for making floral foam
* Various size of floral foam

Our success case:

Indian customer

HUIYA production line for floral foam

Packaging

Selling Units:Single item
Single package size: 500X300X200 cm
Single gross weight:2000.0 KG




HUIYA production line for floral foam
