Auto equipment production line for wet floral foam use in China supplier
- 100 Set / Sets per Month
- Tianjin port
- T/T Credit Card
- Lightweight thermal insulation house prefabricated wall panel price
- Mgo Sound insulation and heat preservation concrete hollow lightweight partition wall panels
- lightweight partition wall panel
- building material Mgo precast wall panels
- Mgo lightweight concrete foam wall panels Quality Choice
- Supply perforated/acoustic/sound-absorb wall panel mgo board/fireproof mgo board/magnesium oxide board
Product Details
Condition: | New | Product Type: | Foam Net | Place of Origin: | Hebei, China |
Brand Name: | HuiYa | Model Number: | HY-1008 | Voltage: | customized |
Power(W): | customized | Dimension(L*W*H): | customized | Weight: | customized |
Certification: | CE | Warranty: | one year(exclude wearing parts ) | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Auto equipment production line for wet floral foam use in China supplier
Highly efficient and energysaving equipment and technology, integrating research and development, production, marketing and service,main business range includes:
The floral foam production Line
Floral foam Machines & Technology
Chemical materials for making floral foam
Various size of floral foam
Our products have been exported to many countries,such as India,Vietnam,Malaysia,Venezuela,Iran,Pakistan,Ukraine,fiji,etc.

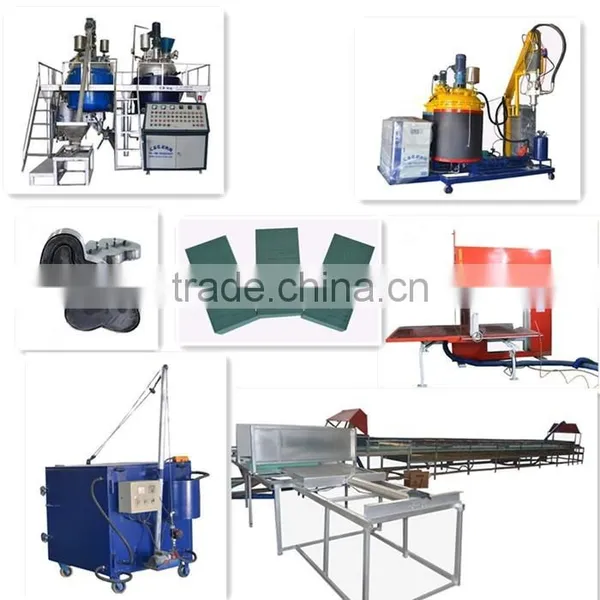

General Production Process
Firstly use the Reaction Kettle to produce the Phenolic Resin,then use the High Speed Disperser
make the phenolic resin completely mixed and dispersed;After that,put the mixed and dispersed
phenolic resin into Foam mould to proceed foaming;Then use the cutter to cut them as final floral foam.
Product Purpose
Wet Floral foam in various shapes
Equipment specifications
Electrical heating reaction vessel
The principle of electrical heating the reaction kettle is insert electric heater in the jacketed heat conduction oil,using thermal oil as medium is introduced into the wall of a kettle, make the material inside the kettle is heated response. Reaction pot consists of pot, stainless steel tube body, jacket, mixer, shaft sealing device and bearing, shaft sealing device is divided into packing seal and mechanical seal.
HY-803 Two Component Floral Foaming Machine
Main unit: Material injection by a precision needle valve, which is taper sealed, never worn, and never clogged; the mixing head produces complete material stirring; precise metering (by a precision metering pump); single button operation for convenient operation; switching to a different density or color at any time.
Control : Microcomputer PLC control; TIAN electrical components exclusively imported to achieve the goal for automatic, accurate and reliable control can be imputed with more than 500 working position data; pressure,temperature and rotation rate digital tracking and display and automatic control; abnormity or fault alarm devices. Import converter(PLC) can control eight different product ratio.
Equipment model | HY-803 |
Source | Total power 22KW,4*220V/60HZ |
Suit foam type | Phenol aldehyde flower mud |
Injection flow | 1500g-2500g/S note: the size of flow can be set |
Injection pressure | 0.1MPA-3.99MPA |
Mix ratio | 100-15;100-30 |
viscosity(22 ) | Resin 500-3000MPAS |
viscosity(22°C) | Acidic curing agent 500-2000MPAS |
Feeding time | 0.01-99.9/S(accuracy 0.01S) |
Injection materials Precision | 0.1/100 |
Injection procedure number | PLC program manual injection |
Pneumatic work pressure | 0.6-0.8MPa |
Floor space | Wide 5M height 3.2M |
Overall weight | 1.8t |
Mixed casting head | Use ball value type |
PLC Programming Computer Chinese show(Taiwan Delta) | can control 100 different mould (product) pouring quantity at the same time, can automatic cleaning machine |
Heating system | Can automatic control temperature |
3.5KW water cycle vacuum pump and storage tank | A set |
10P refrigeration unit | A set |
Foaming mould
Using automatic electrical heating temperature control system, make floral foam heated evenly, temperature is consistent. And make floral foam forming rules, uniform density, hardly any waste generated.

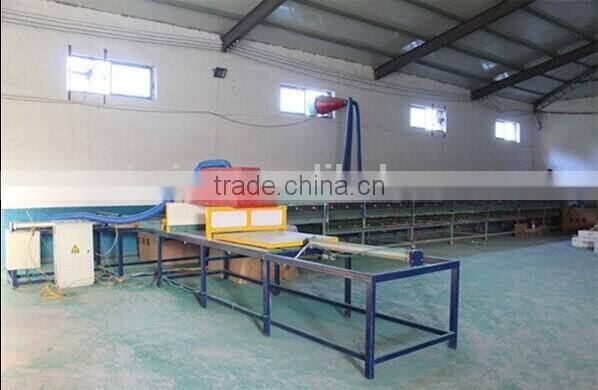

Cutting machine
Computer control, simple operation. Equipped with suction machine, greatly reduces the floral foam powder pollution, make working environment more healthy.
Cutting machine and Printing machine
Resin viscosity testing equipment
Finished product
We sincerely hope that we could establish a long friendly business relationship with more companies home and abroad,comment please,we are always on service for you!
