phenolic floral foam machine
Product description:
standard configuration floral foam machine include:
1 Resin synthesis equipment 2. Foaming Equipment 3.Cutting Machine

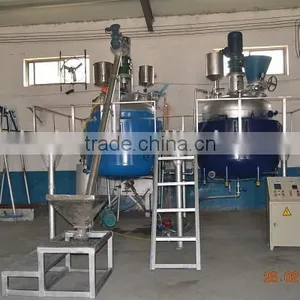

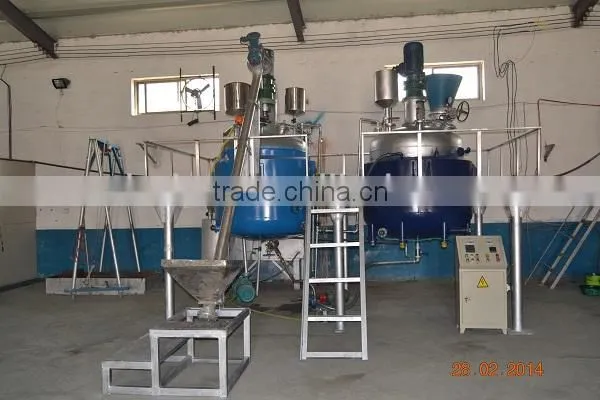

1.Resin synthesis equipment
Put all the raw material into the Resin synthesis equipment(reactor),using the control cabinet to control the temperature and input the material.
size | 2*2*3m |
weight | 1t |
Screw feeder | 1.5kw |
Resin pump | 1.5kw |
Equipment voltage | 380v |
material | Inside 6mm 304stainless steel ,outside 6mm carbon steel |
volume | 1000L,usually put 800L |

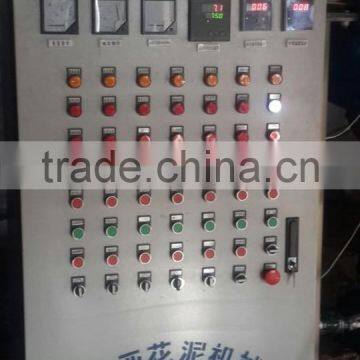

Control cabinet size | 165*55*140cm,weight:55kg |

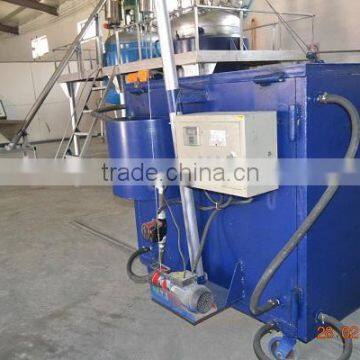

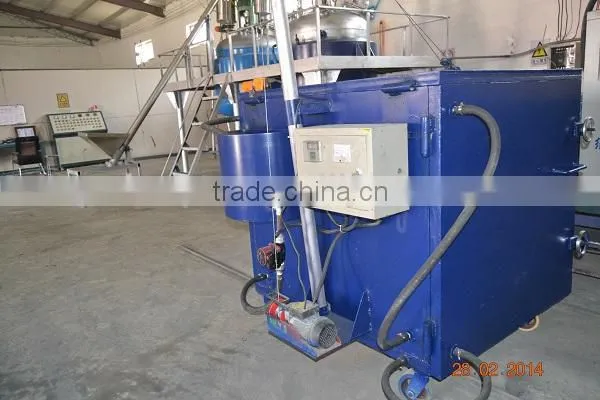

- 2. Foaming Equipment:
Foam equipment size | 380*220*220cm |
weight | 2t |
Tank A electrical machine | 4.0kw |
volume | 800L |
gear pump | 5.5kw |
- 3. Mould
4.Cutting Machine:
Vertical cutting machine
size | 180*285*250cm |
weight | 800kg |
electric machine | 2.5kw |
CNC horizontal pushing printing machine:500*330*250cm,2.3tons
PLC horizontal pushing printing machine:390*190*125cm,weight:700kg.
Production flow chart:
Dissolve phenol
↓
Input phenol into reactor with vacuum pump
↓
Input other material
↓
Resin synthesis
↓
Input resin into storage tank
↓
Input other additives
↓
Mixing and control temperature
↓
Absorb the material into tank A of foaming machine
↓
Add other materials into tank B,then input the materials of tank A and B into mould
↓
Shaping and volatilization of seml-finished product
↓
Cut the surface in vertical cutting machine
↓
Cut into slices in CNC horizontal cutting machine
↓
PLC horizontal pushing printing machine
↓
Processing of PH(controllable)
↓
Packaging
