phenolic resin foam production machinery
- 1 Acre / Acres per Month
- tianjin
- T/T Credit Card
You May Like
-
Auto equipment production line for wet floral foam use in China supplier
-
Automatic wet floral foam machine and technology -the whole production line
-
Specially manufacture Automatic wet floral foam machineS
-
Wet Floral Foam machine, Phenol-Formaldehyde Resin material
-
fully auto machines & wet floral foam machines with best quality
-
Hot sale phenolic resin floral foam production line,wet floral foam machines
Product Details
| Condition | New | Automatic Grade | Semi-Automatic | |
| Type | Other, Tank Reactor, phenolic resin foam production machinery | Place of Origin | Hebei, China | |
| Brand Name | HUIYA | Model Number | HUIYA-002 | |
| Voltage | 220V | Power(W) | CUSTOMIZED | |
| Dimension(L*W*H) | CUSTOMIZED | Weight | CUSTOMIZED | |
| Certification | ISO | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
phenolic resin foam production machinery
Product description:
standard configuration floral foam machine include:
1 Resin synthesis equipment 2. Foaming Equipment 3.Cutting Machine

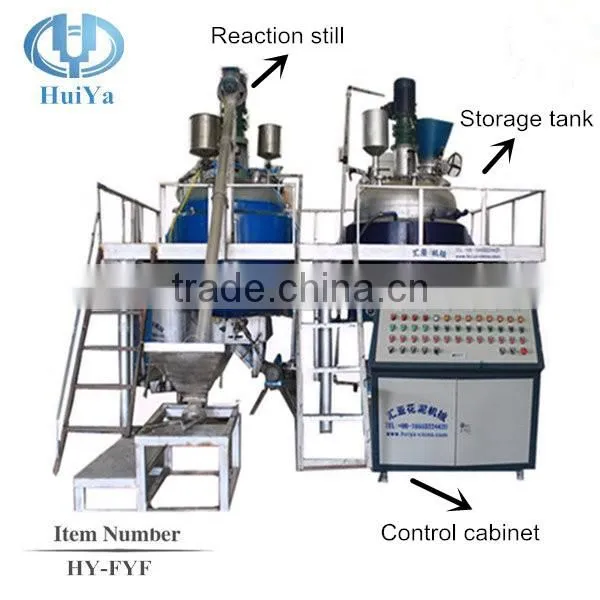

1.Resin synthesis equipment
Put all the raw material into the Resin synthesis equipment(reactor),using the control cabinet to control the temperature and input the material.
size | 2*2*3m |
weight | 1t |
Screw feeder | 1.5kw |
Resin pump | 1.5kw |
Equipment voltage | 380v |
material | Inside 6mm 304stainless steel ,outside 6mm carbon steel |
volume | 1000L,usually put 800L |
Control cabinet size | 165*55*140cm,weight:55kg |
- 2. Foaming Equipment:
Foam equipment size | 380*220*220cm |
weight | 2t |
Tank A electrical machine | 4.0kw |
volume | 800L |
gear pump | 5.5kw |
- 3. Mould
4.Cutting Machine:
Vertical cutting machine
size | 180*285*250cm |
weight | 800kg |
electric machine | 2.5kw |
CNC horizontal pushing printing machine:500*330*250cm,2.3tons
PLC horizontal pushing printing machine:390*190*125cm,weight:700kg.
Production flow chart:
Dissolve phenol
↓
Input phenol into reactor with vacuum pump
↓
Input other material
↓
Resin synthesis
↓
Input resin into storage tank
↓
Input other additives
↓
Mixing and control temperature
↓
Absorb the material into tank A of foaming machine
↓
Add other materials into tank B,then input the materials of tank A and B into mould
↓
Shaping and volatilization of seml-finished product
↓
Cut the surface in vertical cutting machine
↓
Cut into slices in CNC horizontal cutting machine
↓
PLC horizontal pushing printing machine
↓
Processing of PH(controllable)
↓
Packaging
