HEBEI HUIYA Floral Foam Special Equipment

HEBEI HUIYA Floral Foam Special Equipment photo-1
HEBEI HUIYA Floral Foam Special Equipment photo-2
HEBEI HUIYA Floral Foam Special Equipment photo-3
HEBEI HUIYA Floral Foam Special Equipment photo-4
HEBEI HUIYA Floral Foam Special Equipment photo-5
US$ 100,000 - 125,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Foam Net
Place of Origin:
Hebei, China
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Foam Net
Place of Origin Hebei, China
Brand Name HUIYA
Model Number HY-P1
Voltage 380V
Power(W) 150KW
Dimension(L*W*H) 4500*1840*4100
Weight 5700KG
Certification CE, UL
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

       1000L stainless steel reactor



                 Comprehensive range of services for you!



We are specializing in exporting floral foam, floral foam machine, technology and chemical materials for making floral foam.

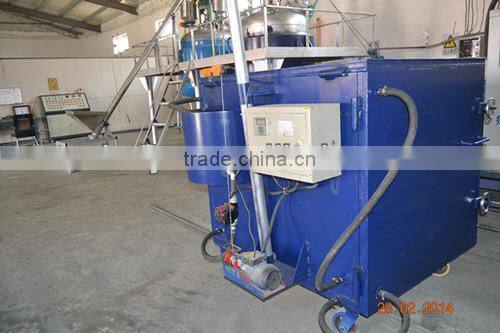

1.Electrical heating reaction vessel



Product features:

1. Principle: the principle of electrical heating the reaction kettle is insert electric heater in the jacketed heat conduction oil,

using thermal oil as medium is introduced into the wall of a kettle, make the material inside the kettle is heated response.

Reaction pot consists of pot, stainless steel tube body, jacket, mixer, shaft sealing device and bearing, shaft sealing device

is divided into packing seal and mechanical seal.

HEBEI HUIYA Floral Foam Special Equipment



2. HY-803 Two Component Floral Foaming Machine



Product Feature:



1.Main unit: Material injection by a precision needle valve, which is taper sealed, never worn, and never clogged;

the mixing head produces complete material stirring; precise metering (by a precision metering pump);



single button operation for convenient operation; switching to a different density or color at any time.



2.Control : Microcomputer PLC control; TIAN electrical components exclusively imported to achieve the goal for

automatic, accurate and reliable control can be imputed with more than 500 working position data; pressure,temperature

and rotation rate digital tracking and display and automatic control; abnormity or fault alarm devices. Import converter

(PLC) can control eight different product ratio.

HEBEI HUIYA Floral Foam Special Equipment




3. Foaming mould



Product Feature:Using automatic electrical heating temperature control system, make floral foam heated evenly,

temperature is consistent. And make floral foam forming rules, uniform density, hardly any waste generated.

HEBEI HUIYA Floral Foam Special Equipment



4.Cutting machine

 Product features: computer control, simple operation. Equipped with suction machine, greatly reduces the floral foam powder pollution, make working environment more healthy.

HEBEI HUIYA Floral Foam Special Equipment





5.Cutting machine and Printing machine

HEBEI HUIYA Floral Foam Special Equipment







6.Resin viscosity testing equipment

Company Information



Hebei Huiya Floral Foam Special Equipment Co. Ltd (Hebei Huiya) was founded in May of 2015, which is the largest production base for fresh floral foam and its equipment in north of Yangtze River in China.

  We introduced the advanced production technology in UK, with the technology and equipment updating,we can get the resin free dewatering and automatic continuous foaming.Meanwhie.we solve the pollution problem,we Accumulated a wealth of experience with the development.

  Our company has developed into a set of independent research and development, production, sales, technical training, as one of the one-stop service company.Our mainly products include Agricultural soilless cultivation mechanism,Fresh cut flower foam,Water purification special flower mud,flower foam mold and so on .

  We sincerely wish that we could establish a long and friendly business relationship with more companies home and abroad.

FAQ



1.Can I get free samples?
YES. We would like to send several samples for your reference if you could afford freight.
2.What surface handing could you support ?
We can provide help buyer print logo on the foam and carton.
3.Do you accept customized order ?
YES. We can arrange opening the mould according to customers’ requirement.
4. What is the normal lead time ?
(1). For stock products, we will send goods to you within 12-24hours after we receive your payment.
(2). For surface handing products, the delivery time is within 7-10 work days after we receive your payment.
(3). For products we never manufactured , we could open the mould if needed.
5. What is your selection of shipping method ?
(1). For small trial order, international express, just as UPS, FedEx, TNT, EMS, DHL is suitable.
(2). For large order, we can arrange shipment by sea or air according to your requirement.
6.How do you control the quality ?
We do 3 times leakage test before packing.
7.If any defective floral foam, how do you deal with ?
We have 1:1 replacement for the defective floral foam.
8.Which trade terms do you prefer?
We can accept FOB, C&F, CIF,etc.
9.What's your Payment terms?
T /T, Western Union, etc.
