Hebei huiya floral foam machine equipment,Vacuum pump for loading material

We specialised in exporting floral foam, floral foam machine and technology.

Phenolic resin for flower foam synthesis technology is introduced:

Product Purpose: Wet Floral foam, Dry Floral Foam.

Product Feature:

1.Our company adopts solid paraformaldehyde synthesis technology, solving the problems of wastewater discharge,

 environment protection, etc.

2.The automatic temperature control system combines electric heating and physical reaction, which improve the

production efficiency, reduces the resin production cost. Synthetic resin equipment combined with automatic foaming

machine let the stability of the foam(density, strength, water absorption, water retention, PH) come true, and let the foam open porosity rate can reach

more than 95%. New technology of the production cost was reduced by 15% than old technology.

3.The whole production line includes resin synthesis equipment, floral foam automachine, foaming mould , vertical

cutting machine and printing machine, etc.

(1) Electrical heating reaction vessel

Product Purpose:  It is used in petroleum, chemical, rubber, pesticide, dye, medicine, food, scientific research

 and other industries, used to complete the sulfide, nitration, hydrogenation, alkylation, polymerization, condensation

process, as well as many organic dyes and intermediates, such as process equipment.

1.Product features:

 Principle: the principle of electrical heating reaction kettle is to insert electric heater in the jacketed heat

conductionoil, using conduction oil as heating medium of a kettle, make the material inside the kettle react. Reaction

pot consists of pot, stainless steel tube body, jacket, mixer, shaft sealing device and bearing. The shaft sealing device

is divided into packing seal and mechanical seal.

2. Characteristics:

1) can customize anchor type wheel, impeller, pan, pusher, or box type mixing form, as well as the mixing of

different combinations.

2) can customize various kinds of heat exchanger, including jacket, coil, electric heating, steam heating, heat

 conduction oil heating.

 3) optional explosionproof performance, sealing performance, positive pressure and negative pressure in various

configurations.

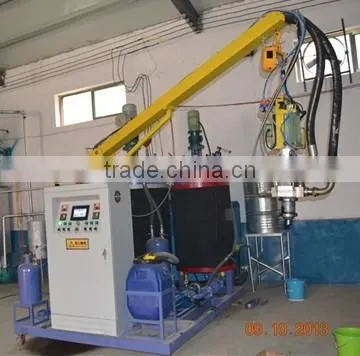

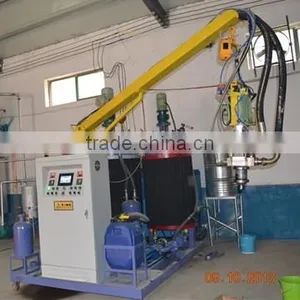

(2)Product Name: HY-803 Two Component Floral Foaming Machine

Product Purpose: Floral foam, foam mattresses, sofa cushions etc.

Product Feature:

1.Main unit: Material injection by a precision needle valve, which is taper sealed, never worn, and never clogged;

the mixing head produces complete material stirring; precise metering (by a precision metering pump); single

button operation for convenient operation; switching to a different density or color at any time.

2.Control : Microcomputer PLC control; TIAN electrical components exclusively imported to achieve the goal for

 automatic, accurate and reliable control can be imputed with more than 500 working position data; pressure,

temperature and rotation rate digital tracking and display and automatic control; abnormity or fault alarm

devices. Import converter (PLC) can control eight different product ratio.

Main Technical Parameters:

(3)Foaming mould

Product Purpose: Floral foam etc.

Product Feature:

Using automatic electrical heating temperature control system, make floral foam heated evenly, temperature is

 consistent. And make floral foam forming rules, uniform density, hardly any waste generated.

(4)Cutting machine

 Product features: computer control, simple operation. Equipped with suction machine, greatly reduces the

 floral foam powder pollution, make working environment more healthy.

YES. We would like to send several samples for your reference if you could afford freight.

2.What surface handing could you support ?

We can provide help buyer print logo on the foam and carton.

3.Do you accept customized order ?

YES. We can arrange opening the mould according to customers’ requirement.

4. What is the normal lead time ?

(1). For stock products, we will send goods to you within 12-24hours after we receive your payment.

(2). For surface handing products, the delivery time is within 7-10 work days after we receive your payment.

(3). For products we never manufactured , we could open the mould if needed.

5. What is your selection of shipping method ?

(1). For small trial order, international express, just as UPS, FedEx, TNT, EMS, DHL is suitable.

(2). For large order, we can arrange shipment by sea or air according to your requirement.

6.How do you control the quality ?

We do 3 times leakage test before packing.

7.If any defective floral foam, how do you deal with ?

We have 1:1 replacement for the defective floral foam.

8.Which trade terms do you prefer?

We can accept FOB, C&F, CIF,etc.

9.What's your Payment terms?

T /T, Western Union, etc.
