Specifications
1.Floral foam machines &production line2.stable quality
3.environment protection
petitive price
We are manufacturer of floral foam and floral foam machine

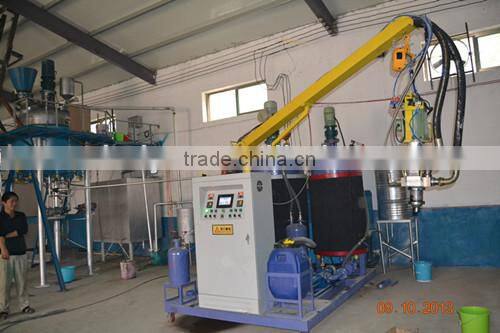

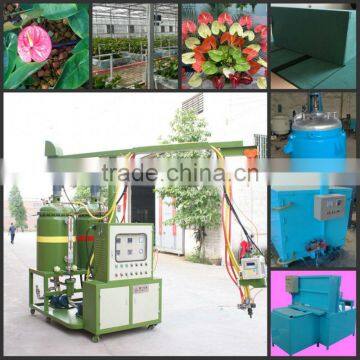

Two Component Floral Foaming Machine
Product Feature:
1. Main unit: Material injection by a precision needle valve, which is taper sealed, never worn, and never clogged; the mixing head
produces complete material stirring; precise metering (by a precision metering pump); single button operation for convenient
operation; switching to a different density or color at any time.
2. Control : Microcomputer PLC control; TIAN electrical components exclusively imported to achieve the goal for automatic,
accurate and reliable control can be imputed with more than 500 working position data; pressure, temperature and rotation rate
digital tracking and display and automatic control; abnormity or fault alarm devices. Import converter (PLC) can control eight
different product ratio.
Equipment model | HY-806 |
Source | Total power 22KW,4*220V/60HZ |
Suit foam type | Phenol aldehyde flower mud |
Injection flow | 1500g-2500g/S note: the size of flow can be set |
Injection pressure | 0.1MPA-3.99MPA |
Mix ratio | 100-15;100-30 |
viscosity(22 ) | Resin 500-3000MPAS |
viscosity(22°C) | Acidic curing agent 500-2000MPAS |
Feeding time | 0.01-99.9/S(accuracy 0.01S) |
Injection materials Precision | 0.1/100 |
Injection procedure number | PLC program manual injection |
Pneumatic work pressure | 0.6-0.8MPa |
Floor space | Wide 5M height 3.2M |
Overall weight | 1.8t |
Mixed casting head | Use ball value type |
PLC Programming Computer Chinese show(Taiwan Delta) | can control 100 different mould (product) pouring quantity at the same time, can automatic cleaning machine |
Heating system | Can automatic control temperature |
3.5KW water cycle vacuum pump and storage tank | A set |
10P refrigeration unit | A set |
This machines is automatic foaming machine.Using solid Formaldehyde resins produced stainless steel electric heating reaction kettle.Free dehydration,no polluting emissions,more environmentally friendly.Adopt electric heating auto temperature mould machine.
For details ,welcome to your inquiry!
