Two Component Floral Foaming Machine
Product Feature:
1. Main unit: Material injection by a precision needle valve, which is taper sealed, never worn, and never clogged; the mixing head
produces complete material stirring; precise metering (by a precision metering pump); single button operation for convenient
operation; switching to a different density or color at any time.
2. Control : Microcomputer PLC control; TIAN electrical components exclusively imported to achieve the goal for automatic,
accurate and reliable control can be imputed with more than 500 working position data; pressure, temperature and rotation rate
digital tracking and display and automatic control; abnormity or fault alarm devices. Import converter (PLC) can control eight
different product ratio.
Item | NO. | Name | Unit | Quantity | Note | |
Resin | 1 | 1000L stainless steel reactor |
set |
1 | Material:304stainless steel,Motor power:5.5KW,hopper,variable frequency inverter,other parts see accessory | |
2 | 150L buffer tank | pcs | 1 | Material:carbon steel | ||
3 | 2BVA5111 vacuum pump | pcs | 1 | Power:5.5KW,Negative pressure:0.1MPA | ||
4 | KCB-1008 resin circulating pump | pcs | 1 | power:1.5KW | ||
5 | Ground control cabinet
|
set | 1 | all motors, partial electronic components, pneumatic valve when conducting Synthetic resin | ||
6 | Screw feeder |
pcs | 1 | Power:1.5KW,material:304stainless steel,including 200L 304 stainless steel stock bin, | ||
Foaming machine |
1 | HY-1008 automatic foaming machine
|
pcs | 1 | Controlled by PLC,self-heating,temperature control system,continuous foaming of 100 moulds,total power:28KW, | |
2 | Supporting tool kit
| set | 1 | spanners,seal rings,pneumatic and electronic components | ||
3 | Stir head | set | 1 | Material:Stainless Steel | ||
4 | Moulding machine | Set | 2 | 1.1cbm | ||
5 | Instruction book | pcs | 1 | Chinese and English | ||

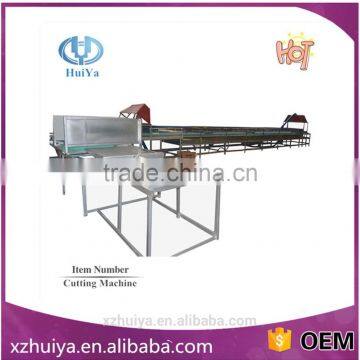

Cutting machine | 1 | HY-1008 vertical cutting machine
| pcs | 1 | Cutting size: 1.5 cubic meter and above, saw blade:3 pcs, | |
2 | HY-1008 numerical controlhorizontal cutting machine | pcs | 1 | Can cut four foams,saw blade:3 pcs, | ||
3 | HY-1008 air suction machine | pcs | 1 | Three-way suction,power:3KW | ||
4 | Hose link pipe | m | 20 | Material:PVC | ||
5 | PLC horizontal push printing machine | set | 1 | PLC control cabinet,excluding PH processing system | ||
6 | 7.5KW air compressor | set | 1 | Air compressor, 400L air storage tank, supporting pipes and others | ||
7 | Supporting Pneumatic components,Instruction book | |||||
This machines is automatic foaming machine.Using solid Formaldehyde resins produced stainless steel electric heating reaction kettle.Free dehydration,no polluting emissions,more environmentally friendly.Adopt electric heating auto temperature mould machine.
| 1.Can I get free samples? |
| YES. We would like to send several samples for your reference if you could afford freight. |
| 2.What surface handing could you support ? |
We can provide help buyer print logo on the foam and carton. |
| 3.Do you accept customized order ? |
| YES. We can arrange opening the mould according to customers’ requirement. |
| 4. What is the normal lead time ? |
| (1). For stock products, we will send goods to you within 12-24hours after we receive your payment. (2). For surface handing products, the delivery time is within 7-10 work days after we receive your payment. |
| 5. What is your selection of shipping method ? |
(1). For small trial order, international express, just as UPS, FedEx, TNT, EMS, DHL is suitable. (2). For large order, we can arrange shipment by sea or air according to your requirement. |
6.How do you control the quality ? |
We do 3 times leakage test before packing. |
| 7.If any defective floral foam, how do you deal with ? |
We have 1:1 replacement for the defective floral foam. |
8.Which trade terms do you prefer? |
We can accept FOB, C&F, CIF,etc. |
9.What's your Payment terms? |
| T /T, Western Union, etc. |
We work hard to satisfy customers' purposes.
For details ,welcome to your inquiry!
