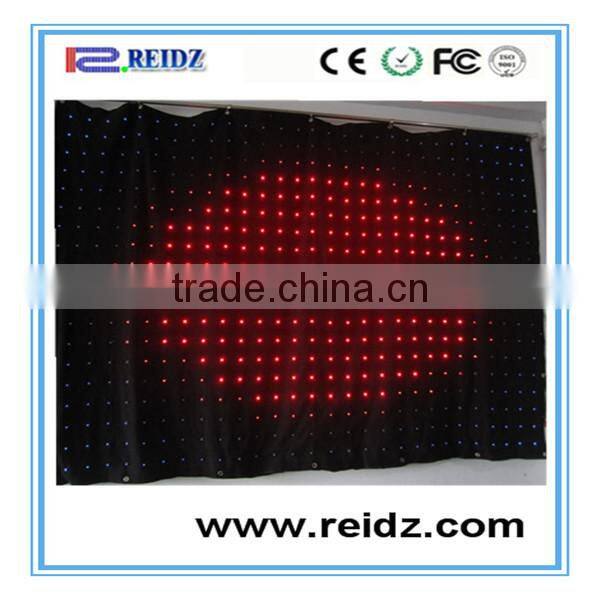

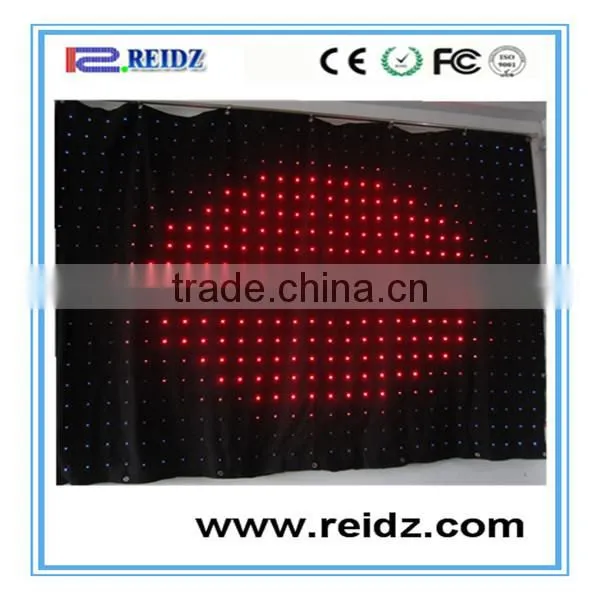

led video curtain plays full sexy movies
Professional manufacturer of led decorative product for bar, nightclub, disco, etc. stage lighting decoration in China for near 8 years.

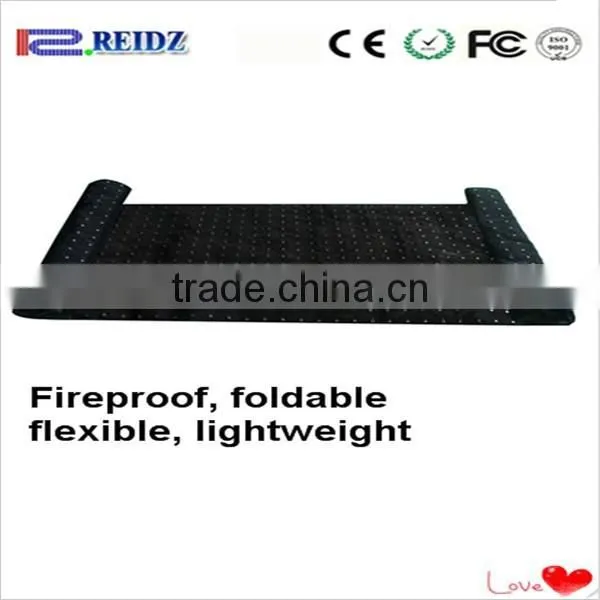

1). Soft, flexible, foldable, easy to transport and install, the material is cloth /fabric
2). Can be controlled by computer directly, or DMX controller, or SD card auto-run.
3). Can show/ display video, animation, graphics, text, words, images, flash files
4). Various pixel pitch available for customer's option, P40mm, P50mm, P100mm, P150mm, P200mm.
5). Can customize the size, make any size; it depends on your design and project.
6). Wide application, can be used for night club, disco, bar as ceiling and wall decoration,
or for concert, show as stage backdrop, or for commercial rental, for wedding, event decoration.
Advantages
| Model No | S-SPB-P40 | S-SPB-P50 | S-SPB-P85 | S-SPB-P100 | S-SPB-P185 | S-SPB-P200 |
| Pixle pitch | 40mm | 50mm | 85mm | 100mm | 185mm | 200mm |
| Pixel density per unit (pc) | 3750 | 2400 | 864 | 600 | 216 | 150 |
| Unit size(m) | 3*2 | 3*2 | 3*2 | 3*2 | 3*2 | 3*2 |
| Unit weight(kg) | 40 | 30 | 20 | 15 | 12 | 10 |
| Power consumption per unit(W) | 1500 | 960 | 330 | 240 | 90 | 60 |
| Pixel configuration | F5 super brightness led | |||||
| Brightness adjustment | 256 level | |||||
| Out of control point | <0.0002 | |||||
| Lifespan(H) | >50000hours | |||||
| Working temperature | Miner 10 to 40 degree | |||||
| Humidity | 10% to 90%RH | |||||
| Protection level | IP44 | |||||
| Working voltage | AC85~265V | |||||
| Cloth material | Flame retardant,heavy duty cloth | |||||
| Viewing angle | 120 degree | |||||
| Certificate | CE RoHS | |||||
| Warranty | 2 years | |||||
| Flexible | flexible led video curtain | |||||
| Control system | DMX/PC syn +SD card 3-pin XLR input/output connector,4pin data out put | |||||
| DVI | ||||||
| SD card | ||||||
| SD card + sound control | ||||||

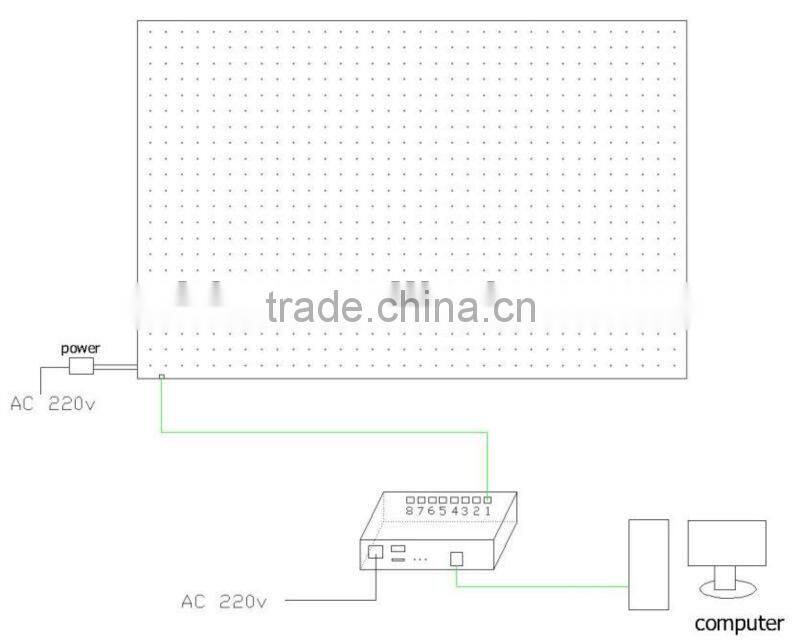

Led Curtain Screen Connection Diagram:

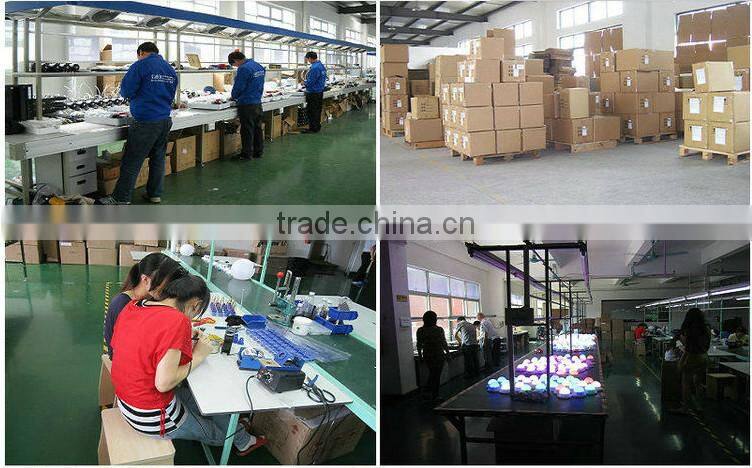

Aging Test in Factory

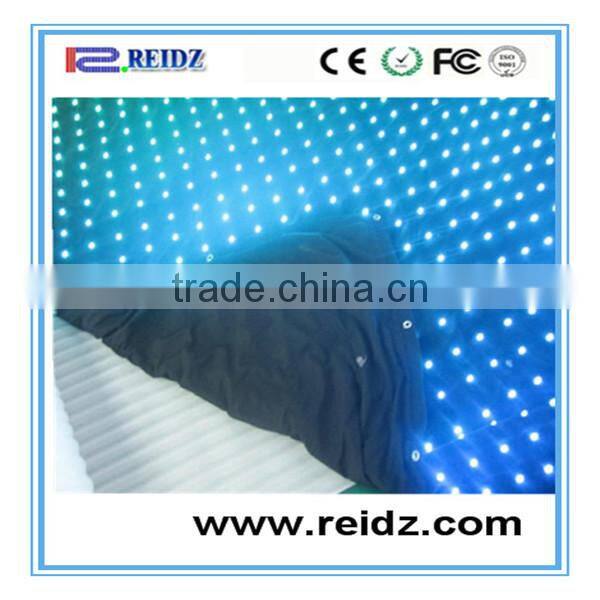

Back Side

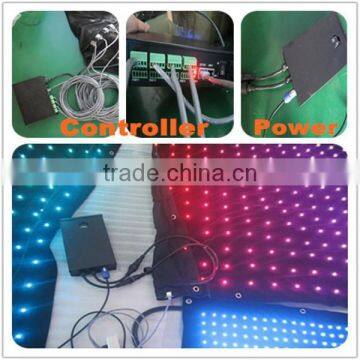

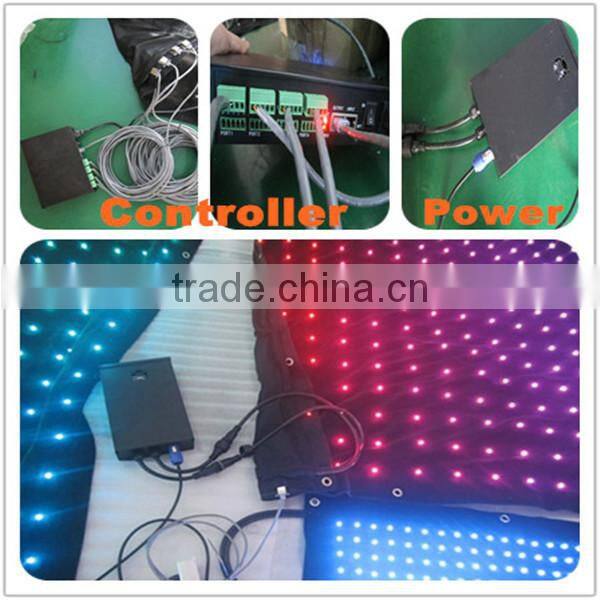

Installation Details

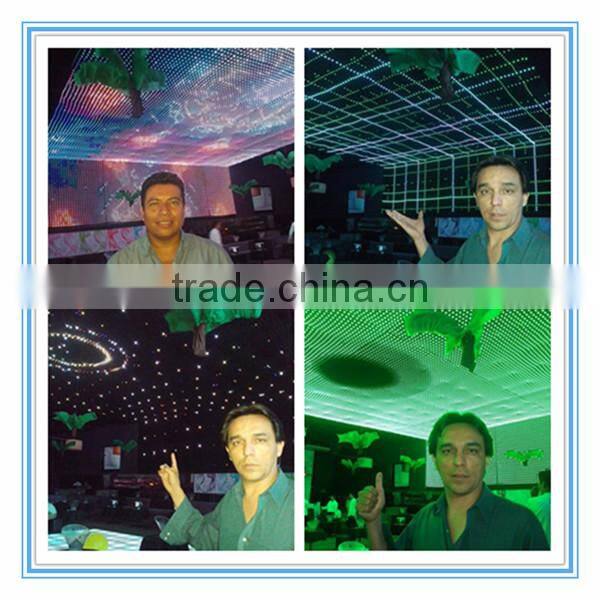

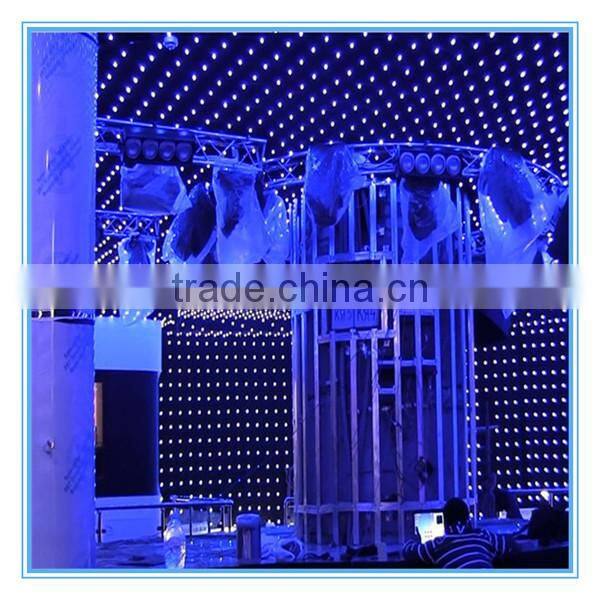

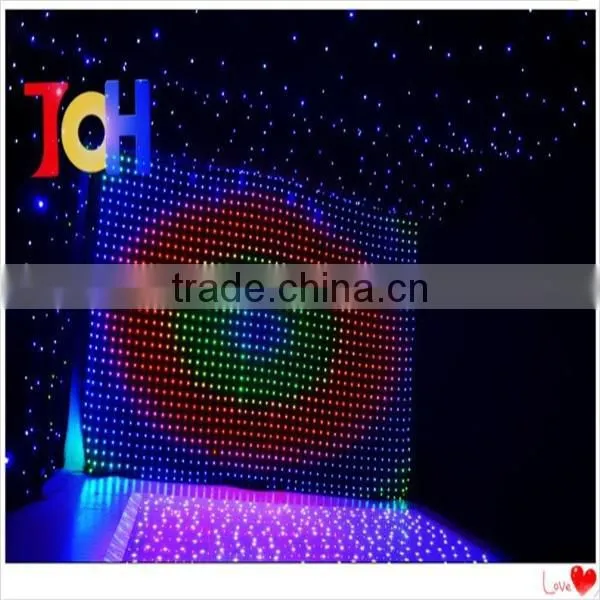

Indoor LED Curtain Display Cases

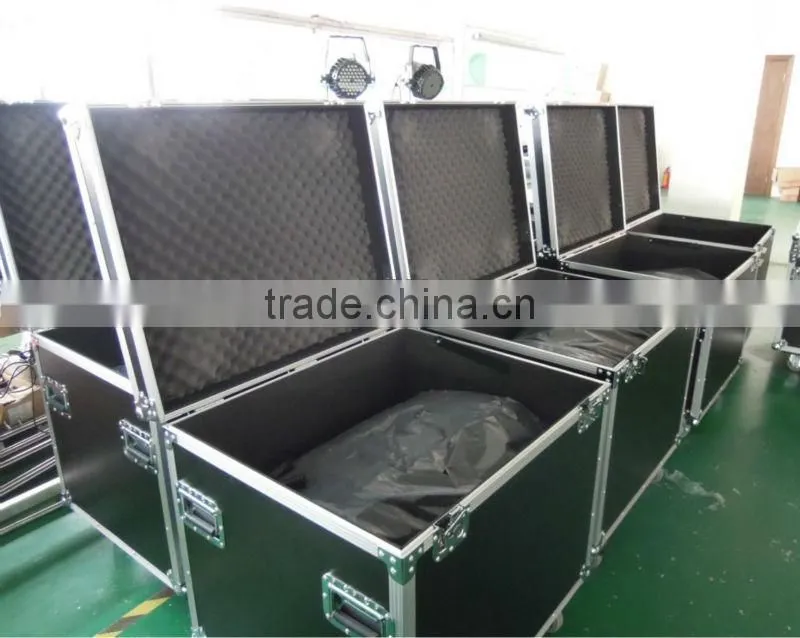

Packing

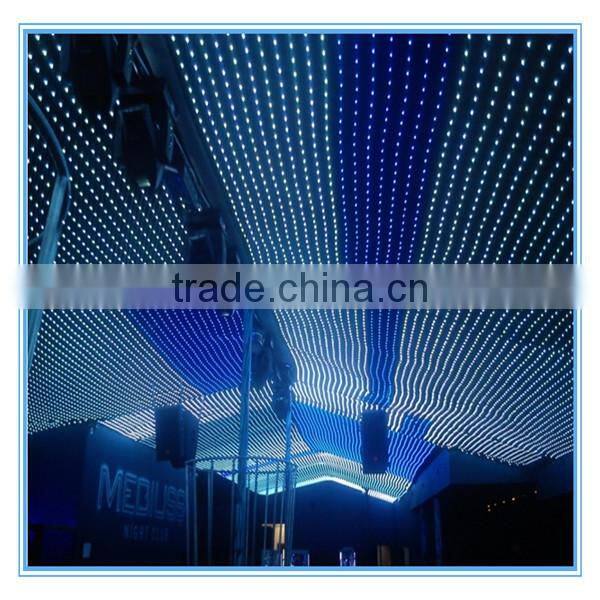

Indoor led display case
Ir led isplay c
Fault Handing
Q: If the lamp can not work when installed, how to deal with it?
A: There should be two conditions.
First, the hardware should be connected well;Second, the software should be set correct so that the led lamp can work. Then please check whether the hardware is connected and set well or not, and whether it is connected with the receiving card or not.
Q: If the glaring or other happens when connected with power, how to do ?
A: Check whether the control software program is correct or not.
