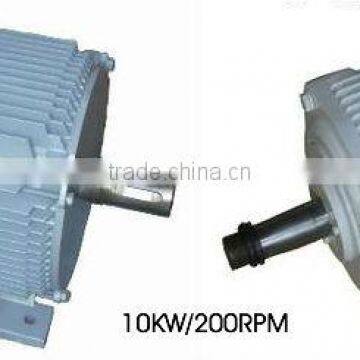

10KW PMGs for Horizontal Wind Turbines
Main Feature:
1. 10kw PM generator at different rated PRM for horizontal wind turbines.
2. The PM generators adopt optimum pole slot configuration, and shortened magnet circuit and the pitch of stator winding, material consumption reduced by 15%, so smaller and lighter.
3. The start torque is lowered by 40%, and the overall efficiency increased by 10%.
4. The speed of voltage buildup is lower with better performance in gentle breeze.
5. High grade cold rolling silicon sheet is used for the stator and rotor; the stator windings are wound with 180 grade combing paint coat series enamel-cover round copper wire, impregnated by the techniques of combing process of vacuum constant temperature and constant heat, higher insulation grade.
6. High quality 40SH,42SH,40UH rare-earth NdFeB(Neodymium Iron Boron) Magnet are used, and inlaid process for the fastness of magnet steel of rotor, strong adhesives splicing , epoxy resin encapsulating technology.
7. Adopt fully-enclosed NSK,NTN,SKF,C&U bearings and nickel plated 40Cr steel shaft with quenching and tempering treatment, and the outer frame is Zinc plated with anti-corrosion treatment.
Item # | Rated Power (kw) | Rated Speed (rpm) | Rated voltage (v) | Start Torque (Nm) | Efficiency (%) | Current (A) |
rw-pmg-10h-180 | 10 | 180 | DC240 | 11 | 88 | 41.6 |
rw-pmg-10h-200 | 10 | 200 | DC240 | 9.5 | 88 | 41.6 |
rw-pmg-10h-350 | 10 | 350 | DC240 | 6 | 88 | 41.6 |
rw-pmg-10h-375 | 10 | 375 | AC380 | 4.5 | 88 | 15.2 |
rw-pmg-10h-750 | 10 | 750 | DC240/AC380 | 2.2 | 88 | 41.6 |
Item # | rw-pmg-10h-200 |
Rated Power(KW): | 10 |
Rated Speed(RPM): | 200 |
Rated Torque(N*M): | 477.5 |
Rated Voltage(V): | DC240 |
Rated Current(A): | 41.67 |
Insulation Class: | F |
Efficiency(%) | 88 |
PMG Collocation: | Y Connection, 3-Phase, Three Wires, Alternator |
Service Life: | over 20 years |
Working Environment | -25Centigrade—40Centigrade |
Speed Range | 0-240 rpm |
Mechanical specifications | |
Mounting Means | Horizontal |
Weight(Kg) | 238 |
Start Torque(N*M) | 9.5 |
Material specifications | |
Shaft Material | 40Cr Steel with quenching and tempering Treatment |
Bearing | C&U or for your order |
Shell Material | Casting |
Winding Temperature Class | 150 Centigrade |
Permanent Magnet Material | Rare Earth NdFeB |
Permanent Magnet Material Temperature Class | 150 Centigrade |
Core | High Grade Cold Rolling Silicon Sheet 50WW470 |
Protection Grade | IP54 |
