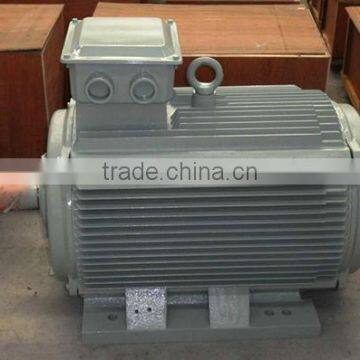

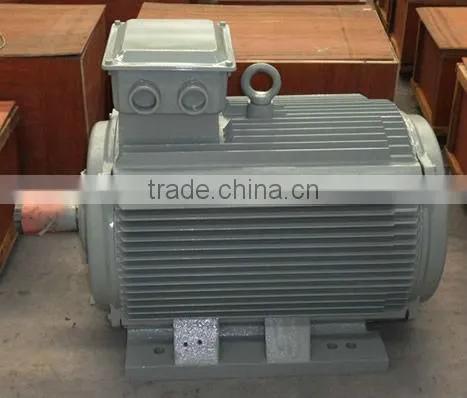

100KW PMGs for Wind Turbines
Main Feature:
• The permanent magnet generator comes with multiple poles, which can improve the frequency and
efficiency of inverting and rectifying, and save the cost of related equipments by a lot.
• With the ABB wind turbine test center, high quality of products can be guaranteed.
• Use the finite element analysis to optimize the design of the PM generator and reduce the start torque, and
then the wind turbine can start up at low speed and give more output.
• Low speed permanent magnet generators, direct-drive without reduction box, generating high voltage at
low speed.
• High efficient PM generators, optimal design, compact structure, no carbon brush, no spark, do not need
excitation, the protection class is IP44.
• No excitation control box, sample structure, high reliability.
• Small size and light weight, high energy density, suitable for special locations.
• Run effectively in the whole speed range and give high energy output.
• Use the embedded rare-earth magnet steel, particularly good for bumping, reduplicate startup, and
reversible operation.
• Adopt imported oil-contained high-speed bearings, maintenance free, high reliability, long life motor.
• The parameters like voltage, speed and power can be customized, the shape can be changed, and the spine shaft, biaxial stretch, front edge output can be adopted as well.
Item # | Power (kw) | Speed (rpm) | Voltage/ frequency | Rated Torque (Nm) | Current (A) | Efficiency (%) | Weight (kg) |
rw-wtg-h315-100k-250 | 100 | 250 | 230VAC,50Hz | 3820 | 250 | 93.3% | 1300 |
