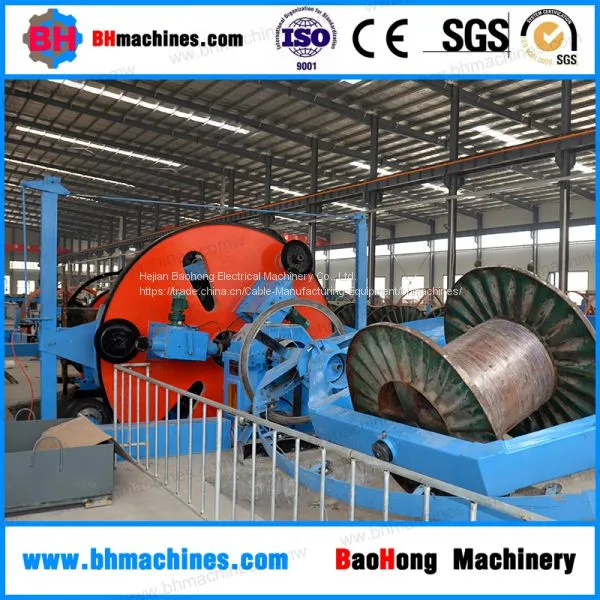

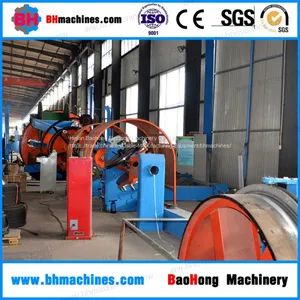

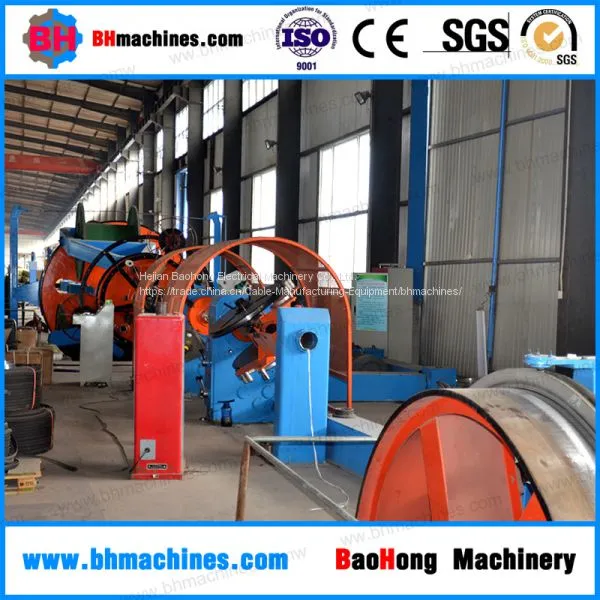

Help CenterCLY1250/1+9 Stranding and Laying up Usage Electric Wire Cable Making Machinery
Related Products
-
High Speed Double Layer Steel Reels and Bobbins for Cable and WireUS$ 75 - 90MOQ: 10 Pieces -
China 2017 Rigid Frame Wire Stranding Machine With Good PriceUS$ 100000 - 200000MOQ: 1 Set
-
Cable Machine - Rigid Type Stranding Machine for Power CableUS$ 100000 - 200000MOQ: 1 Set
-
JCJXKJ500 Cable Rigid Frame Stranding MachineUS$ 100000 - 200000MOQ: 1 Set
-
Rigid Frame Stranding MachineUS$ 100000 - 200000MOQ: 1 Set

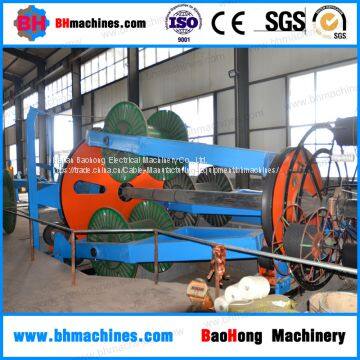

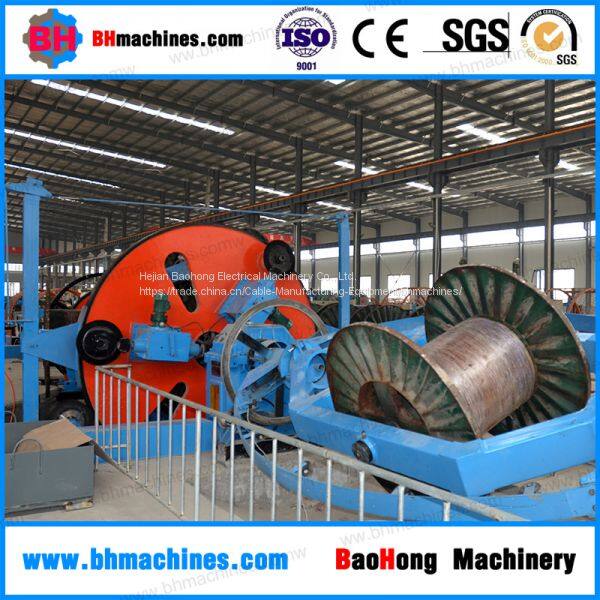

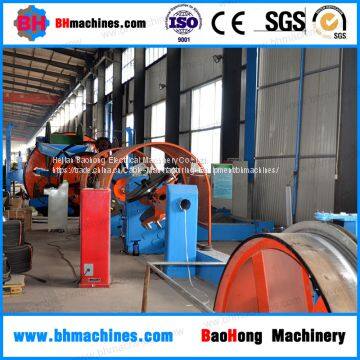

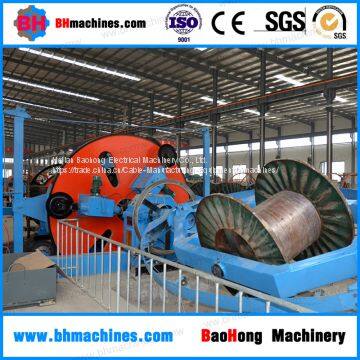

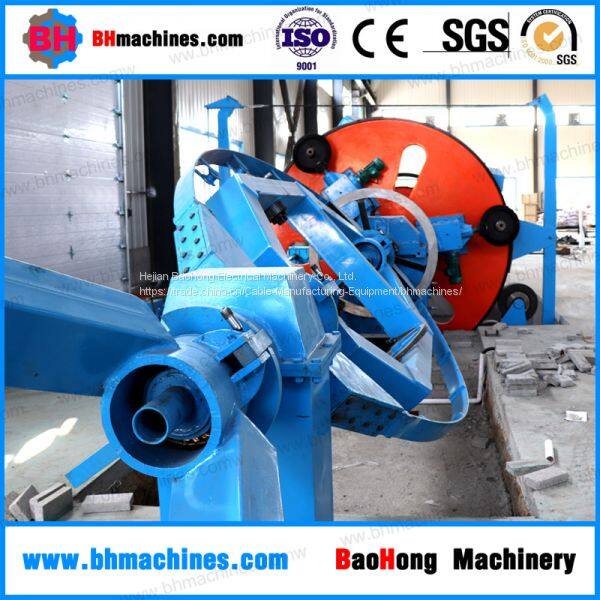

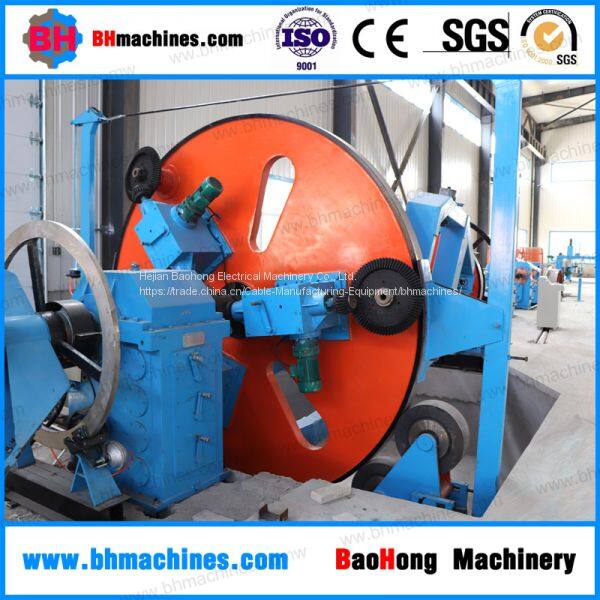

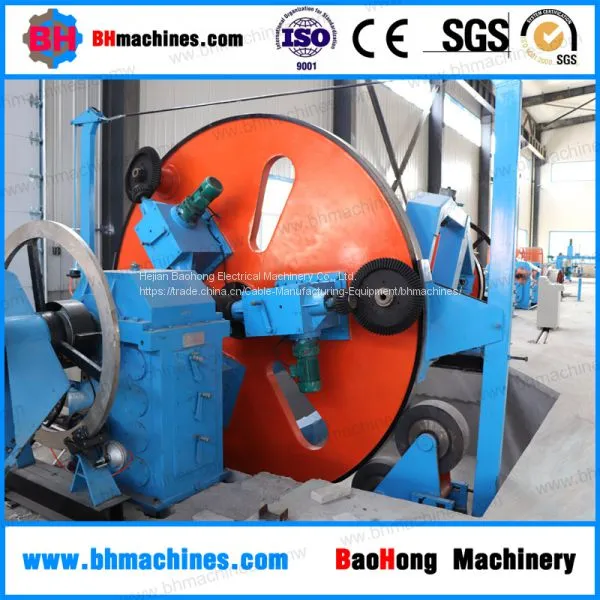

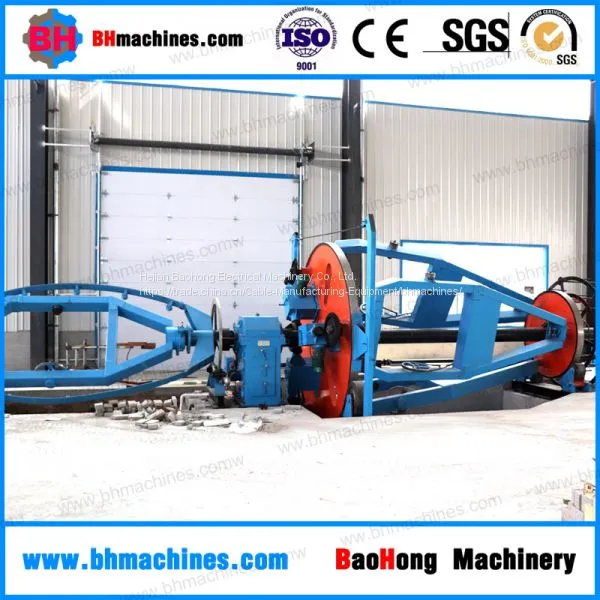

Cradle Type Copper Cable Making Machine
Laying up Machine
The Laying up Machine is used for cabling the multi core, rubber cables, plastic power cables, telephone cables, control cables, PVC cables, XLPE cables with or without steel armouring, mining cables, low and medium low voltage power cables.
Stranding the round cables, sector shaped cables with back twist or without back twist.

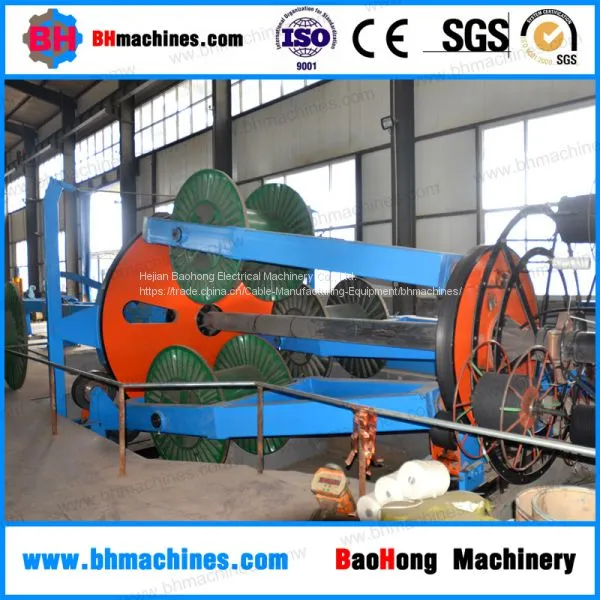

Cradle Laying-up Machine is designed with 3 / 1+3 / 1+1+3 / 3+3 Bobbin Cage.
Bobbin: 800 mm, 1000 mm, 1250 mm, 1600 mm DIN 46391 Standard / Modified.
Core laying up machine, main shaft is supported with roller bearings.
Highly productive laying up process with low energy consumption. 1+1+3 / 1600 mm Planetary Laying-up Machine Max. Rotation Speed ( rpm ) is 21 RPM.
Rigid and Planetary Types.
PLC Equipped.
We also customise this cradle type cabling machine in accordance with customers' requirements.
| Specification | CL1000/1+1+3 | CL1250/1+1+3 | CL1600/2+3 | CL2000/2+3 |
| CL1000/1+6 | CL1250/1+6 | |||
| Dia. of single wire(mm) | 5-20 | 5-25 | 10-35 | 15-45 |
| Diameter of cable forming | 80 | 100 | 120 | |
| Cable forming pitch(mm) | 4.0-20.7 | 4.1-12.1 | 3.4-8.1 | |
| Cable forming pitch(mm) | 255-6850 | 227-9250 | 338-6585 | 403-7650 |
| Speed of taping head(rpm) | 136-303 | |||
| Taping pitch(mm) | 15.5-272 | |||
| Armor speed (r/min) | 136-303 | |||
| Armor pitch (mm) | 15.5-272 | |||
| Diameter of wheel haul-off(mm) | 1800 | 2000 | 2500 | |
| Production speed(m/min) | 4.7-37 | 3.2-26.6 | ||
| Size of take-up reel(mm) | PN2000 | PN2500 | PN3150 | |
