Help CenterEngineering Geological Crawler Drilling Machine With Tower GXY-2TL
Related Products
-
Horizontal Drilling Machine for Engineering Geological Exploration GXY-1DUS$ 0.0001 - 0.0001MOQ: 1 Set -
Hot Sale Borehole Drilling Rig Equipment GXY-2LUS$ 0.0001 - 0.0001MOQ: 1 Set
-
Good Used Spindle Rotary Crawler Drilling Rig With High Torque GXY-2KLUS$ 0.0001 - 0.0001MOQ: 1 Set
-
Core Rotary Drilling Rig for Exploration GXY-2BUS$ 0.0001 - 0.0001MOQ: 1 Set
-
Good Quality Hydraulic Drilling Rig Anchor MD-100AUS$ 0.0001 - 0.0001MOQ: 1 Set
Quick Details
- Condition: New
- Type: crawler drilling rig
- Power Type: Electric
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: xitan
- Model Number: GXY-2TL
- Usage: engineering geology
- Voltage: 380V
- Power(W): 22kw
- Dimension(L*W*H):6500*2000*3320mm
- Weight: 5960kg
- Certification: ISO9001:2008
- Warranty: 6 Months
- After-sales Service Provided:Engineers available to service machinery overseas
- Model: GXY-2TL
- Hole Depth: 300-600m
- Rod diameter(mm): 42;50
- Lifting force: 72KN
- feeding force: 54KN
- Stroke of spindle: 600mm
- spindle diameter: 68mm
- Hoist max lifting capacity: 30KN
- Stroke: 465mm
- tower height: 7.7m
Description:

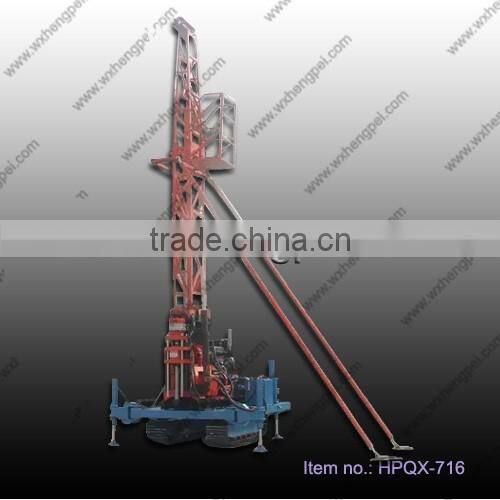

GXY-2TL crawler core drilling rig with tower is a probable multifunctional engineering exploration mahine.It is converted by our model GXY-2T.This crawler chasis group technology,equipped with complete sets of hydraulic system, full hydraulic control, instrument display,covenient and flexible operation,easily move,good mobility,time and labor saving.
Use hydraulic oil cylinder to adjust the required position,reduce the require of working area,greatly improve the working efficiency and meet the customer require.
This drilling rig tower is strong,steady,less pieces,easily move,total weight is light.Also the tower has up and down function,the structure is easy and reasonable,conveniently operation.The tower adjusted angle is big,
flexible operation,espesially fit for large angle inclined hole drilling.
Applications:
1.Industrial or civil construction,highway,railway,bridge group,damsite,water well,mineral prospecting etc
2.Foundation Pile Hole construction.

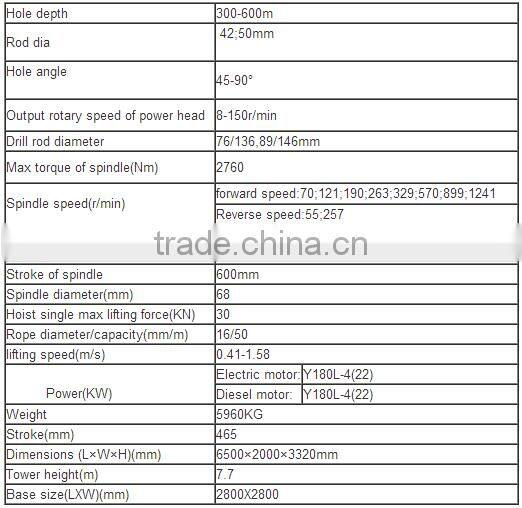

Specifications:
