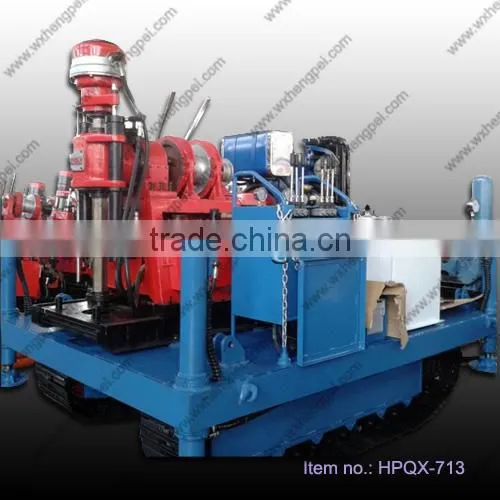

Good Used Spindle Rotary Crawler Drilling Rig With High Torque GXY-2KL

Quick Details

• Condition: New
• Type: Rotary Drilling Rig
• Power Type: Electric
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: xitan
• Model Number: GXY-2KL
• Usage: geology engineering
• Voltage: 380V
• Power(W): 15KW
• Dimension(L*W*H):1.856*0.78*1.46m
• Weight: 800kg
• Certification: ISO9001:2008
• Warranty: 6 Months
• After-sales Service Provided:Engineers available to service machinery overseas
• Model: GXY-2KL
• Hole Depth: 200m
• rod diameter: 42,50mm
• Hole angle: 0-90°
• Lifting force: 49KN
• feeding force: 36KN
• Stroke of spindle: 500mm
• Max.torque of spindle: 1800NM
• forward speed:56;97;153;211;264;458;722;996rpm
• lifting speed: 0.38;0.66;1.05;1.44m/s

Quick Detail:

1. Model GXY-2KL drilling rig is a kind of spindle rotatory drilling rig. This drilling rig has various chassis mode like skid mounted, crawler mounted.

2. It is suitable for engineering geological prospecting, solid mineral’s survey and exploration, foundation pile construction.

3. It can choose bits, such as diamond bits, hard alloy bits while drilling in accordance with different formation.

4. There are more speed grade (8 grades), reasonable speed range and high torque while low speed. Max. torque is up to 2760 N·m .

Description:

1. Model GXY-2KL drilling rig is a kind of spindle rotatory drilling rig. With powerful drilling capacity, It is suitable for engineering geological prospecting, solid mineral’s survey and exploration, foundation pile construction.

2. This drilling rig has various chassis mode like skid mounted, crawler mounted.

3. There are more speed grade (8 grades), reasonable speed range and high torque while low speed. Max. torque is up to 2760 N·m.

4. It can choose bits, such as diamond bits, hard alloy bits while drilling in accordance with different formation.

5. It is compact in construction, rational in overall arrangement, moderate in weight, convenient in assembling and wide in range of rotation speed.

Applications:

1.     Engineering geological prospecting.

2.     Solid mineral’s survey and exploration.

3.     Foundation pile construction

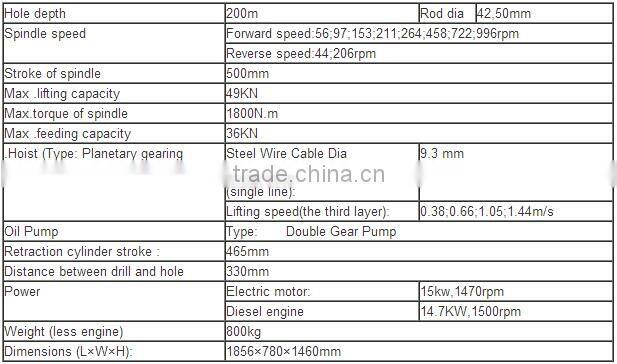

Specifications:
