High Performance Jet Grouting Drilling Rig for Anchoring XPL-20A

Quick Details

• Condition: New
• Type: crawler drilling rig
• Power Type: Electric
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: xitan
• Model Number: XPL-20A
• Usage: geology engineering
• Voltage: 380V
• Power(W): 22+7.5+1.5
• Dimension(L*W*H): 3.28*1.85*1.91m
• Weight: 3900kg
• Certification: ISO9001:2008
• Warranty: 6 Months
• After-sales Service Provided:Engineers available to service machinery overseas
• Model: XPL-20A
• Hole Depth: 30-50m
• Hole diameter: 90-185mm
• Hole angle: 0-90°
• Lifting force: 60KN
• feeding force: 30KN
• Output rotary speed of power head: 0-20
• Lifting speed: 0-0.7
• stroke of power head: 1800mm
• Output torque of power head: 3600NM

Quick Detail:

 1.This jet grout drill equipment is applied to soft ground stabilization, seepage control of basement of high-rise buildings, renovation of big river and levee, reinforcement of railway, highway and pier etc.

2. With drilling depth 30-50m, this XPL-20A jet grout drill machine can ensure continuous dynamic property and static property under high pressure working conditions.

3. To achieve the requirements of market, the drilling tools are in complete set, such as single, double, triple, directional jet grouting, swing jet grouting drill.

4. The high pressure drilling rig is not only for jet grouting, but also for anchoring.

Description:

1. XPL-20A is the crawler drilling rig. Its drilling depth is 30-50m and it is applicable for soft ground stabilization, seepage control of basement of high-rise buildings, renovation of big river and levee, reinforcement of railway, highway and pier, etc.

2. The drilling rig can apply singe pipe, duplex pipe, triple pipe tools and so on. Optional pendulum jetting device can be added to achieve the pendulum jet-grouting function.

3. The 20A high pressure drill machinery is convenient to operate. Because it adopts full hydraulic technology and has breakthrough in key technology, such as adding stepless speed regulation to jet grouting drilling and anchor drilling.

4. The high pressure drilling rig is not only for jet grouting, but also for anchoring.

Applications:

1.For jet-grouting and anchoring

2.Soft ground stabilization, seepage control of basement of high-rise buildings, renovation of big river and levee, reinforcement of railway, highway and pier etc.

3.Singe pipe, duplex pipe, triple pipe

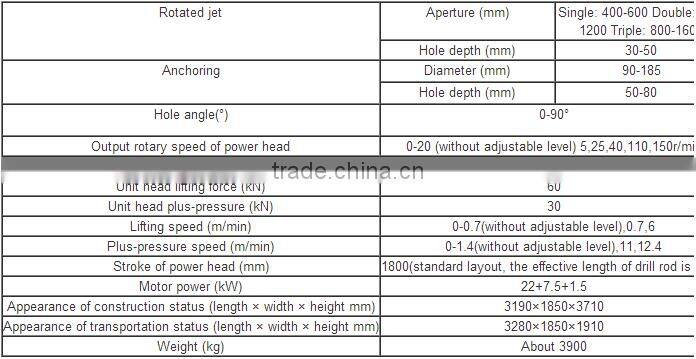

Specifications:
