Hydraulic Power Head Jet Grouting Drilling Rig With High Tower XP-30A

Quick Details

• Condition: New
• Type: jet-grouting
• Power Type: Electric
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: xitan
• Model Number: XP-30A
• Usage: geology engineering
• Voltage: 380V
• Power(W): 18+4+1.5
• Dimension(L*W*H): 6.41*2.25*2.95m
• Weight: 8500kg
• Certification: ISO9001:2008
• Warranty: 6 Months
• After-sales Service Provided:Engineers available to service machinery overseas
• Model: XP-30A
• Hole Depth: 50m
• Hole angle: 0-90°
• Lifting force: 60KN
• feeding force: 30KN
• lifting speed: 1.6-2.6m/min
• feeding speed: 3.2-5.5m/min
• Stroke of power head: 3300mm
• Output rotary speed of power head:10,12,22,40,80,140r/min
• Output torque of power head: 3000N.M

Quick Detail:

1. XP-30A drilling rig is one kind of full hydraulic power head drilling rig.

2. We also add stepless speed regulation module when the anchoring is drilling, which makes the operation more convenient.

3. With good adaptability, this jet grouting drilling rig can be configured with different modules and drilling tools, so as to solve various jet grouting processes.

4. Equipped with the main, vice winch and electrical control which can reduce labor force and enhance production efficiency.

Description:

1.  XP-30A drilling rig can accomplish drilling hole and jet grouting process in once time when operating in some certain soft layer.

2.  During the jet grouting lifting, the depth of the rotary jet shall not exceed the height of the assistant tower (15m). There is no need to dismantle the drill rod.

3. Besides jet grouting process, this jet grouting drilling rig is available for the construction of anchoring technology.

4.  With good adaptability, this jet grouting drilling rig can be configured with different modules and drilling tools, so as to solve various jet grouting processes.

5. The drill rigs adopt double winches and electrical control which can reduce labor force and enhance production efficiency.

6. The shifting and turning of the drill rig, speed change of power head and drill lifting are all adopted hydraulic control, featuring in flexible operation, saving time and labor cost.

Applications:

1. For jet-grouting and anchoring

2. Soft ground stabilization, seepage control of basement of high-rise buildings, renovation of big river and levee, reinforcement of railway, highway and pier, etc.

3. Singe pipe, duplex pipe, triple pipe

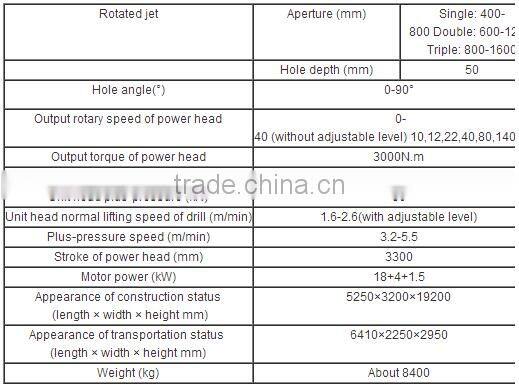

Specifications:
