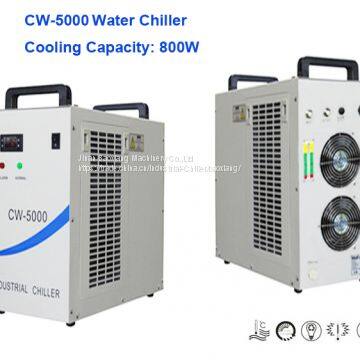

CW5000 Chiller

CW5000 Chiller photo-1
US$ 200 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
BAODIAN
Place of Origin:
China
Model Number:
CW5000
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
3 days
Brand Name BAODIAN
Place of Origin China
Model Number CW5000
Type Air-Cooled
Certification CE, ROHS, UL
After-sales Service Provided Engineers available to service machinery overseas
Warranty 2years
Weight 31Kgs
Dimension(L*W*H) 72 X 44 X 57 cm (L X W X H)
Voltage 1PH/220V/110V/50Hz/60Hz
Condition New
Cooling Capability(kw) 1.49KW
Parameters

Introduction of CW 5000 Laser Chiller

CW 5000 laser chiller adopts the new imported famous brand compressor and large flow and high lift pump, safety and environmental protection, energy saving and durable.

Spare parts: Most parts use the "Baodian" original products, various model configurations, stable performance, long service life.



Laser Chiller Applications

One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch to appropriate operating temperature.

CW-5000AG laser chiller: applied to cool a single 100W CO2 laser tube ;

CW-5000AI laser chiller: applied to cool a single 5W-10W solid-state laser ;

CW-5000AH laser chiller: applied to cool a single 5KW spindle or welding equipment.



Laser Chiller CW 5000 Specification

Model

CW-5000AG

CW-5000BG

CW-5000DG

CW-5000AI

CW-5000BI

CW-5000DI

Voltage

220V

220V

110V

220V

220V

110V

Frequency

50Hz

60Hz

60Hz

50Hz

60Hz

60Hz

Current

1.4~2.1A

3.5~5.6A

1.4~2.1A

3.5~5.6A

Compressor power

0.52KW

0.5KW

0.68KW

0.52KW

0.5KW

0.68KW

Refrigeration capacity

1.49KW

1.46KW

1.52KW

1.49KW

1.46KW

1.52KW

Refrigerant

R-22/R-134a

Refrigerant charge

360g

380g

350g

360g

380g

350g

Precision

±0.3

Reducer

Capillary

Protection

Overcurrent   protection for compressor, flow alarm, over temperature alarm

Pump power

28.8W

0.1KW

Tank capacity

9L

Inlet and outlet

External   Φ10mm Tower shaped joint

Diameter Φ10mm   speedy connector

Max. lift

8M

25M

Max. flow

10 L/min

16 L/min

N.W

28 Kgs

G.W

31Kgs

Dimension

56 X 28X 47 cm (L X   W X H)

Package dimension

72 X 44 X 57 cm (L   X W X H)

Note: other electric sources can be customized; heating and higher temperature control precision functions are optional .



Laser Chiller Packing

We use strong carton as the package of laser chiller. If the user have the request to use wooden case, we can make it.
