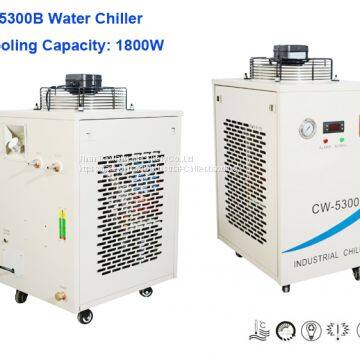

Introduction of CW 5300 B Chiller For Sale
Updated chiller for sale model CW-5300 used for dual input and dual output.
Customerized made for double 150W CO2 Laser tube.
CW-5300 water cooled chiller system is high-precision compression refrigeration small water chiller,with intelligent temperature control,completed configuration,perfect protection and alarm system.
CW 5300 DIY Water Chiller Applications
One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch to appropriate operating temperature.
CW-5300AG: applied to cool a single 150W CO2 laser tube applied to a cool a single 14 KW CNC Maching center spindle.
CW-5300AI: applied to a cool single 100W laser diode, a single 30W solid-state laser or a single 100W RF laser tube; 18kw cnc router spindle.
Optional: CW-5302 dual water inlet and outlet series; heat booster; water filter.
CW 5300 B Chiller Maintenance and Working Specification
CW 5300 chiller maintenance parameters
Model |
CW-5300AG |
CW-5300BG |
CW-5300DG |
|||
Voltage |
220V |
220V |
110V |
|||
Frequency |
50Hz |
60Hz |
60Hz |
|||
Current |
0.25~4.93A |
0.25~5.03A |
0.45~7.61A |
|||
Compressor power |
0.615KW |
0.72KW |
0.68KW |
|||
0.82HP |
0.96HP |
0.91HP |
||||
Refrigeration capacity |
6274Btu/h |
7638Btu/h |
7266Btu/h |
|||
1.84KW |
2.24KW |
2.13KW |
||||
1586Kcal/h |
1931Kcal/h |
1837Kcal/h |
||||
Refrigerant |
R-22 / R-410a |
|||||
Refrigerant charge |
650g |
750g |
680g |
|||
Precision |
±0.3°C |
|||||
Reducer |
Capillary |
|||||
Protection |
Overcurrent protection for compressor, flow alarm, over temperature alarm |
|||||
Pump power |
0.03KW |
|||||
Tank capacity |
12L |
|||||
Inlet and outlet |
Rp1/2" |
|||||
Max. lift |
10M |
|||||
Max. flow |
10L/min |
|||||
N.W |
44Kg |
|||||
G.W |
50Kg |
|||||
Dimension |
59 X 38 X 74 cm (LX W X H) |
|||||
Package dimension |
67 X 51 X 93 cm ( LX W X H ) |
|||||
Note: other electric sources can be customized; heating and higher temperature control precision functions are optional.
Laser Chiller Manufactuerer
We chiller manufacturer produces laser water chillers, including cw 3000, cw 5000, cw 5200, cw 5300, cw 6000, cw 6100, cw 6200 and cooling tank for welding machine. If you request chillers, contact with me, please.
