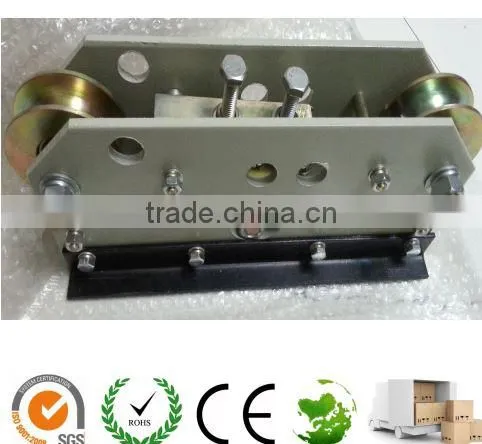

Running line tensiometer rope dynomometer linerider LSXZ for crane
General Description
Running line Tensiometer LSXZ is especially designed for measuring tension of moving steel rope.
It features in high reliability, compatibility and easy installation.The output signal is 4-20mA.
It adapt for Dia.12-21mm of steel rope. The maximum load of steel rope is 15t.
Specifications
Rated Load |
300, 500KG |
Sensitivity |
2.0±0.002mv/v; |
Total error |
±0.05%F.S |
Creep(30min) |
±0.02%F.S |
Zero balance |
±1%F.S |
Zero temperature effect |
±0.02%F.S/10℃ |
Output temperature effect |
±0.02%F.S/10℃ |
Input resistance |
400 ±10Ω |
Output resistance |
352 ±3Ω |
Insulation resistance |
≥5000MΩ |
Operating Temp Range |
-30~+70℃ |
Safe load limit |
150%F.S |
Over load limit |
200%F.S |
Recommend excitation |
24V DC |
