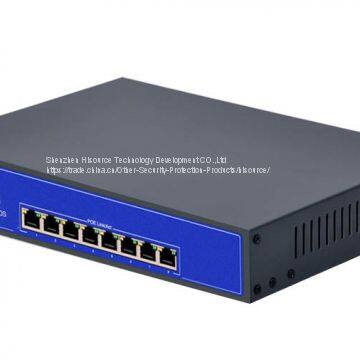

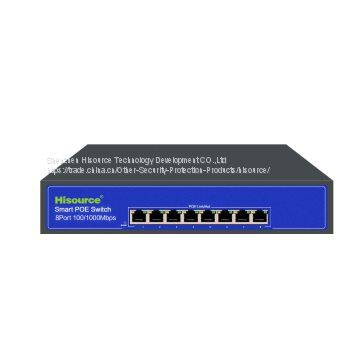

8 port full gigabit 1000Mbps PoE switches for cctv systems
Advantage
Hi-G0800GB full gigabit POE switch is mainly designed for meeting the POE power supply demand and independent innovation R&D by Hisource, using the latest high-speed Ethernet switch chip,high capability design,with highest data dealing ability to improve the frequence data transmission. Total occupied 8 gigabit POE power supply RJ45 port,8 RJ45 port all support IEEE802.3af/at standard,each port power Max.30W,whole power Max.150W. Can be detected PD electric equipment automatically and priority mechanism power supply through network cable which fit IEEE802.3AF/AT standard.
Excellent port performance
1.Supply 8 10/100Mbps adaptive high speed forwarding data packet non-lost port.
2.Each port is supported by MDI/MDIX auto flip and self negotiation.
3.Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
Excellent POE power supply performance
1.Intelligent power management 1 to 8 ports with POE intelligent recognition,the system will open IEEE802.3at standard automatically and priority mechanism port support power supply if electric equipment power over IEEE802.3af standard.
2.Comply with IEEE802.3af/at standard.
3.Detecting and recognizing PD equipment and supply power for it automatically which obey IEEE802.3AF/AT standard.
4.Each port max. power supply reached 30W.
Flexible extension
Hi-G0800GB easy to use, non-configuration, plug and play, compatibility, non-burning equipment, high-speed transmission, data packet loss, can be flexible. So that the network is subject to power line local restrictions, and saving costs.
Meet the demand of high density POE network environment. For financial, government agencies, hotels, shopping malls, campus, hospitals, small and medium enterprises to set up an economic and efficient network.
Product | 8 port full gigabit POE switch |
Model | Hi-G0800GB |
PoE port | 1 to 8 port support IEEE802.3af/at |
UP link port | Null |
SFP port | Un-support |
PoE port output power | 15.4W/30W IEEE802.3af/at |
PoE power supply pins | Both 1/2+、3/6- and 4/5+、7/8- |
Whole power | ≤150W |
Protocol standard | IEEE 802.3af/IEEE 802.3at |
PoE type | End-span |
Transmission distance | ≤200m |
Network standard | IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at |
Network Medium | 100/1000BASE-TX: 5 class and above non shielded twisted pair |
Network Signal Distance | ≤100m |
Switch capability | 16Gbps |
Forwarding Mode | Store and forward |
Forwarding Rate | 100Mbps:14880pps 1000Mbps:14800pps |
MAC Address | MAC address table 8K |
Port function | Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
Indicator | Each port occupied 1 LINK/ACT.1000Mbps, POE Status Indicator, Whole power indicator |
Working Environment | Working Temperature：-10°-- 55°C |
Input power | AC110-240V 50/60HZ |
Whole power | Max.150W |
Weight | 1.8kg |
Size | 270mm*180mm*44mm(L*W*H) |
