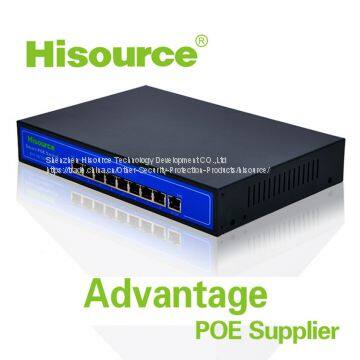

10/100Mpbs 8 port poe switch Fast Ethernet RJ45 LAN MDI Half-duplex&Full-duplex power supply poe switch
Advantage
Occupied 8 POE power supply RJ45 port. All of 8 RJ45 ports support IEEE802.3AF/AT standard power supply, each port max. power reached 30W, max. whole power reached 150W.
Excellent port performance
1.Supply 8 10/100Mpbs adaptive high speed forwarding data packet non-lost port.
2.Supply 1 10/100Mbps RJ45, each port is supported by MDI/MDIX auto flip and self negotiation.
3.Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
Excellent POE power supply performance
1.Intelligent power management 1 to 8 ports with POE intelligent recognition, such as the system will open IEEE802.3 at standard automatically and priority mechanism port support power supply if electric equipment power over IEEE802.3af standard.
2.Comply with IEEE802.3af/at standard.
3.Detecting and recognizing PD equipment and supply power for it automatically which obey IEEE802.3AF/AT standard.
4. Each port max. power supply reached 30W.
Flexible extension
Easy to use, non-configuration, plug and play, compatibility, non-burning equipment, high-speed transmission, data packet loss, can be flexible. So that the network is subject to power line local restrictions, and saving costs.
Meet the demand of high density POE network environment. For financial, government agencies, hotels, shopping malls, campus, hospitals, small and medium enterprises to set up an economic and efficient network.
Product | 8 Port POE Power Supply Switch |
Model | Hi-F0810FB |
POE Port | 1 to 8 port support IEEE802.3AF/AT standard |
SFP Port | Nonsupport |
POE Port Output Power | 15.4W/30W IEEE802.3af/at |
Power Supply Method | Both 1/2+、3/6- and 4/5+、7/8- |
Whole Power | ≤150W |
POE Standard | IEEE 802.3af/IEEE 802.3at |
POE Type | End-span |
Power Transmission Distance | ≤200m |
Network Standard | IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at |
Network Mode | 10/100BASE-TX: 5 class and above non shielded twisted pair |
Data Transmission Distance | ≤150m |
Switch Capability | 1.6Gbps |
Forwarding Mode | Store and forward |
Forwarding Rate | 10BASE-T:14880PPS/port 100BASE-tx：14800pps/port |
MAC Address | MAC Address table 1K |
Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
LED Indicator | Each port occupied 1 LINK/ACT.100Mbps, POE Status Indicator, Whole power indicator |
Working Environment | Working temperature：-10°-- 55°C |
Input Power | AC100-240V 50/60HZ |
Whole Power | ≤150W |
Weight | 1.7kg |
Size | 270mm*180mm*44mm(L*W*H) |
