Help Center7.5KN*1 Hydraulic Power Tensioner
Related Products

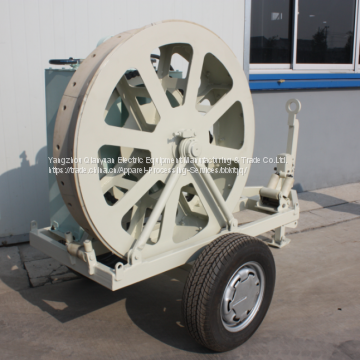

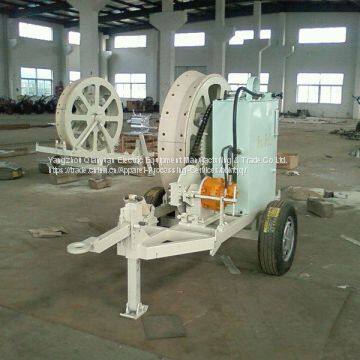

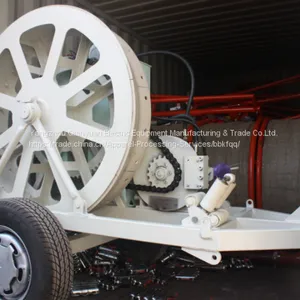

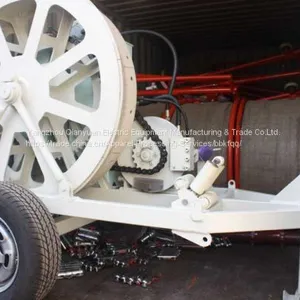

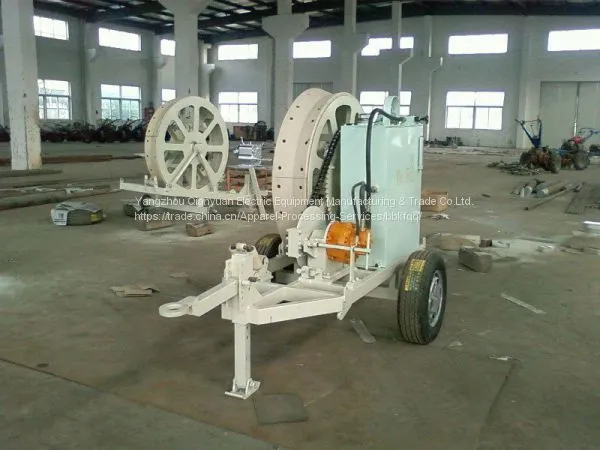

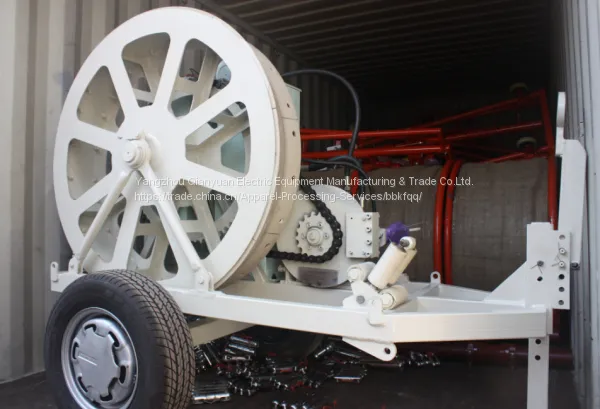

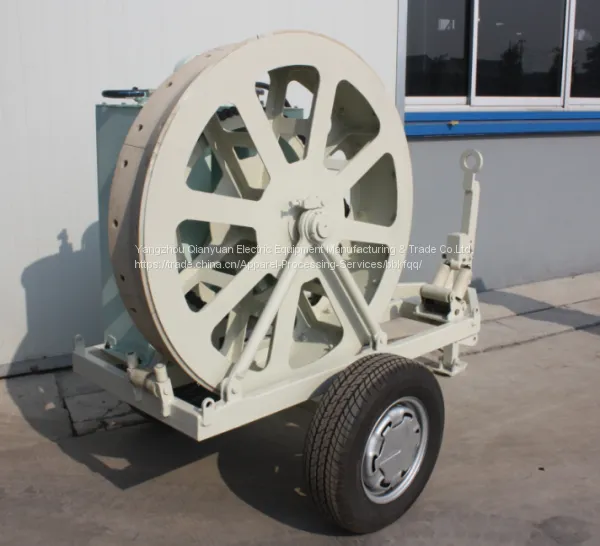

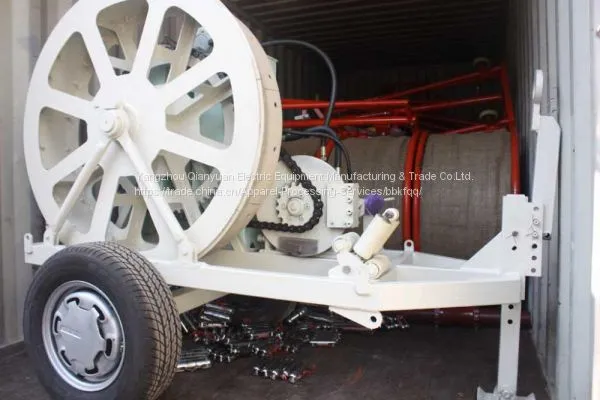

7.5KN*1 Hydraulic power tensioner
7.5KN*1 Hydraulic tension machine ,7.5KN*1 German Rexroth motor Cable wire tensioner,7.5KN*1 Cable rope tensioner,7.5KN*1 automatic steel wire tensioner,7.5KN*1 Hydraulic tensioner
Applied for tension stringing of the transmission line conductors and ground cables, and ADSS, OPGW optical cables.
1.Main parts Rexroth Wika
2.Max tension 1X7.5kN
3.No engine
4.Wheel 1100mm
TY1*7.5 KN Hydraulic cable tension machine
Performance parameter
Max continuous tension: 1*7.5KN
Max speed:40m/min
Structure parameter
Tension wheel diameter:1100mm
Max conductor diameter :24mm
Groove number:5
Total weight:850kg
overall dimension (length*width*height):2400*1630*1830mm
Main comfigurations
Main motor: Tianjin Parker
Speed reducer :German Rexroth
Hydraulic meter: German WIKA
Product No.:10570-1
| Performance parameter | Max continuous tension | 1*7.5KN |
| Max speed | 40m/min | |
| Structure parameter | Tension wheel diameter | 1100mm |
| Max conductor diameter | 24mm | |
| Groove number | 5 | |
| Main comfigurations | Engine | no |
| Main motor | Tianjin Parker | |
| Speed reducer | German Rexroth |
