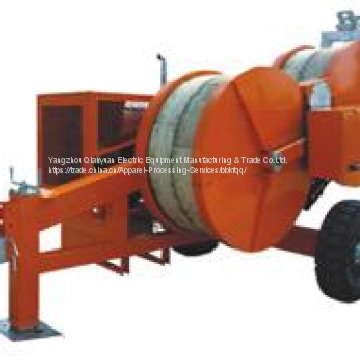

Electric Power line Hydraulic Puller
Hydraulic Self-propelled Conductor Puller
Description:
A. They are widely used for stringing the conductors & cables(OPGW,ADSS,500kv traction rope, ACSR series, etc.) in the overhead line stringing construction.
B. This machine has a set of tension early warning system, which can automatically adjust the speed according to the undue load or friction produced on the line and can keep the tension at setting value.
C. Tension or pulling force can be preset, spring applied brake, reliable overhead protection mechanism, easy to operate.
Main configurations:
Engine : CUMMINS made by joint venture in China
Main hydraulic motor : REXROTH in German
Main hydraulic pump : REXROTH in German
Speed Reducer: REXROTH in German
Hydraulic valve(Italy ATOS); pipeline system and meter ( made in Italy or German WIKA)
| Product No. | Model | Max pulling force (KN) | Max Continuous pulling force (KN) | Corresponding speed (km/h) | Max continuous pulling speed (km/h) | Puller wheel diameter Dia Φ(mm)) | Groove number | Max steel wire rope DiaΦ(mm) | Max steel ree Dia Φ(mm) | Engine Power (KW/RPM) | Electrical System | Dimensions (mm) | Weight (kg) |
| 10552 | QYT280KN | 280 | 250 | 2.5 | 5 | 960 | 11 | 38 | 1600 | 298/2100(Cummins) | 24 | 5800×2500×2850 | 12800 |
| 10553 | QYT180KN | 180 | 150 | 2.5 | 5 | 700 | 10 | 27 | 1400 | 220/2200(Cummins) | 24 | 4300×2360×2380 | 6800 |
| 10554 | QYT90KN | 90 | 80 | 2.5 | 5 | 540 | 8 | 21 | 1600 | 118/2500(Cummins) | 24 | 4000*2200*2100 | 4000 |
| 10555 | QYT60KN | 60 | 50 | 2.5 | 5 | 450 | 7 | 18 | 1400 | 77/2800 (Cummins) | 24 | 3800×2100×2300 | 3500 |
| 10556 | QYT40KN | 40 | 35 | 2.5 | 5 | 450 | 7 | 16 | 1400 | 77/2800 (Cummins) | 24 | 3800×2100×2300 | 3500 |
| 10557 | QYT30KN | 30 | 25 | 2.5 | 5 | 300 | 7 | 13 | 1400 | 38/2200(Deutz air-cooled engine) | 24 | 3200x1600x2000 | 1500 |
